| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52612cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52612cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,038,960,000 | 65,589,120 |
| Size | 990.8 MB | 62.6 MB |
| Events in quadrant A | 3,076,072 | 628,186 |
| Events in quadrant B | 11,952,076 | 333,744 |
| Events in quadrant C | 14,758,498 | 104,920 |
| Events in quadrant D | 8,181,300 | 474,387 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13679 | 1 |
| B | 0 | 39911 | 6 |
| C | 0 | 48181 | 1 |
| D | 0 | 28793 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6365 | 48 | 0.754124% |
| B | 6365 | 3450 | 54.202671% |
| C | 6365 | 5351 | 84.069128% |
| D | 6365 | 1278 | 20.078555% |

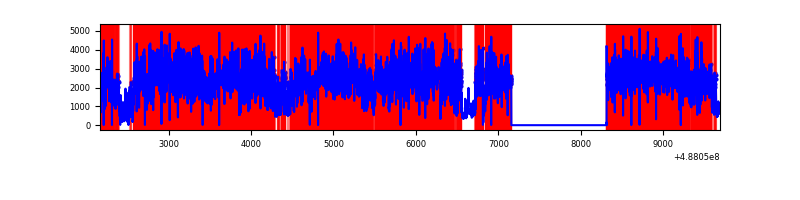

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7520 | 6366 | 11 | 11 | 0.15% | 0.17% |  |
| B | 7520 | 6366 | 2894 | 2894 | 38.48% | 45.46% |  |
| C | 7520 | 6365 | 4613 | 4613 | 61.34% | 72.47% |  |
| D | 7520 | 6366 | 1168 | 1168 | 15.53% | 18.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 144833 | 848.72 | 674 | 657 | 169.9 |
| A | 4 | 249 | 64734 | 377.2 | 674 | 657 | 169.9 |
| A | 4 | 3 | 30351 | 174.8 | 674 | 657 | 169.9 |
| B | 10 | 128 | 7096434 | 66272.83 | 507 | 491 | 107.1 |
| B | 10 | 254 | 2171864 | 20279.62 | 507 | 491 | 107.1 |
| B | 10 | 44 | 161887 | 1507.36 | 507 | 491 | 107.1 |
| C | 15 | 248 | 13220905 | 179609.86 | 255 | 251 | 73.6 |
| C | 13 | 3 | 253525 | 3440.87 | 255 | 251 | 73.6 |
| C | 2 | 12 | 45849 | 619.47 | 255 | 251 | 73.6 |
| D | 2 | 62 | 1837552 | 10509.43 | 609 | 583 | 174.8 |
| D | 8 | 176 | 1028442 | 5880.45 | 609 | 583 | 174.8 |
| D | 6 | 42 | 754856 | 4315.25 | 609 | 583 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

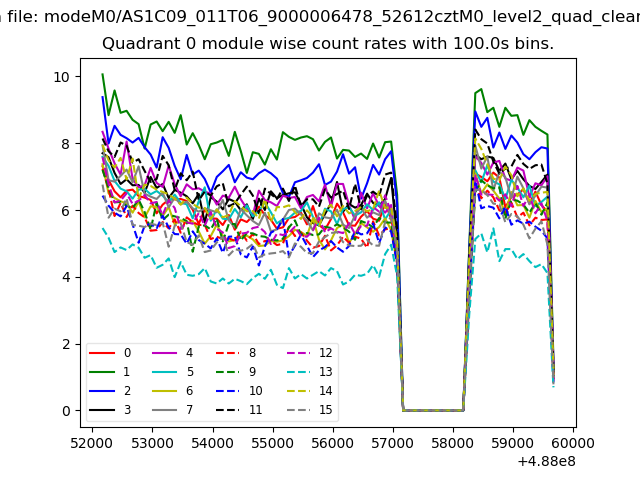

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

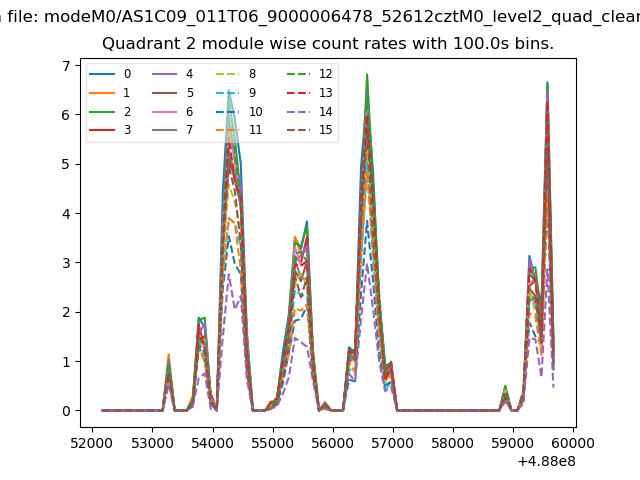

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

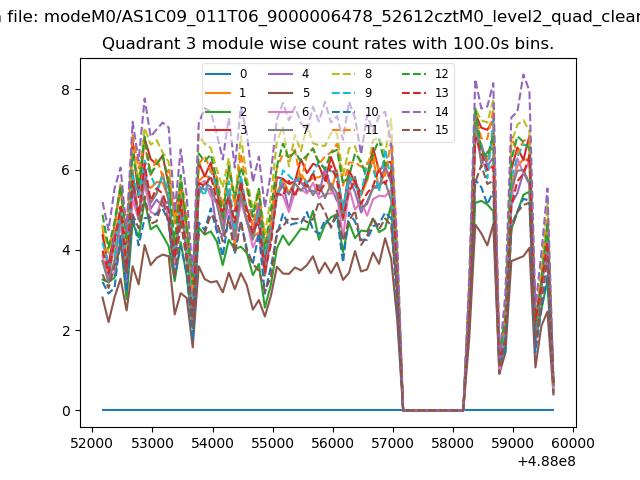

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

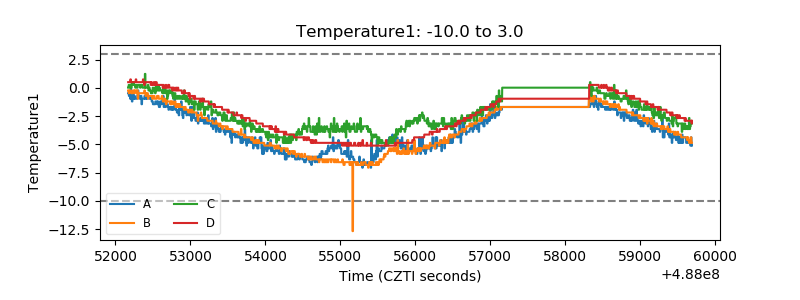

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

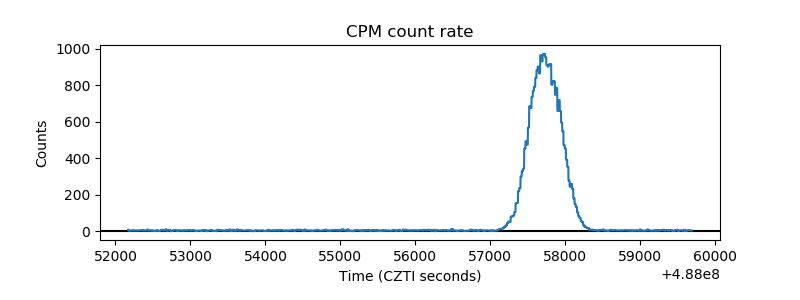

| _CPM_Rate |  |

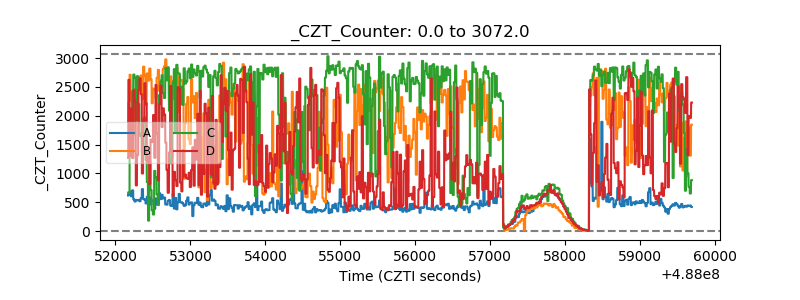

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

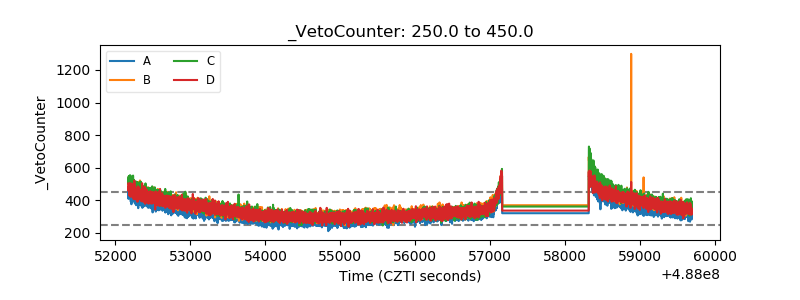

| Veto Counter |  |
