| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006482_52860cztM0_level2.fits | modeM0/AS1C09_011T08_9000006482_52860cztM0_level2_quad_clean.evt |
| Size (bytes) | 851,716,800 | 80,916,480 |
| Size | 812.3 MB | 77.2 MB |
| Events in quadrant A | 9,903,519 | 451,818 |
| Events in quadrant B | 10,092,570 | 469,125 |
| Events in quadrant C | 4,606,672 | 559,440 |
| Events in quadrant D | 6,428,746 | 521,261 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33802 | 1 |
| B | 0 | 34465 | 1 |
| C | 0 | 18248 | 1 |
| D | 0 | 23533 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6427 | 2345 | 36.486697% |
| B | 6428 | 2447 | 38.067828% |
| C | 6428 | 575 | 8.945240% |
| D | 6427 | 834 | 12.976505% |

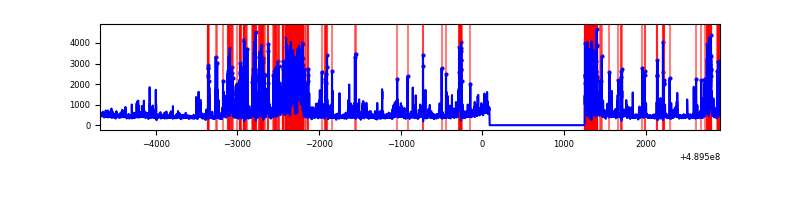

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

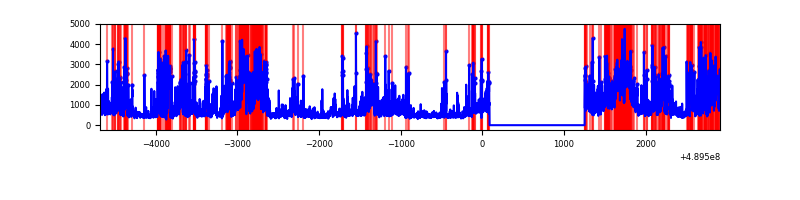

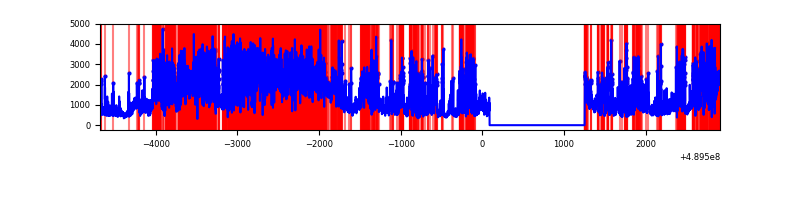

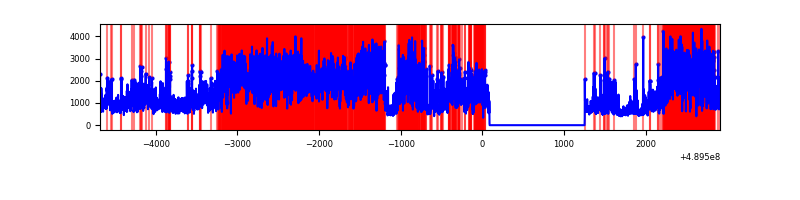

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6428 | 1947 | 1947 | 25.65% | 30.29% |  |
| B | 7593 | 6429 | 1917 | 1917 | 25.25% | 29.82% |  |
| C | 7593 | 6429 | 403 | 403 | 5.31% | 6.27% |  |
| D | 7592 | 6428 | 684 | 684 | 9.01% | 10.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 4218917 | 27762.63 | 608 | 594 | 151.9 |
| A | 3 | 62 | 2311349 | 15208.09 | 608 | 594 | 151.9 |
| A | 15 | 174 | 367287 | 2413.37 | 608 | 594 | 151.9 |
| B | 8 | 3 | 7003174 | 55563.46 | 604 | 585 | 126.0 |
| B | 0 | 213 | 213533 | 1689.68 | 604 | 585 | 126.0 |
| B | 4 | 81 | 89874 | 708.48 | 604 | 585 | 126.0 |
| C | 15 | 224 | 1164973 | 6538.73 | 642 | 635 | 178.1 |
| C | 7 | 80 | 297674 | 1668.12 | 642 | 635 | 178.1 |
| C | 13 | 3 | 208024 | 1164.66 | 642 | 635 | 178.1 |
| D | 8 | 176 | 1291253 | 7046.25 | 642 | 615 | 183.2 |
| D | 2 | 37 | 1177142 | 6423.26 | 642 | 615 | 183.2 |
| D | 12 | 2 | 461343 | 2515.35 | 642 | 615 | 183.2 |

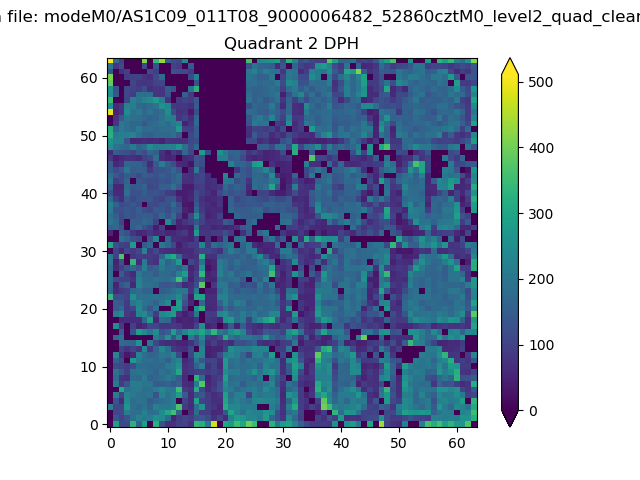

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

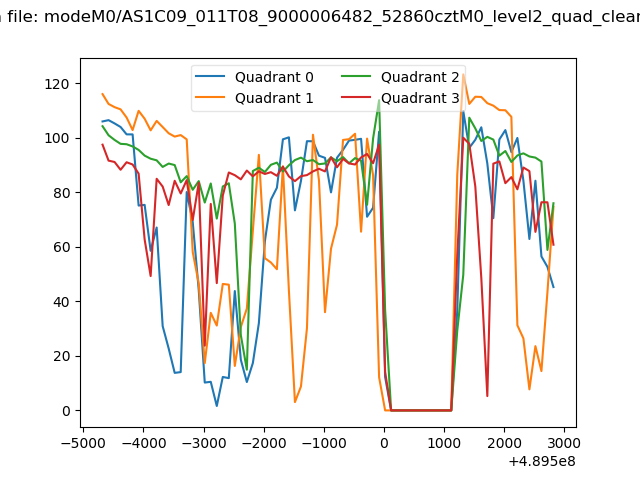

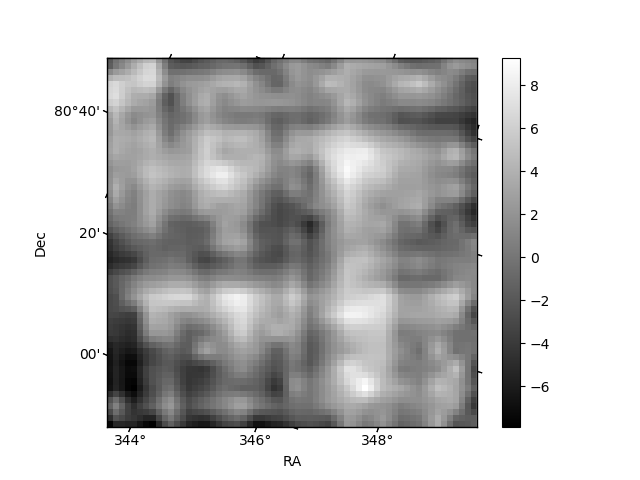

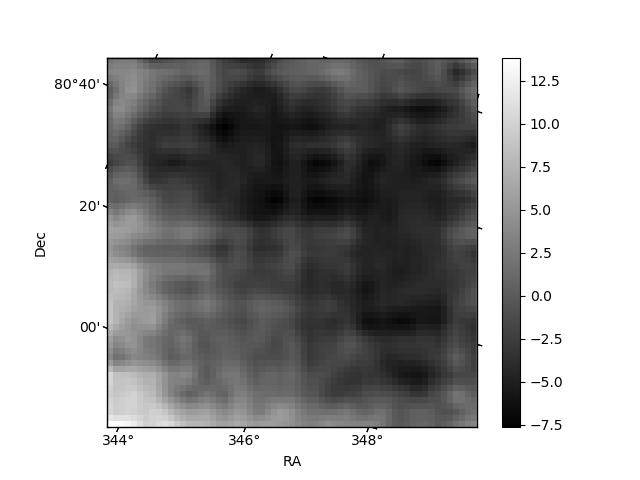

| Plot type | Count rate plots | Images |
|---|---|---|

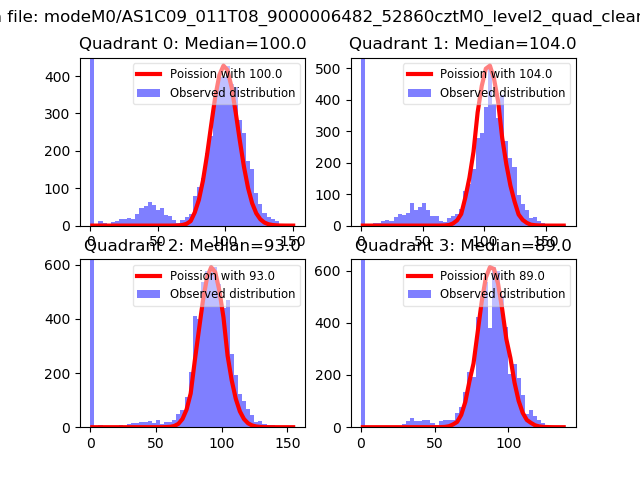

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

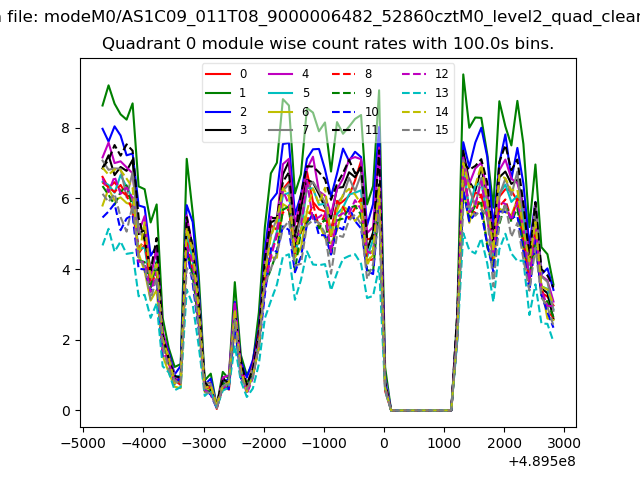

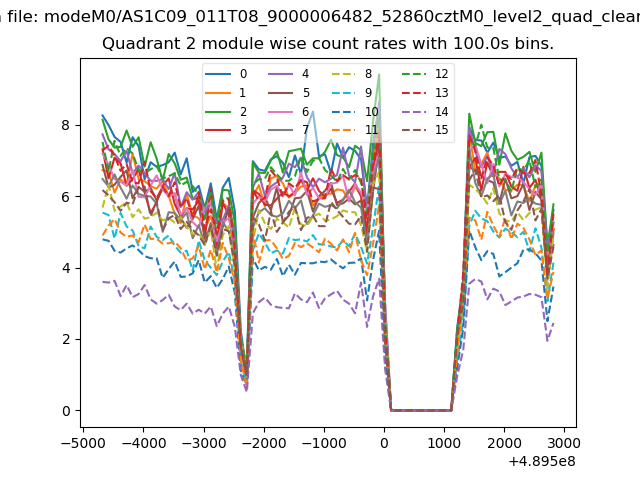

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

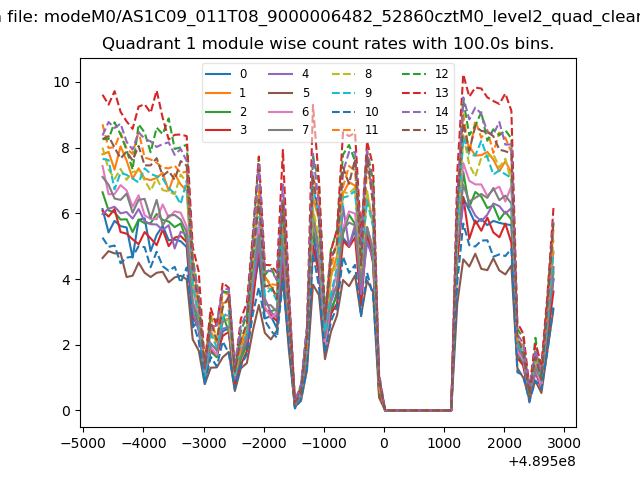

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

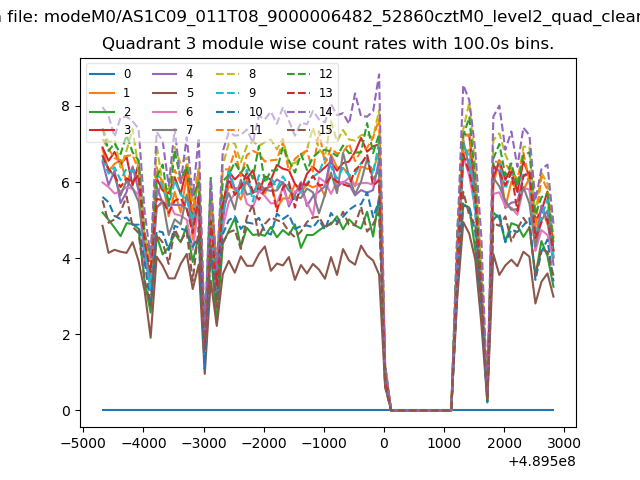

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

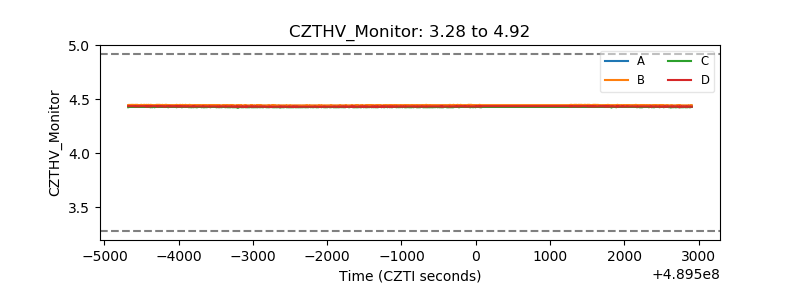

| CZT HV Monitor |  |

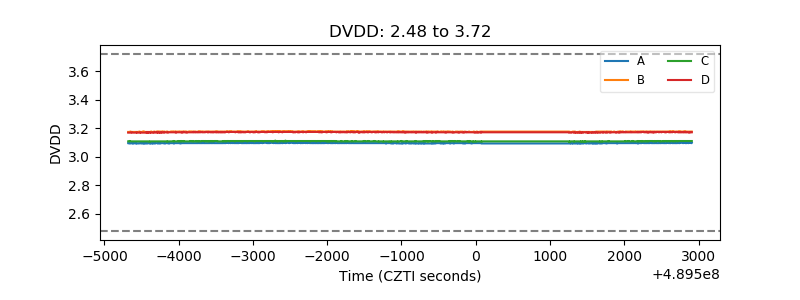

| D_VDD |  |

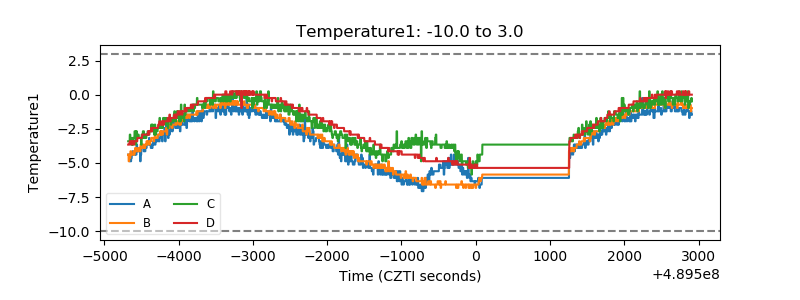

| Temperature 1 |  |

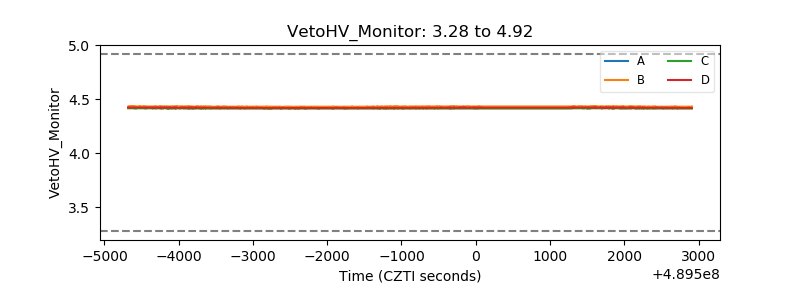

| Veto HV Monitor |  |

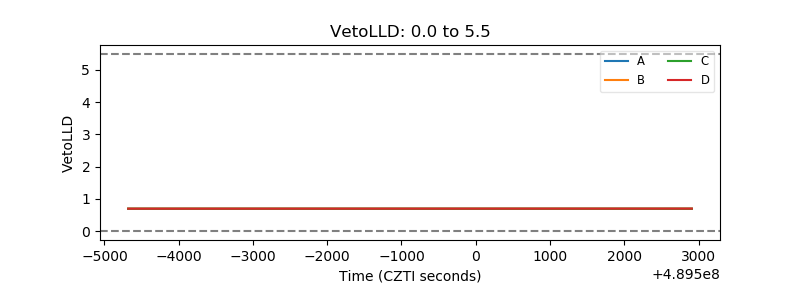

| Veto LLD |  |
| Alpha Counter |  |

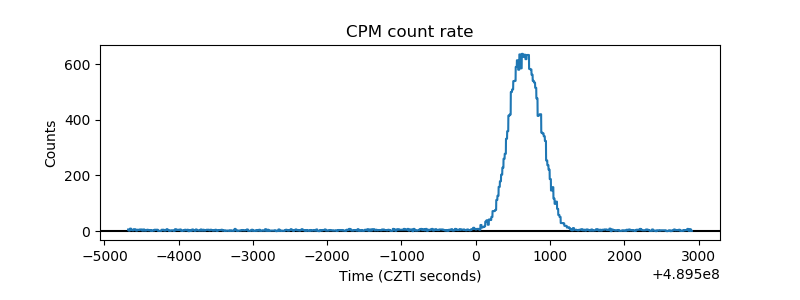

| _CPM_Rate |  |

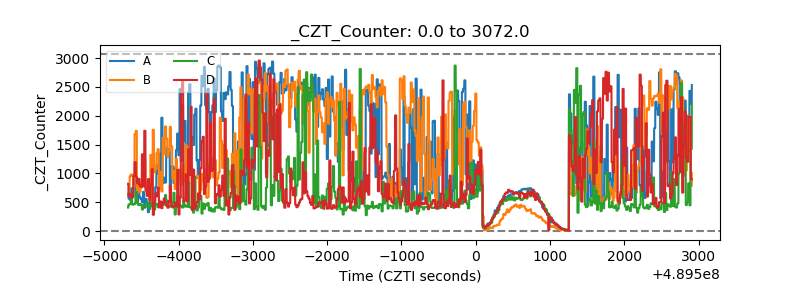

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

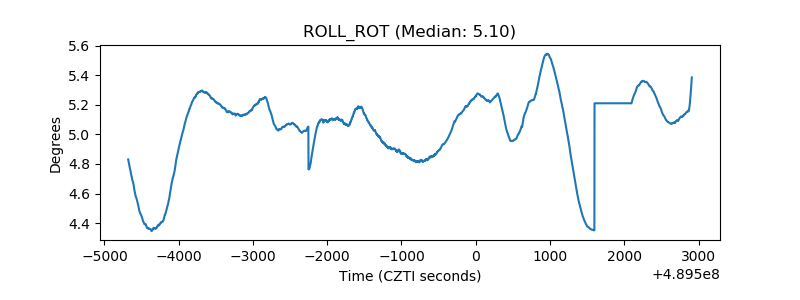

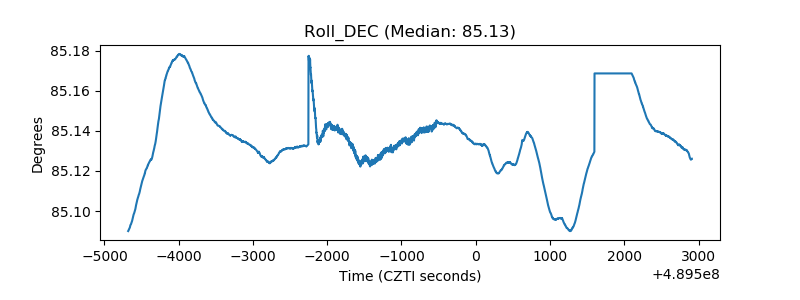

| _ROLL_ROT |  |
| _Roll_DEC |  |

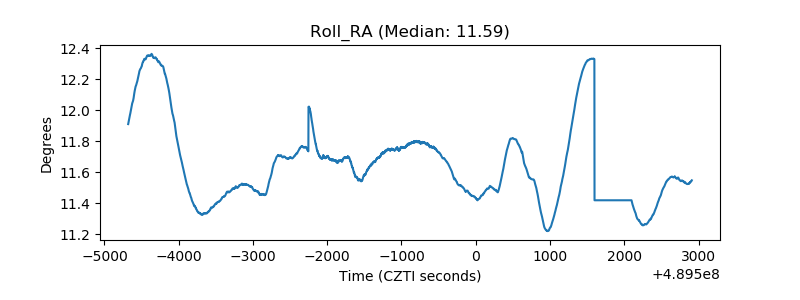

| _Roll_RA |  |

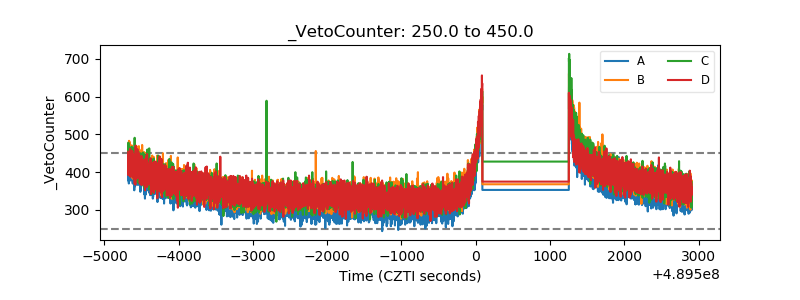

| Veto Counter |  |
