| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006482_52887cztM0_level2.fits | modeM0/AS1C09_011T08_9000006482_52887cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,763,520 | 81,676,800 |
| Size | 596.8 MB | 77.9 MB |
| Events in quadrant A | 9,019,762 | 444,077 |
| Events in quadrant B | 4,004,409 | 604,312 |
| Events in quadrant C | 4,642,458 | 519,316 |
| Events in quadrant D | 5,040,579 | 493,138 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30906 | 1 |
| B | 0 | 15982 | 1 |
| C | 0 | 17908 | 1 |
| D | 0 | 19062 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5896 | 1665 | 28.239484% |
| B | 5897 | 161 | 2.730202% |
| C | 5897 | 424 | 7.190097% |
| D | 5897 | 566 | 9.598101% |

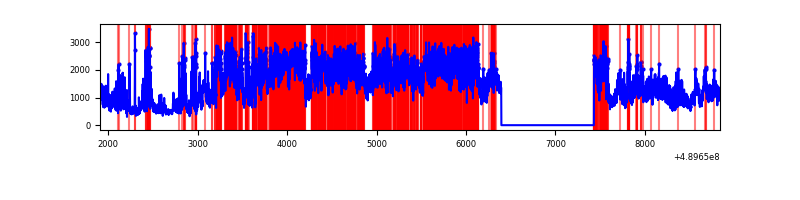

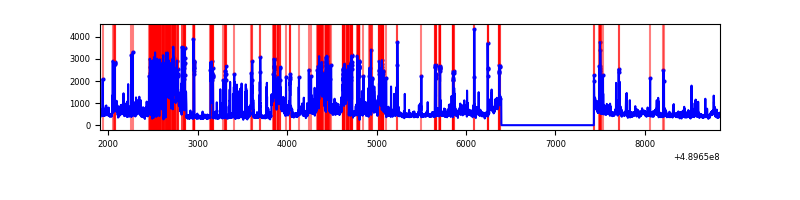

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6931 | 5896 | 1570 | 1570 | 22.65% | 26.63% |  |
| B | 6932 | 5897 | 82 | 82 | 1.18% | 1.39% |  |
| C | 6932 | 5898 | 411 | 411 | 5.93% | 6.97% |  |
| D | 6932 | 5898 | 562 | 562 | 8.11% | 9.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 5129817 | 35036.35 | 580 | 566 | 146.4 |
| A | 12 | 17 | 359242 | 2450.01 | 580 | 566 | 146.4 |
| A | 15 | 174 | 314219 | 2142.47 | 580 | 566 | 146.4 |
| B | 8 | 3 | 741453 | 5704.03 | 612 | 594 | 129.9 |
| B | 1 | 255 | 302569 | 2324.97 | 612 | 594 | 129.9 |
| B | 7 | 0 | 179727 | 1379.18 | 612 | 594 | 129.9 |
| C | 7 | 80 | 1548995 | 9644.17 | 583 | 578 | 160.6 |
| C | 2 | 12 | 151204 | 938.16 | 583 | 578 | 160.6 |
| C | 14 | 254 | 144165 | 894.32 | 583 | 578 | 160.6 |
| D | 8 | 176 | 838228 | 4929.12 | 592 | 565 | 169.9 |
| D | 11 | 176 | 641167 | 3769.54 | 592 | 565 | 169.9 |
| D | 3 | 224 | 442480 | 2600.39 | 592 | 565 | 169.9 |

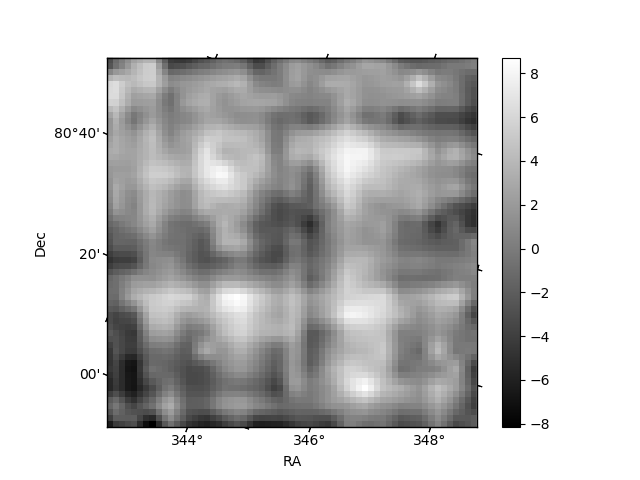

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

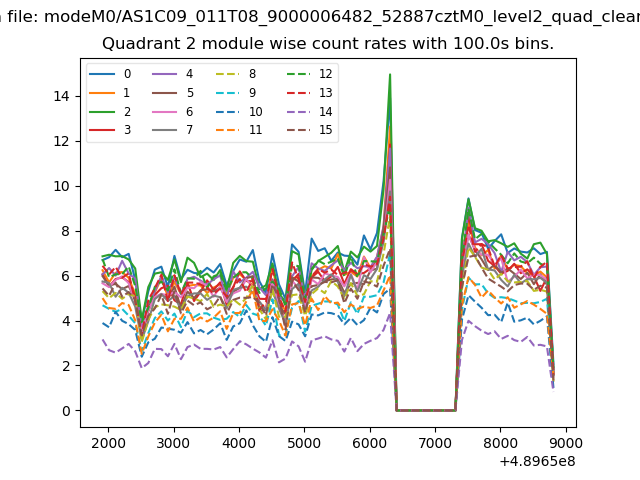

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

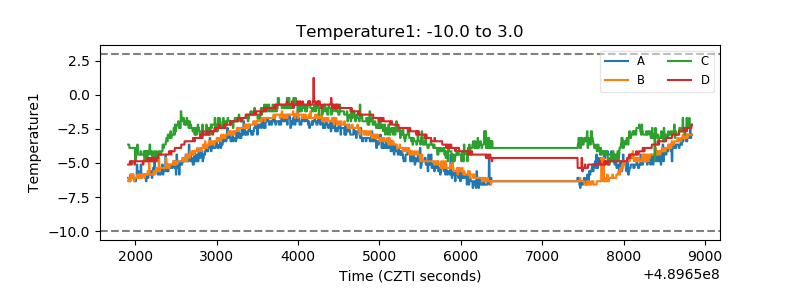

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

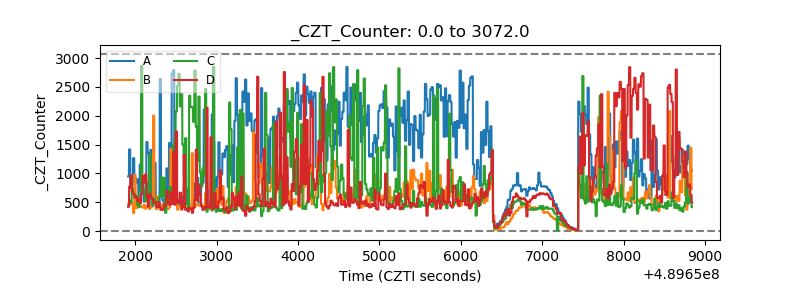

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

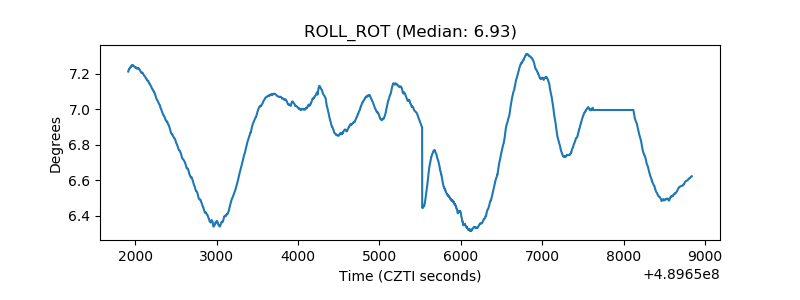

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

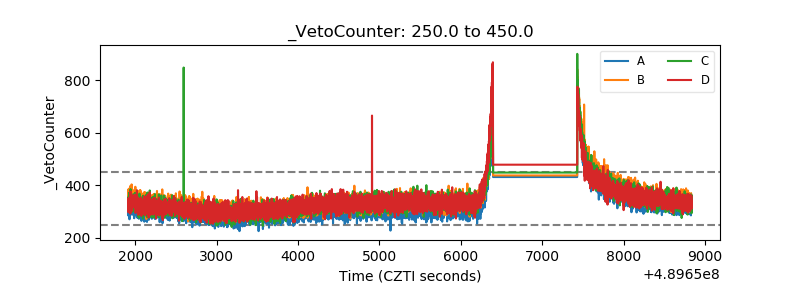

| Veto Counter |  |
