| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006484_52932cztM0_level2.fits | modeM0/AS1C09_011T06_9000006484_52932cztM0_level2_quad_clean.evt |
| Size (bytes) | 895,965,120 | 64,192,320 |
| Size | 854.5 MB | 61.2 MB |
| Events in quadrant A | 14,948,439 | 26,609 |
| Events in quadrant B | 3,179,190 | 629,766 |
| Events in quadrant C | 5,362,644 | 518,798 |
| Events in quadrant D | 9,208,796 | 347,461 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48489 | 1 |
| B | 0 | 13669 | 1 |
| C | 0 | 20088 | 1 |
| D | 0 | 31458 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6025 | 5815 | 96.514523% |
| B | 6026 | 124 | 2.057750% |
| C | 6026 | 549 | 9.110521% |
| D | 6026 | 2423 | 40.209094% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7144 | 6024 | 5187 | 5187 | 72.61% | 86.11% |  |
| B | 7146 | 6027 | 22 | 22 | 0.31% | 0.37% |  |
| C | 7146 | 6027 | 468 | 468 | 6.55% | 7.77% |  |
| D | 7146 | 6027 | 1884 | 1884 | 26.36% | 31.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 13719822 | 211534.28 | 254 | 248 | 64.9 |
| A | 5 | 241 | 38366 | 587.72 | 254 | 248 | 64.9 |
| A | 15 | 174 | 29597 | 452.52 | 254 | 248 | 64.9 |
| B | 8 | 3 | 178507 | 1319.05 | 632 | 611 | 134.9 |
| B | 10 | 254 | 169502 | 1252.28 | 632 | 611 | 134.9 |
| B | 1 | 255 | 117008 | 863.05 | 632 | 611 | 134.9 |
| C | 7 | 80 | 1599144 | 9875.82 | 589 | 584 | 161.9 |
| C | 15 | 254 | 287668 | 1773.59 | 589 | 584 | 161.9 |
| C | 4 | 5 | 261546 | 1612.21 | 589 | 584 | 161.9 |
| D | 12 | 0 | 2707510 | 19150.5 | 497 | 476 | 141.4 |
| D | 8 | 176 | 2463129 | 17421.67 | 497 | 476 | 141.4 |
| D | 10 | 172 | 616348 | 4356.89 | 497 | 476 | 141.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

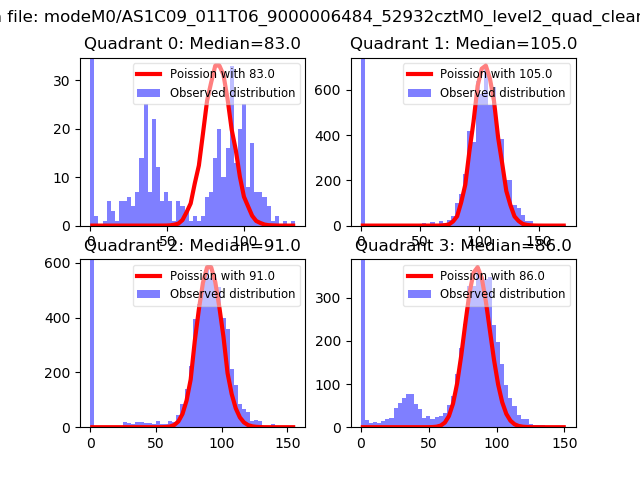

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

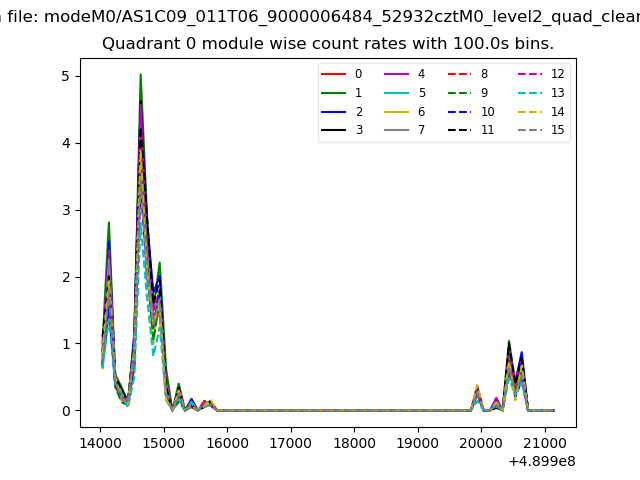

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

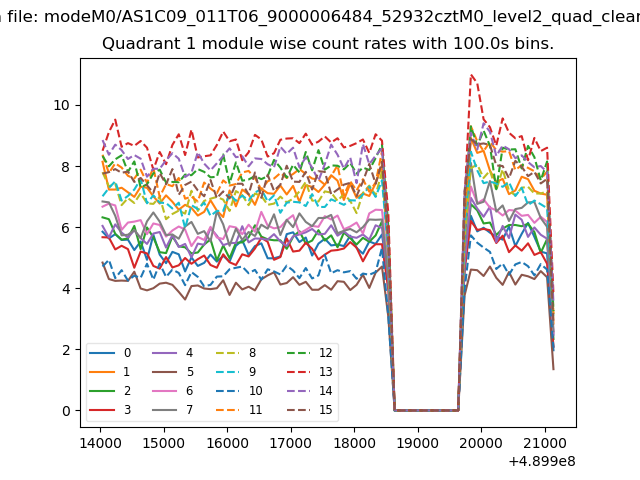

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

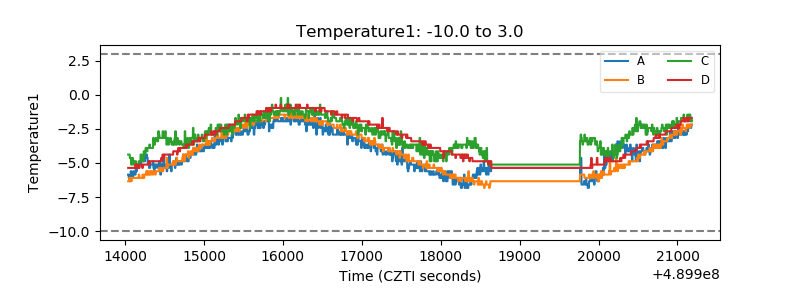

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

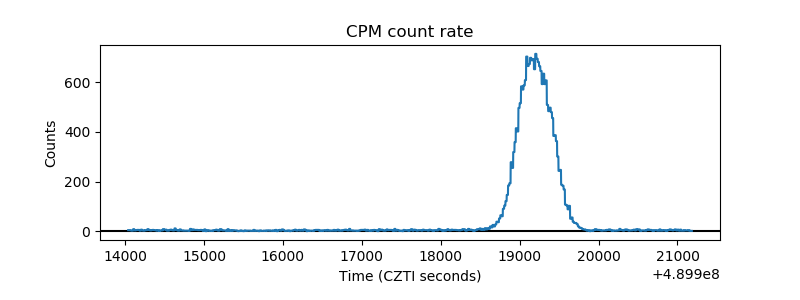

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

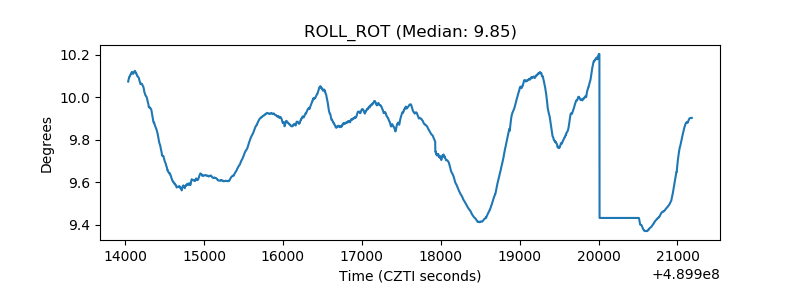

| _ROLL_ROT |  |

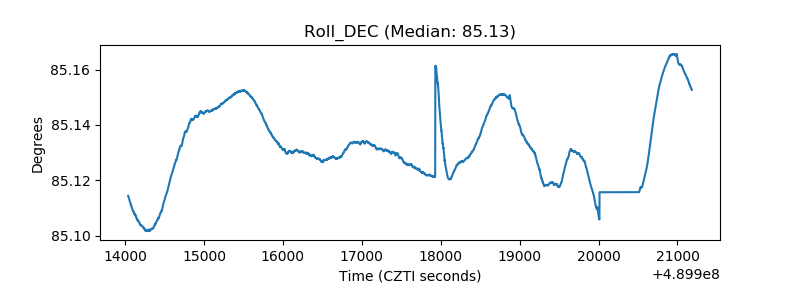

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
