| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000006486_52935cztM0_level2.fits | modeM0/AS1A13_003T01_9000006486_52935cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,006,744,320 | 75,165,120 |
| Size | 960.1 MB | 71.7 MB |
| Events in quadrant A | 17,221,954 | 21,868 |
| Events in quadrant B | 3,591,538 | 716,514 |
| Events in quadrant C | 7,151,198 | 547,057 |
| Events in quadrant D | 8,765,516 | 507,245 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55966 | 1 |
| B | 0 | 15514 | 1 |
| C | 0 | 26043 | 1 |
| D | 0 | 30888 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6932 | 6773 | 97.706290% |
| B | 6933 | 201 | 2.899178% |
| C | 6933 | 1093 | 15.765181% |
| D | 6933 | 1364 | 19.674023% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7836 | 6931 | 6051 | 6051 | 77.22% | 87.30% |  |
| B | 7838 | 6934 | 46 | 46 | 0.59% | 0.66% |  |
| C | 7838 | 6934 | 828 | 828 | 10.56% | 11.94% |  |
| D | 7838 | 6934 | 1117 | 1117 | 14.25% | 16.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 15704873 | 207527.05 | 301 | 295 | 75.7 |
| A | 4 | 254 | 129855 | 1712.06 | 301 | 295 | 75.7 |
| A | 13 | 248 | 53643 | 704.96 | 301 | 295 | 75.7 |
| B | 1 | 255 | 296141 | 1828.6 | 759 | 733 | 161.5 |
| B | 4 | 81 | 52596 | 321.03 | 759 | 733 | 161.5 |
| B | 10 | 247 | 46406 | 282.72 | 759 | 733 | 161.5 |
| C | 15 | 224 | 1498642 | 7808.01 | 699 | 690 | 191.8 |
| C | 9 | 38 | 930545 | 4846.83 | 699 | 690 | 191.8 |
| C | 15 | 178 | 618301 | 3219.27 | 699 | 690 | 191.8 |
| D | 8 | 176 | 2407422 | 12186.62 | 693 | 662 | 197.5 |
| D | 6 | 42 | 1019626 | 5159.52 | 693 | 662 | 197.5 |
| D | 15 | 78 | 497997 | 2518.25 | 693 | 662 | 197.5 |

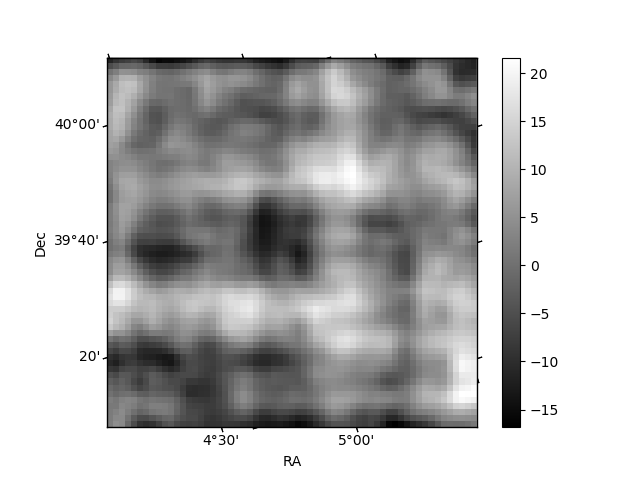

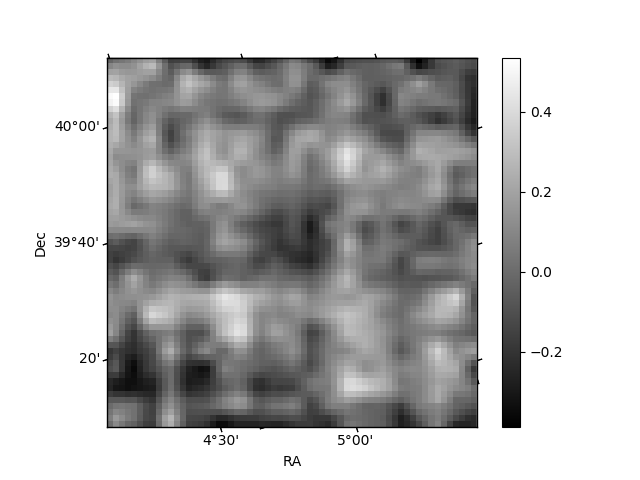

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

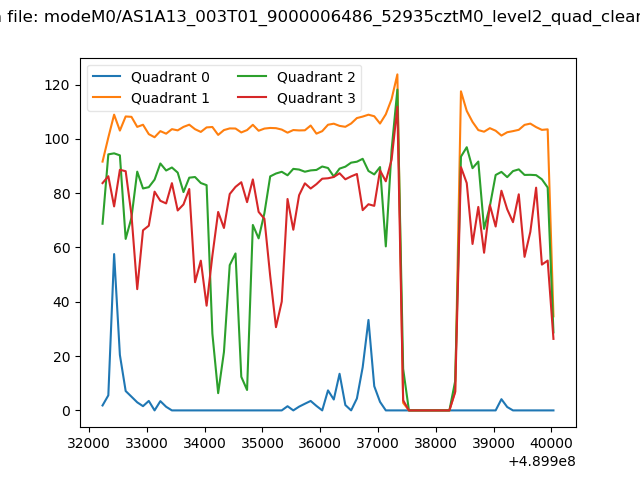

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

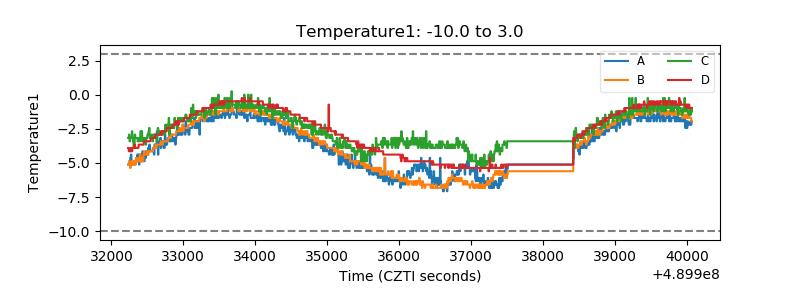

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

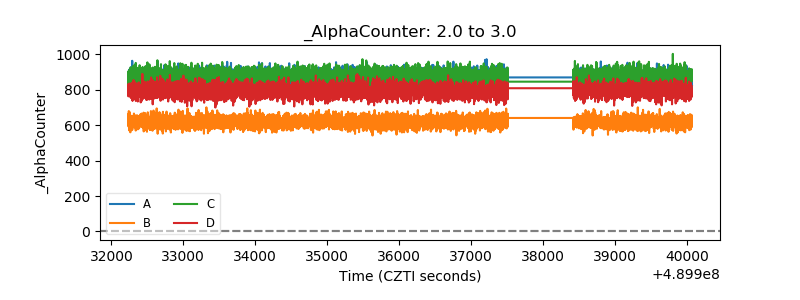

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
