| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006488_53102cztM0_level2.fits | modeM0/AS1C09_011T07_9000006488_53102cztM0_level2_quad_clean.evt |
| Size (bytes) | 968,034,240 | 76,904,640 |
| Size | 923.2 MB | 73.3 MB |
| Events in quadrant A | 15,857,531 | 118,674 |
| Events in quadrant B | 3,588,291 | 704,409 |
| Events in quadrant C | 10,630,535 | 438,197 |
| Events in quadrant D | 5,229,617 | 591,849 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51717 | 2 |
| B | 0 | 15585 | 2 |
| C | 0 | 36325 | 5 |
| D | 0 | 20550 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6817 | 5822 | 85.404137% |
| B | 6817 | 101 | 1.481590% |
| C | 6816 | 2510 | 36.825117% |
| D | 6816 | 565 | 8.289319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7651 | 6816 | 5511 | 5511 | 72.03% | 80.85% |  |
| B | 7652 | 6818 | 43 | 43 | 0.56% | 0.63% |  |
| C | 7651 | 6816 | 2209 | 2209 | 28.87% | 32.41% |  |
| D | 7651 | 6817 | 464 | 464 | 6.06% | 6.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 13138225 | 130943.66 | 383 | 372 | 100.3 |
| A | 12 | 80 | 557473 | 5552.57 | 383 | 372 | 100.3 |
| A | 0 | 8 | 245451 | 2442.68 | 383 | 372 | 100.3 |
| B | 14 | 167 | 118103 | 774.06 | 713 | 690 | 151.7 |
| B | 4 | 81 | 117783 | 771.95 | 713 | 690 | 151.7 |
| B | 0 | 213 | 91195 | 596.66 | 713 | 690 | 151.7 |
| C | 9 | 38 | 4914517 | 29209.83 | 604 | 598 | 168.2 |
| C | 15 | 224 | 1749822 | 10397.92 | 604 | 598 | 168.2 |
| C | 15 | 157 | 458729 | 2723.27 | 604 | 598 | 168.2 |
| D | 10 | 172 | 1325560 | 6571.82 | 695 | 665 | 201.6 |
| D | 0 | 5 | 237499 | 1174.76 | 695 | 665 | 201.6 |
| D | 2 | 249 | 216455 | 1070.37 | 695 | 665 | 201.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

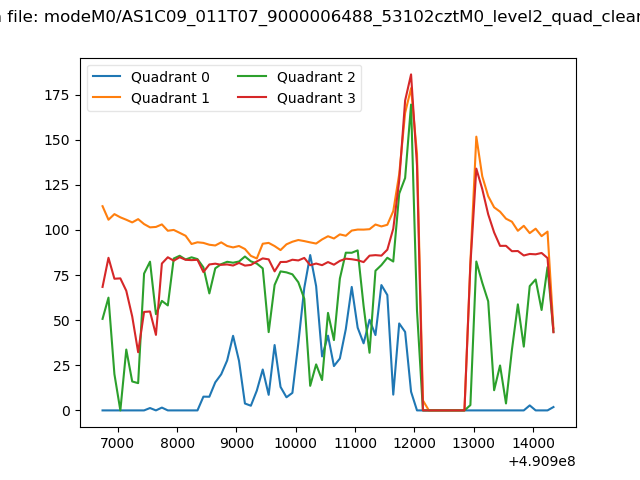

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

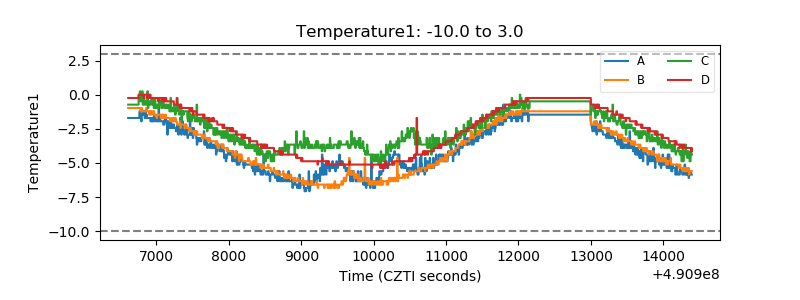

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

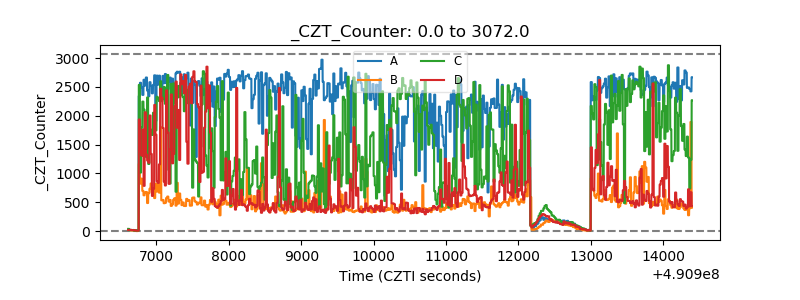

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

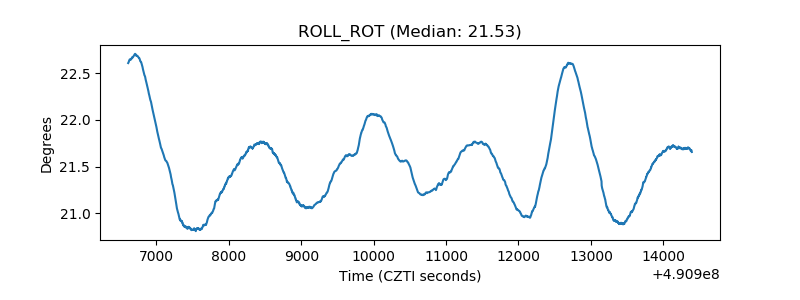

| _ROLL_ROT |  |

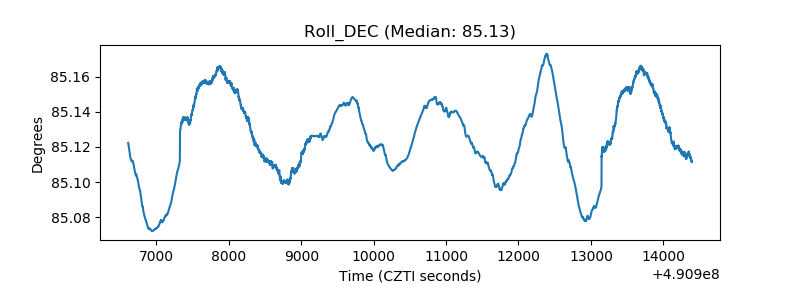

| _Roll_DEC |  |

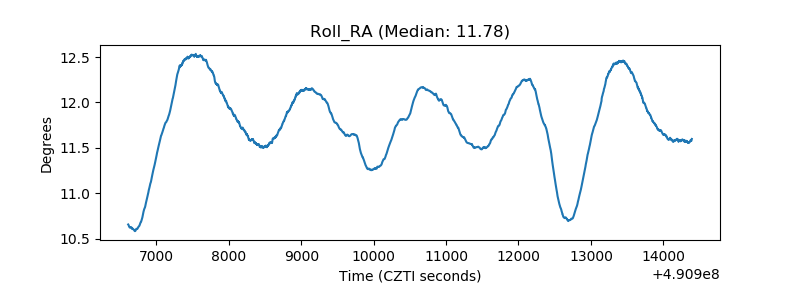

| _Roll_RA |  |
| Veto Counter |  |
