| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006488_53105cztM0_level2.fits | modeM0/AS1C09_011T07_9000006488_53105cztM0_level2_quad_clean.evt |
| Size (bytes) | 851,091,840 | 81,233,280 |
| Size | 811.7 MB | 77.5 MB |
| Events in quadrant A | 15,000,340 | 166,695 |
| Events in quadrant B | 3,745,433 | 704,218 |
| Events in quadrant C | 8,219,295 | 514,981 |
| Events in quadrant D | 4,014,895 | 601,960 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49063 | 2 |
| B | 0 | 16199 | 2 |
| C | 0 | 29137 | 2 |
| D | 0 | 16983 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6769 | 5357 | 79.140198% |
| B | 6770 | 107 | 1.580502% |
| C | 6770 | 1539 | 22.732644% |
| D | 6770 | 159 | 2.348597% |

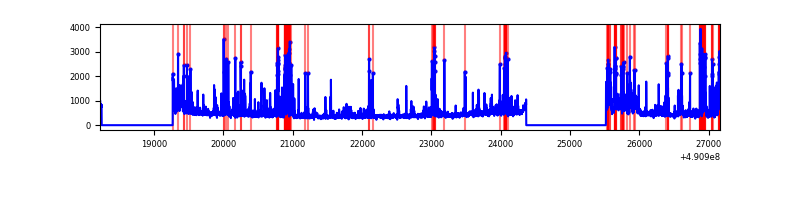

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8944 | 6769 | 5090 | 5090 | 56.91% | 75.20% |  |
| B | 8945 | 6772 | 53 | 53 | 0.59% | 0.78% |  |
| C | 8945 | 6772 | 1502 | 1502 | 16.79% | 22.18% |  |
| D | 8945 | 6772 | 161 | 161 | 1.80% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 11457745 | 101502.35 | 446 | 435 | 112.9 |
| A | 0 | 8 | 1385925 | 12274.3 | 446 | 435 | 112.9 |
| A | 6 | 248 | 128975 | 1138.76 | 446 | 435 | 112.9 |
| B | 4 | 171 | 350296 | 2324.38 | 698 | 675 | 150.4 |
| B | 4 | 81 | 95276 | 628.93 | 698 | 675 | 150.4 |
| B | 14 | 167 | 91198 | 601.82 | 698 | 675 | 150.4 |
| C | 15 | 224 | 1678164 | 9677.65 | 623 | 617 | 173.3 |
| C | 4 | 5 | 1190399 | 6863.77 | 623 | 617 | 173.3 |
| C | 1 | 241 | 1188046 | 6850.19 | 623 | 617 | 173.3 |
| D | 2 | 249 | 444466 | 2281.72 | 682 | 650 | 194.5 |
| D | 10 | 172 | 201240 | 1031.26 | 682 | 650 | 194.5 |
| D | 0 | 5 | 112034 | 572.64 | 682 | 650 | 194.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

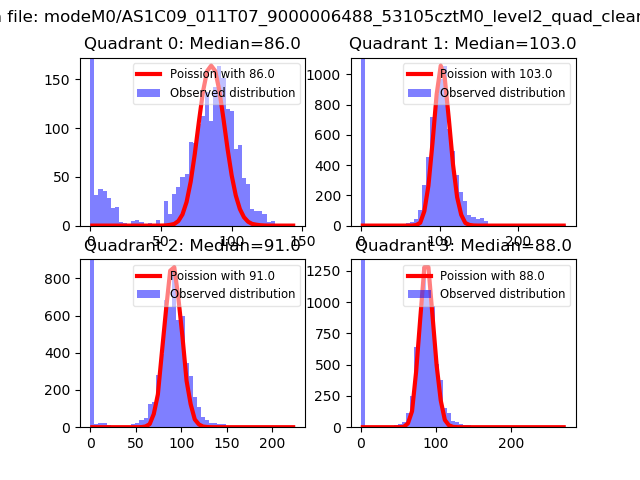

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

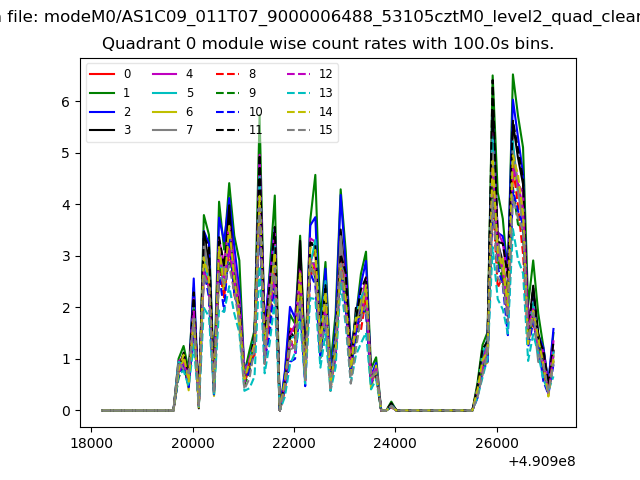

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

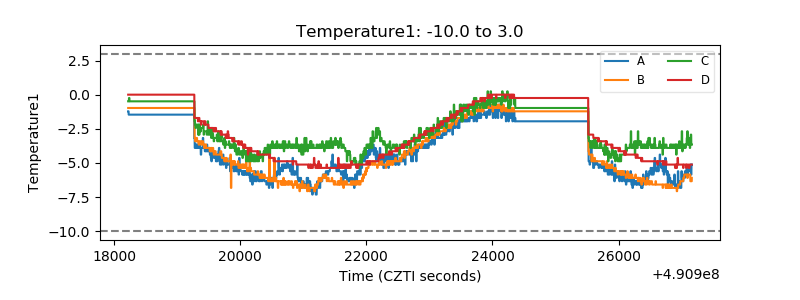

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

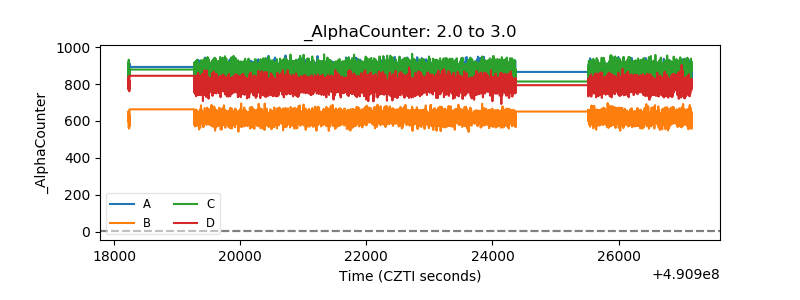

| Alpha Counter |  |
| _CPM_Rate |  |

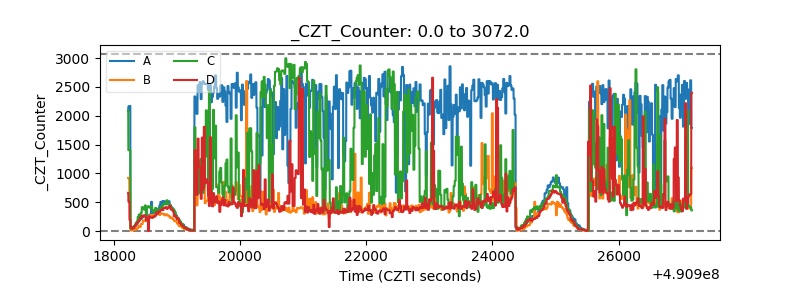

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

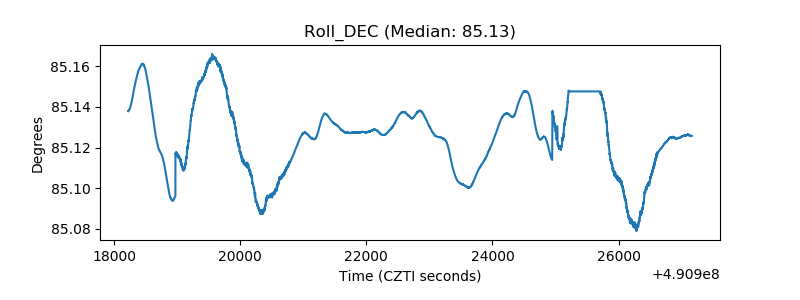

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
