| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006488_53146cztM0_level2.fits | modeM0/AS1C09_011T07_9000006488_53146cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,694,080 | 88,551,360 |
| Size | 661.6 MB | 84.4 MB |
| Events in quadrant A | 3,286,450 | 650,881 |
| Events in quadrant B | 3,365,306 | 669,197 |
| Events in quadrant C | 8,716,622 | 470,515 |
| Events in quadrant D | 9,805,897 | 436,854 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14685 | 1 |
| B | 0 | 14857 | 1 |
| C | 0 | 30443 | 1 |
| D | 0 | 33653 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6502 | 137 | 2.107044% |
| B | 6503 | 147 | 2.260495% |
| C | 6503 | 1760 | 27.064432% |
| D | 6502 | 2024 | 31.128883% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

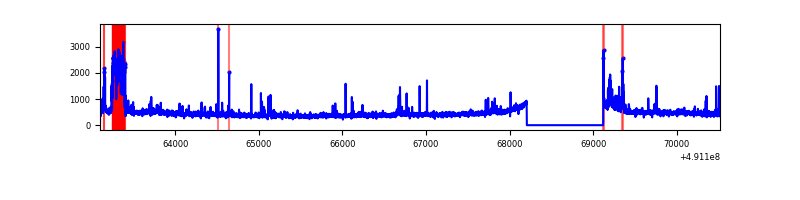

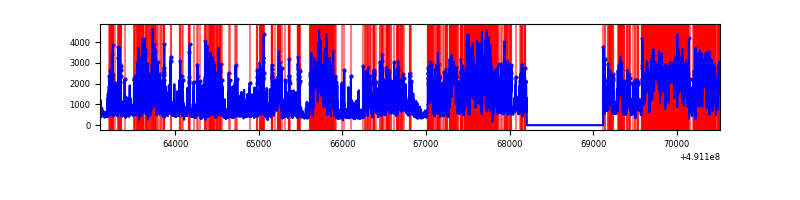

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7417 | 6503 | 96 | 96 | 1.29% | 1.48% |  |
| B | 7418 | 6503 | 89 | 89 | 1.20% | 1.37% |  |
| C | 7418 | 6504 | 1588 | 1588 | 21.41% | 24.42% |  |
| D | 7417 | 6503 | 1767 | 1767 | 23.82% | 27.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 280283 | 1596.72 | 689 | 670 | 175.1 |
| A | 15 | 174 | 98416 | 558.17 | 689 | 670 | 175.1 |
| A | 7 | 206 | 47602 | 268.0 | 689 | 670 | 175.1 |
| B | 2 | 249 | 228873 | 1586.06 | 677 | 654 | 143.9 |
| B | 4 | 81 | 193555 | 1340.61 | 677 | 654 | 143.9 |
| B | 4 | 171 | 80948 | 558.02 | 677 | 654 | 143.9 |
| C | 0 | 240 | 3057739 | 18214.08 | 602 | 595 | 167.8 |
| C | 15 | 224 | 1777607 | 10587.22 | 602 | 595 | 167.8 |
| C | 1 | 241 | 665042 | 3958.69 | 602 | 595 | 167.8 |
| D | 15 | 125 | 6351819 | 37870.55 | 577 | 552 | 167.7 |
| D | 2 | 62 | 357910 | 2130.81 | 577 | 552 | 167.7 |
| D | 2 | 153 | 134293 | 797.45 | 577 | 552 | 167.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

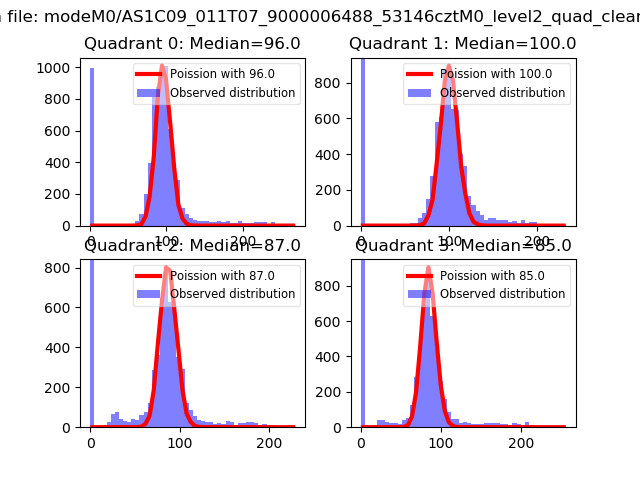

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

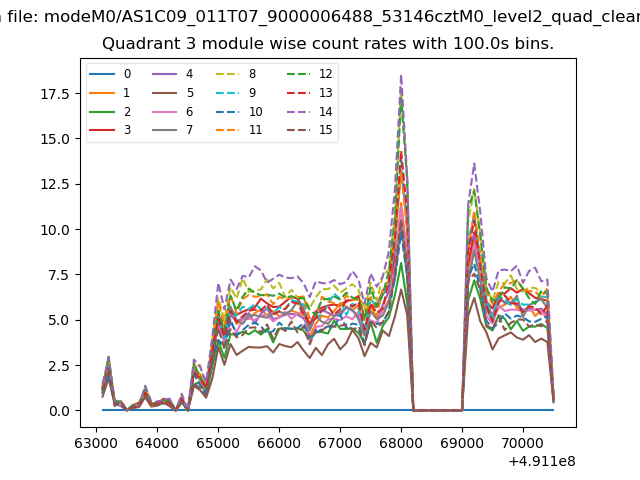

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

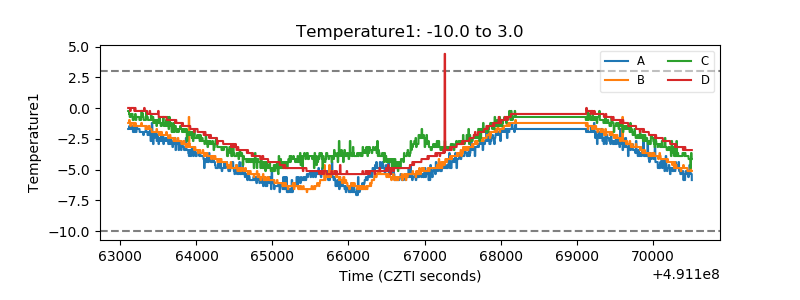

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

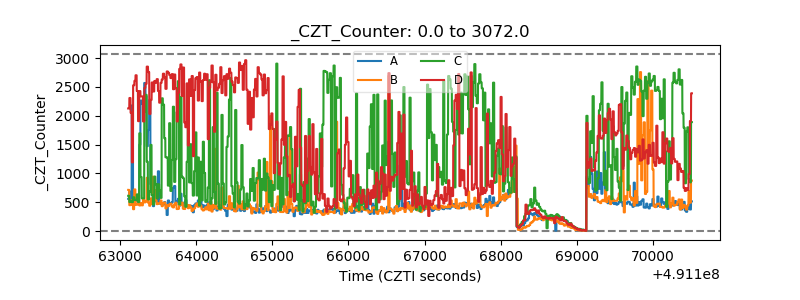

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

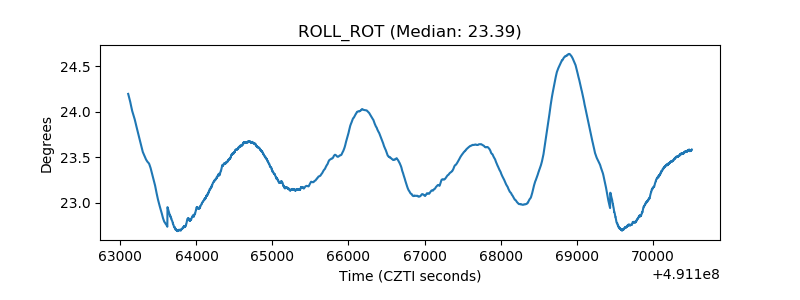

| _ROLL_ROT |  |
| _Roll_DEC |  |

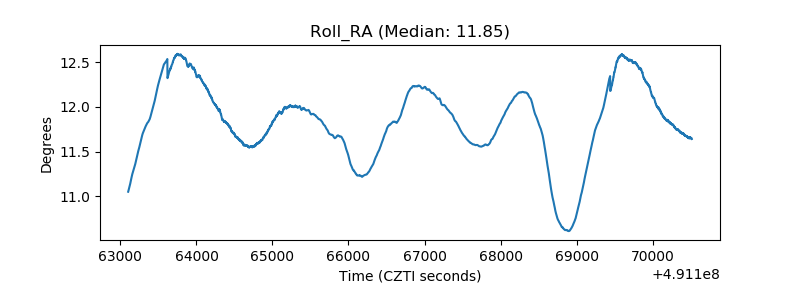

| _Roll_RA |  |
| Veto Counter |  |
