| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006490_53166cztM0_level2.fits | modeM0/AS1C09_011T06_9000006490_53166cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,486,080 | 81,311,040 |
| Size | 602.2 MB | 77.5 MB |
| Events in quadrant A | 4,539,100 | 549,179 |
| Events in quadrant B | 7,735,547 | 497,367 |
| Events in quadrant C | 6,271,057 | 484,825 |
| Events in quadrant D | 4,361,321 | 508,491 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17998 | 1 |
| B | 0 | 27206 | 1 |
| C | 0 | 22895 | 1 |
| D | 0 | 17364 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6043 | 522 | 8.638094% |
| B | 6044 | 1638 | 27.101257% |
| C | 6044 | 903 | 14.940437% |
| D | 6044 | 322 | 5.327598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

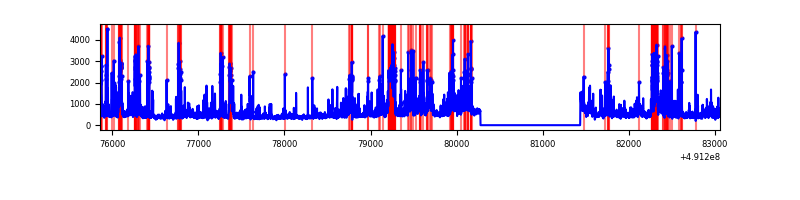

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7203 | 6044 | 440 | 440 | 6.11% | 7.28% |  |
| B | 7204 | 6044 | 1192 | 1192 | 16.55% | 19.72% |  |
| C | 7204 | 6045 | 934 | 934 | 12.97% | 15.45% |  |
| D | 7204 | 6045 | 299 | 299 | 4.15% | 4.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 1053218 | 7052.29 | 592 | 577 | 149.3 |
| A | 4 | 249 | 477280 | 3193.73 | 592 | 577 | 149.3 |
| A | 8 | 249 | 340340 | 2276.28 | 592 | 577 | 149.3 |
| B | 10 | 191 | 2978145 | 25524.73 | 551 | 532 | 116.7 |
| B | 1 | 239 | 1637968 | 14036.45 | 551 | 532 | 116.7 |
| B | 4 | 81 | 377032 | 3227.44 | 551 | 532 | 116.7 |
| C | 1 | 241 | 1367267 | 8687.13 | 562 | 556 | 157.3 |
| C | 0 | 240 | 1173769 | 7457.21 | 562 | 556 | 157.3 |
| C | 15 | 224 | 665028 | 4223.54 | 562 | 556 | 157.3 |
| D | 15 | 125 | 759416 | 4527.41 | 576 | 548 | 167.6 |
| D | 10 | 172 | 445728 | 2655.94 | 576 | 548 | 167.6 |
| D | 2 | 120 | 264751 | 1576.24 | 576 | 548 | 167.6 |

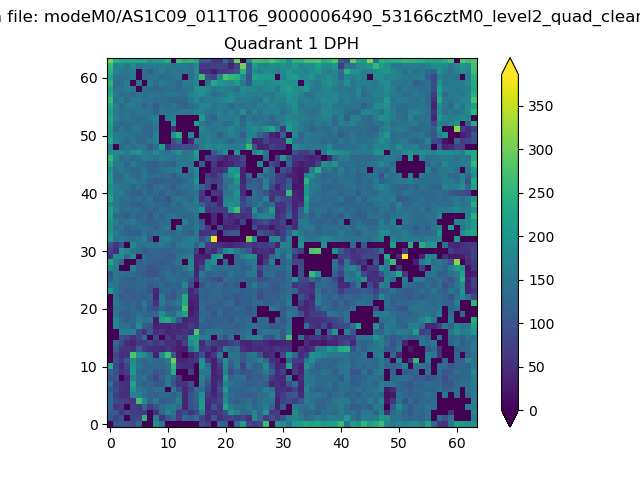

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

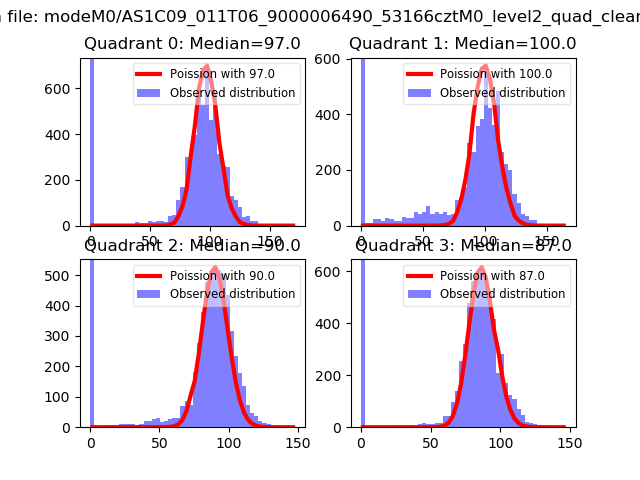

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

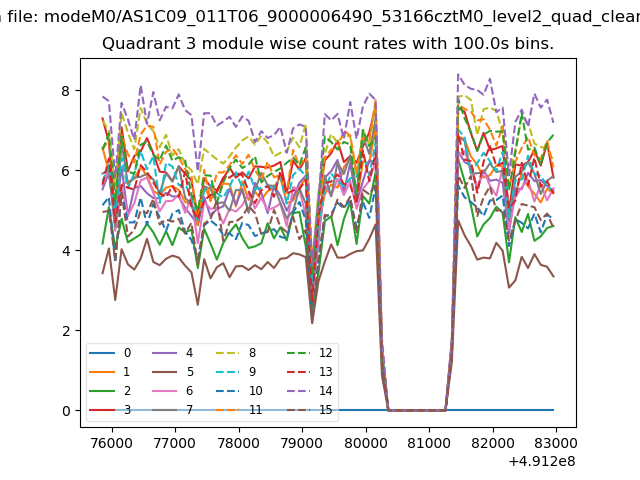

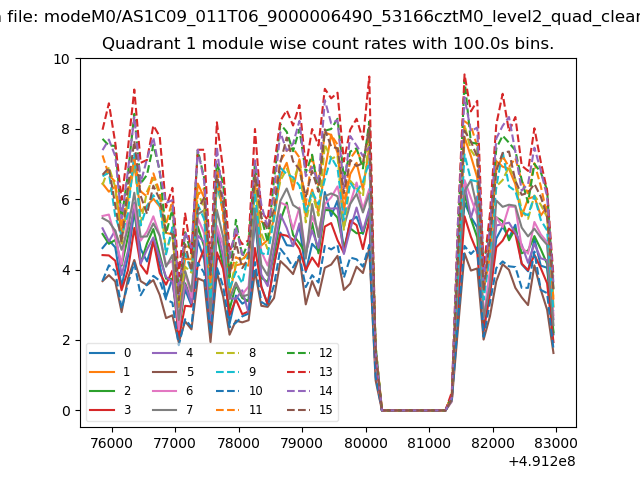

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

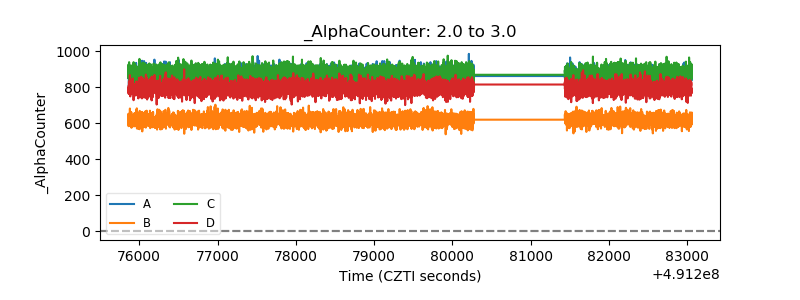

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

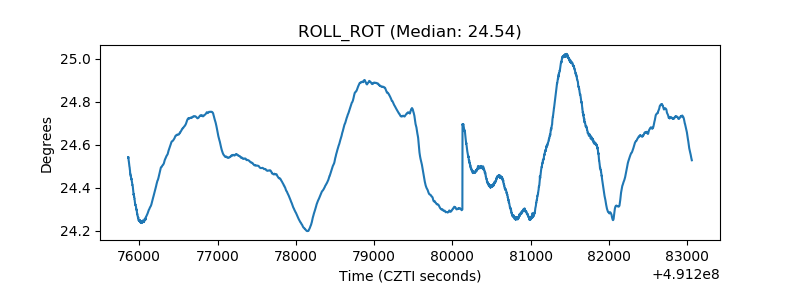

| _ROLL_ROT |  |

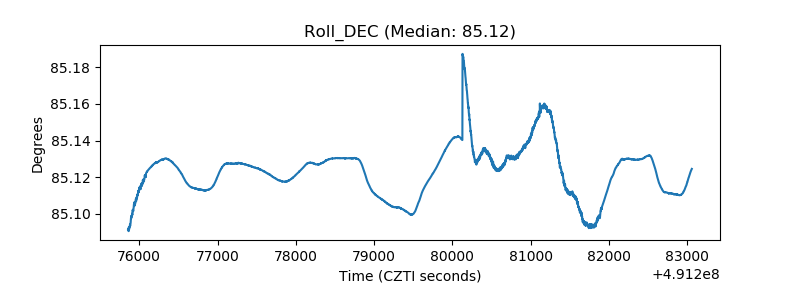

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
