| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006490_53167cztM0_level2.fits | modeM0/AS1C09_011T06_9000006490_53167cztM0_level2_quad_clean.evt |
| Size (bytes) | 875,865,600 | 82,298,880 |
| Size | 835.3 MB | 78.5 MB |
| Events in quadrant A | 4,953,461 | 628,855 |
| Events in quadrant B | 8,632,128 | 531,226 |
| Events in quadrant C | 8,202,500 | 510,022 |
| Events in quadrant D | 10,109,635 | 348,785 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19555 | 3 |
| B | 0 | 30352 | 2 |
| C | 0 | 29188 | 2 |
| D | 0 | 34932 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6781 | 331 | 4.881286% |
| B | 6781 | 1914 | 28.225925% |
| C | 6781 | 1328 | 19.584132% |
| D | 6781 | 2832 | 41.763752% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 6782 | 278 | 278 | 3.57% | 4.10% |  |
| B | 7781 | 6782 | 1356 | 1356 | 17.43% | 19.99% |  |
| C | 7781 | 6782 | 1287 | 1287 | 16.54% | 18.98% |  |
| D | 7780 | 6780 | 2667 | 2667 | 34.28% | 39.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 985665 | 5779.55 | 681 | 663 | 170.4 |
| A | 8 | 249 | 518920 | 3040.9 | 681 | 663 | 170.4 |
| A | 12 | 80 | 272051 | 1592.38 | 681 | 663 | 170.4 |
| B | 10 | 191 | 2570182 | 19609.72 | 617 | 596 | 131.0 |
| B | 1 | 239 | 2016612 | 15385.16 | 617 | 596 | 131.0 |
| B | 10 | 254 | 989490 | 7546.71 | 617 | 596 | 131.0 |
| C | 1 | 241 | 2483432 | 14523.63 | 620 | 614 | 171.0 |
| C | 0 | 240 | 986584 | 5767.59 | 620 | 614 | 171.0 |
| C | 15 | 224 | 729007 | 4260.85 | 620 | 614 | 171.0 |
| D | 15 | 125 | 7237903 | 51382.16 | 483 | 460 | 140.9 |
| D | 12 | 3 | 536503 | 3805.63 | 483 | 460 | 140.9 |
| D | 2 | 249 | 114997 | 813.15 | 483 | 460 | 140.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

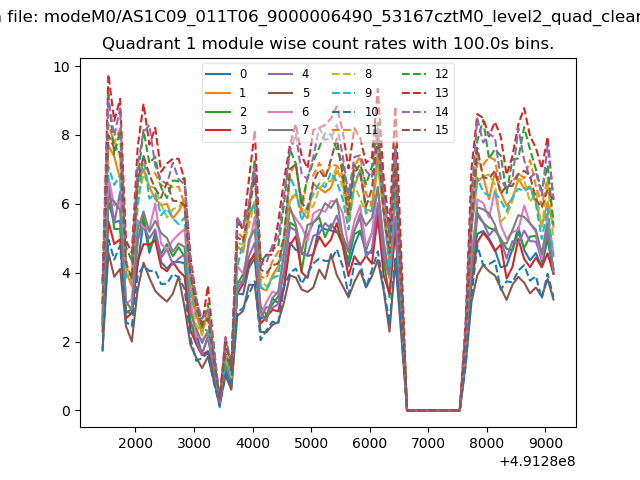

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

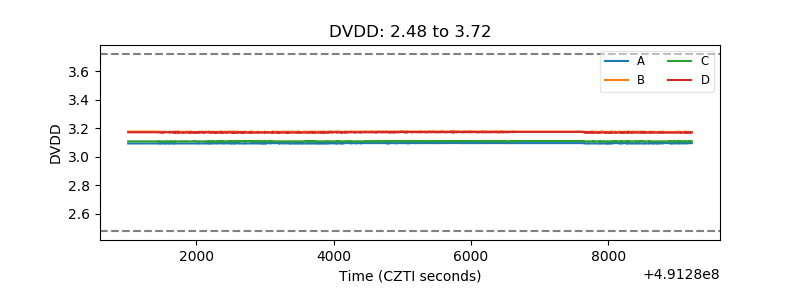

| D_VDD |  |

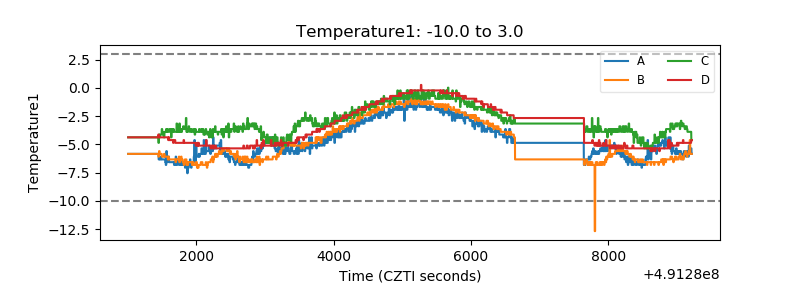

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

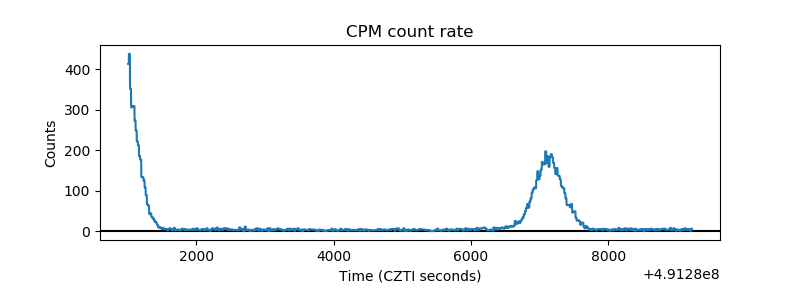

| _CPM_Rate |  |

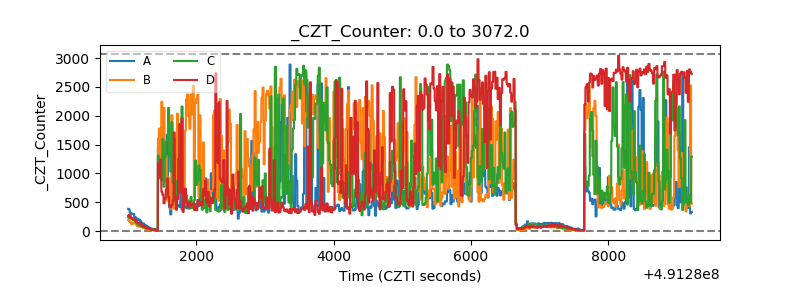

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

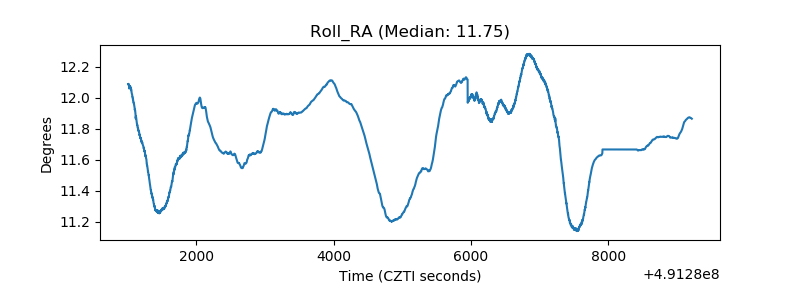

| _Roll_RA |  |

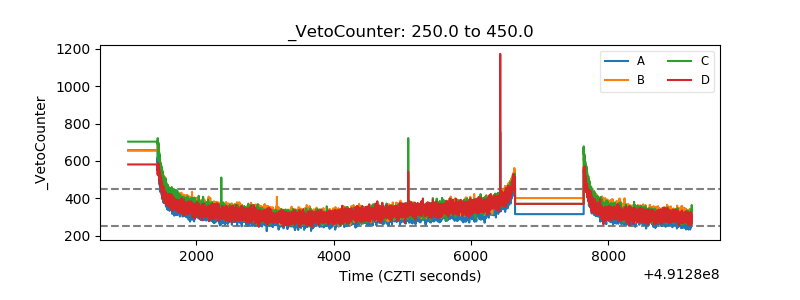

| Veto Counter |  |
