| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006490_53168cztM0_level2.fits | modeM0/AS1C09_011T06_9000006490_53168cztM0_level2_quad_clean.evt |
| Size (bytes) | 931,011,840 | 67,613,760 |
| Size | 887.9 MB | 64.5 MB |
| Events in quadrant A | 4,388,368 | 566,242 |
| Events in quadrant B | 4,270,997 | 603,355 |
| Events in quadrant C | 8,946,484 | 418,363 |
| Events in quadrant D | 16,371,317 | 20,464 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17579 | 56 |
| B | 0 | 17229 | 54 |
| C | 0 | 30990 | 35 |
| D | 0 | 53187 | 162 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6283 | 329 | 5.236352% |
| B | 6280 | 350 | 5.573248% |
| C | 6285 | 1905 | 30.310263% |
| D | 6273 | 6072 | 96.795791% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6937 | 6289 | 240 | 240 | 3.46% | 3.82% |  |
| B | 6938 | 6289 | 159 | 159 | 2.29% | 2.53% |  |
| C | 6938 | 6292 | 1778 | 1778 | 25.63% | 28.26% |  |
| D | 6936 | 6276 | 5972 | 5972 | 86.10% | 95.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 439809 | 2775.9 | 628 | 611 | 158.2 |
| A | 12 | 3 | 416877 | 2630.96 | 628 | 611 | 158.2 |
| A | 3 | 62 | 358436 | 2261.59 | 628 | 611 | 158.2 |
| B | 10 | 191 | 1078719 | 8223.92 | 618 | 596 | 131.1 |
| B | 1 | 239 | 258492 | 1967.23 | 618 | 596 | 131.1 |
| B | 4 | 81 | 178823 | 1359.52 | 618 | 596 | 131.1 |
| C | 15 | 224 | 1887017 | 12549.79 | 542 | 535 | 150.3 |
| C | 0 | 240 | 1572699 | 10458.8 | 542 | 535 | 150.3 |
| C | 1 | 241 | 1297265 | 8626.48 | 542 | 535 | 150.3 |
| D | 15 | 125 | 15070219 | 246010.16 | 206 | 196 | 61.3 |
| D | 2 | 249 | 131455 | 2142.73 | 206 | 196 | 61.3 |
| D | 9 | 102 | 85481 | 1392.23 | 206 | 196 | 61.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

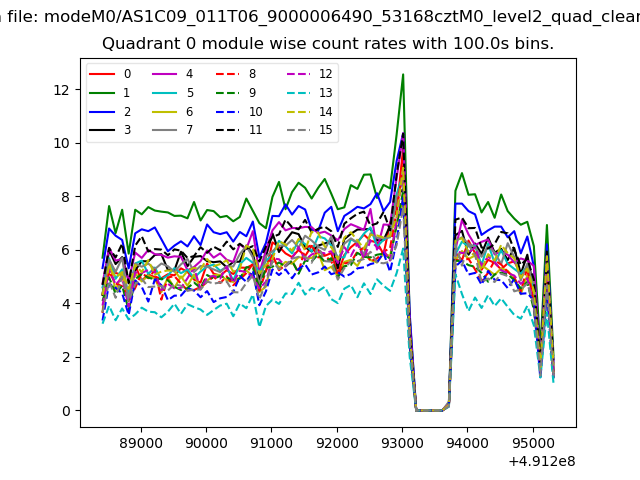

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

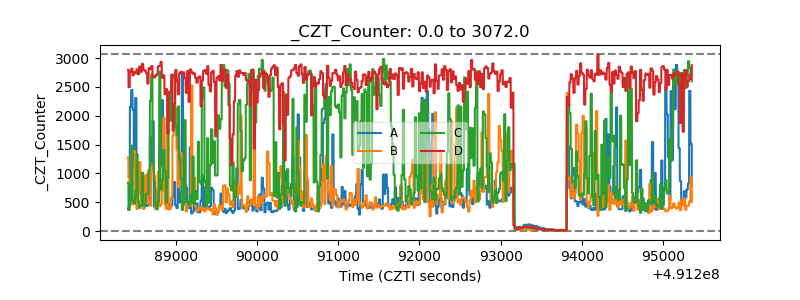

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

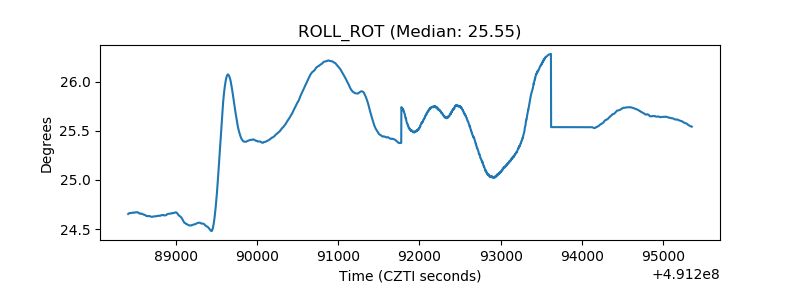

| _ROLL_ROT |  |
| _Roll_DEC |  |

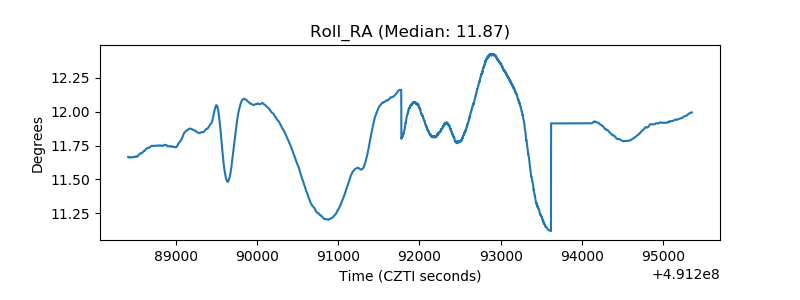

| _Roll_RA |  |
| Veto Counter |  |
