| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006490_53212cztM0_level2.fits | modeM0/AS1C09_011T06_9000006490_53212cztM0_level2_quad_clean.evt |
| Size (bytes) | 859,680,000 | 78,068,160 |
| Size | 819.9 MB | 74.5 MB |
| Events in quadrant A | 4,498,947 | 606,205 |
| Events in quadrant B | 4,291,891 | 626,139 |
| Events in quadrant C | 11,241,000 | 280,086 |
| Events in quadrant D | 11,267,801 | 379,765 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18270 | 1 |
| B | 0 | 17950 | 1 |
| C | 0 | 38077 | 1 |
| D | 0 | 38126 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6758 | 381 | 5.637763% |
| B | 6758 | 553 | 8.182894% |
| C | 6759 | 3706 | 54.830596% |
| D | 6759 | 2472 | 36.573458% |

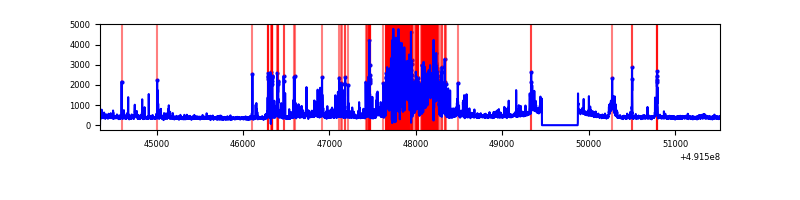

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7173 | 6759 | 302 | 302 | 4.21% | 4.47% |  |
| B | 7173 | 6759 | 327 | 327 | 4.56% | 4.84% |  |
| C | 7174 | 6760 | 3115 | 3115 | 43.42% | 46.08% |  |
| D | 7174 | 6760 | 2552 | 2552 | 35.57% | 37.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 1209818 | 7154.61 | 679 | 663 | 169.0 |
| A | 0 | 8 | 204598 | 1206.69 | 679 | 663 | 169.0 |
| A | 3 | 14 | 99802 | 586.61 | 679 | 663 | 169.0 |
| B | 2 | 249 | 1143836 | 8162.27 | 665 | 641 | 140.1 |
| B | 4 | 81 | 230315 | 1639.84 | 665 | 641 | 140.1 |
| B | 10 | 247 | 102999 | 730.82 | 665 | 641 | 140.1 |
| C | 15 | 198 | 7717881 | 71031.18 | 390 | 386 | 108.6 |
| C | 4 | 5 | 878488 | 8081.98 | 390 | 386 | 108.6 |
| C | 15 | 224 | 858445 | 7897.5 | 390 | 386 | 108.6 |
| D | 15 | 125 | 7929391 | 48771.98 | 566 | 540 | 162.6 |
| D | 11 | 176 | 453609 | 2786.92 | 566 | 540 | 162.6 |
| D | 2 | 37 | 84342 | 515.48 | 566 | 540 | 162.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

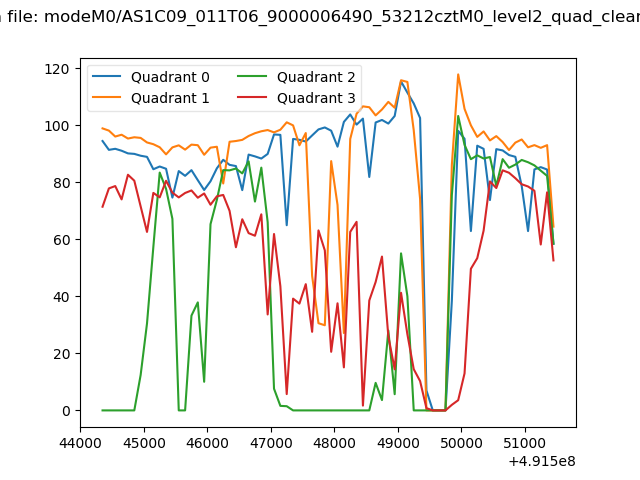

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

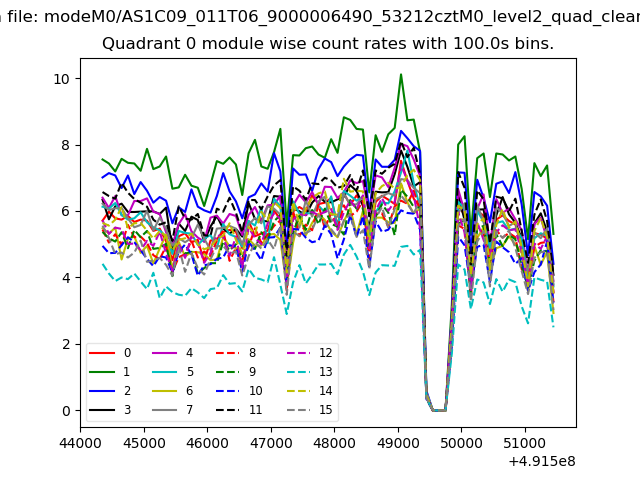

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

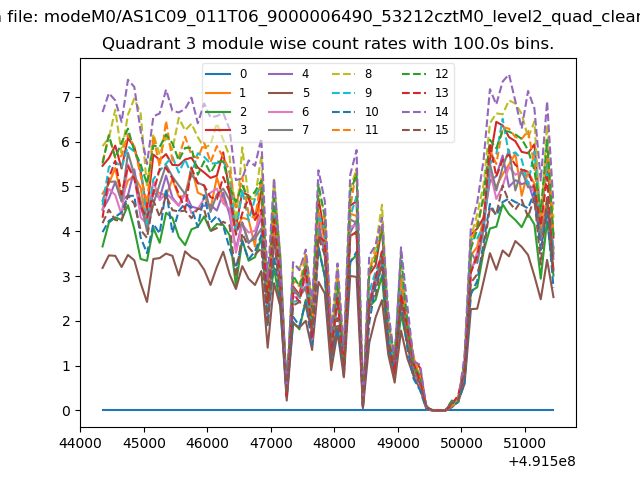

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

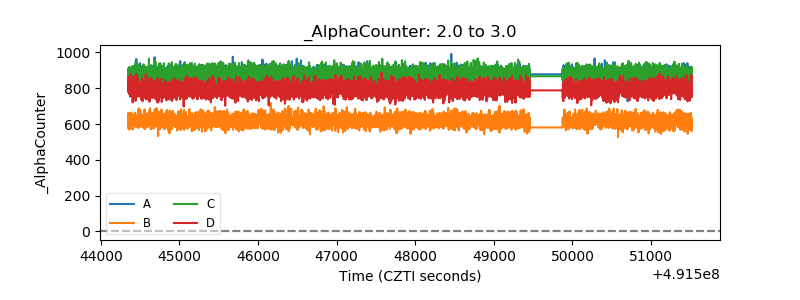

| Alpha Counter |  |

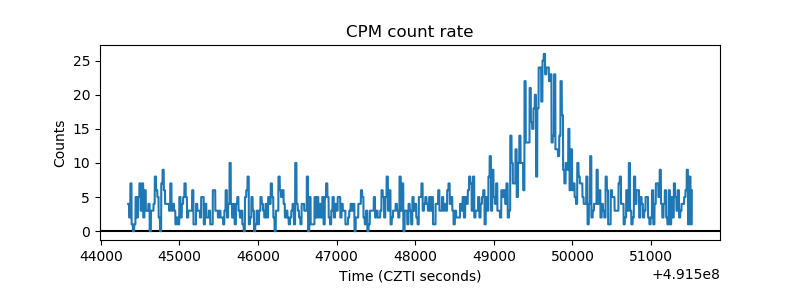

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

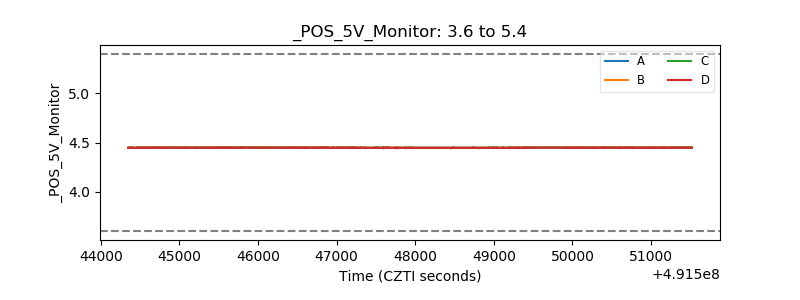

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
