| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006492_53299cztM0_level2.fits | modeM0/AS1C09_011T08_9000006492_53299cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,444,923,520 | 503,640,000 |
| Size | 3.2 GB | 480.3 MB |
| Events in quadrant A | 20,088,196 | 3,515,631 |
| Events in quadrant B | 29,035,698 | 3,591,061 |
| Events in quadrant C | 52,097,073 | 2,450,405 |
| Events in quadrant D | 23,455,882 | 3,159,530 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 87362 | 7 |
| B | 0 | 111894 | 8 |
| C | 0 | 180071 | 7 |
| D | 0 | 96584 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 75 | 0 |
| B | 0 | 75 | 0 |
| C | 0 | 75 | 0 |
| D | 0 | 75 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 748 | 0 |
| B | 0 | 748 | 0 |
| C | 0 | 748 | 0 |
| D | 0 | 748 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 36864 | 1004 | 2.723524% |
| B | 36863 | 3078 | 8.349836% |
| C | 36864 | 11652 | 31.608073% |
| D | 36864 | 1571 | 4.261610% |

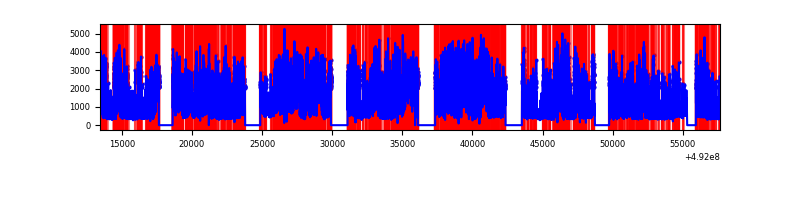

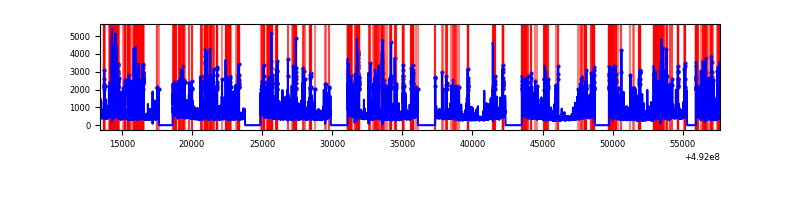

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 44199 | 36871 | 687 | 687 | 1.55% | 1.86% |  |
| B | 44198 | 36870 | 2092 | 2092 | 4.73% | 5.67% |  |
| C | 44199 | 36870 | 10773 | 10773 | 24.37% | 29.22% |  |
| D | 44199 | 36871 | 1232 | 1232 | 2.79% | 3.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 1650301 | 1736.39 | 3805 | 3707 | 948.3 |
| A | 15 | 174 | 812598 | 853.0 | 3805 | 3707 | 948.3 |
| A | 0 | 8 | 531848 | 556.94 | 3805 | 3707 | 948.3 |
| B | 4 | 206 | 3980837 | 5192.32 | 3672 | 3541 | 766.0 |
| B | 4 | 81 | 2792313 | 3640.71 | 3672 | 3541 | 766.0 |
| B | 10 | 254 | 2009874 | 2619.25 | 3672 | 3541 | 766.0 |
| C | 1 | 241 | 20124646 | 23020.91 | 3167 | 3129 | 874.1 |
| C | 15 | 224 | 7942793 | 9083.72 | 3167 | 3129 | 874.1 |
| C | 4 | 5 | 2947575 | 3368.72 | 3167 | 3129 | 874.1 |
| D | 11 | 176 | 2830409 | 2705.69 | 3662 | 3492 | 1044.8 |
| D | 3 | 12 | 1402714 | 1339.22 | 3662 | 3492 | 1044.8 |
| D | 6 | 239 | 937472 | 893.93 | 3662 | 3492 | 1044.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

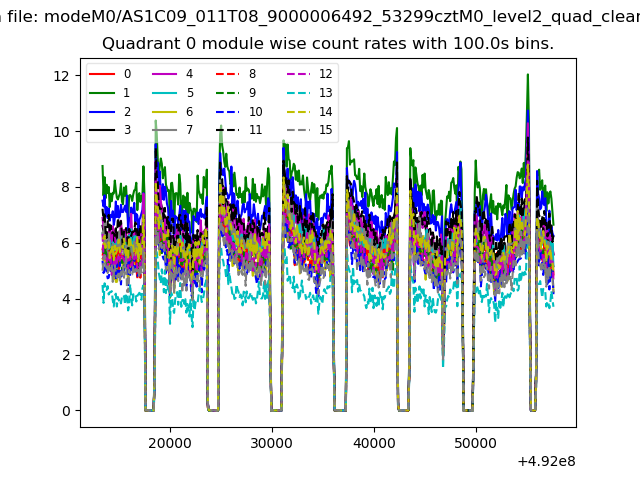

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

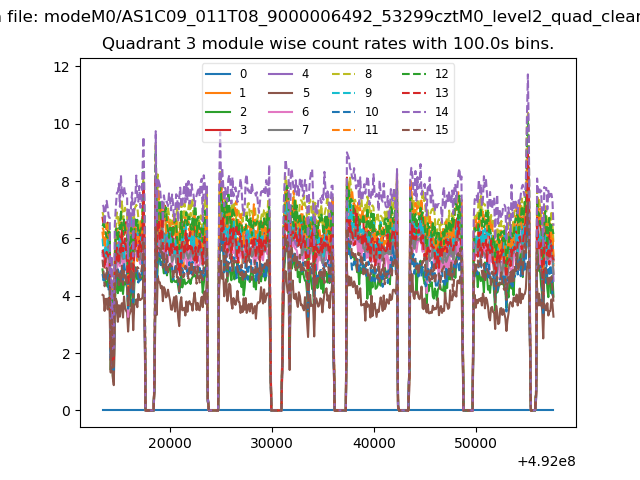

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

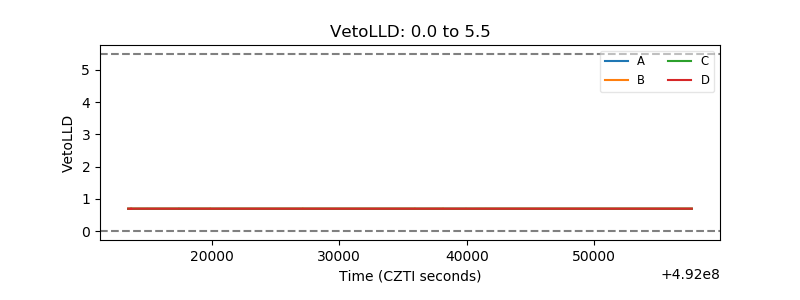

| Veto LLD |  |
| Alpha Counter |  |

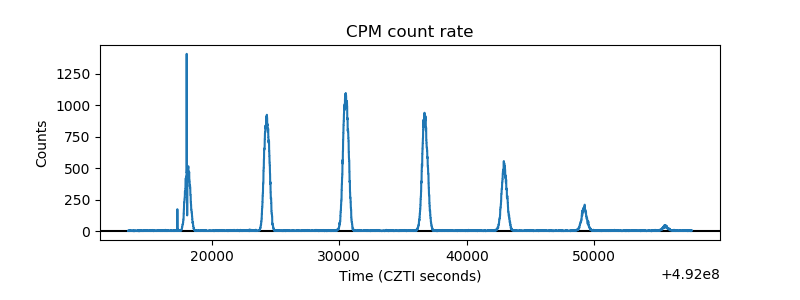

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

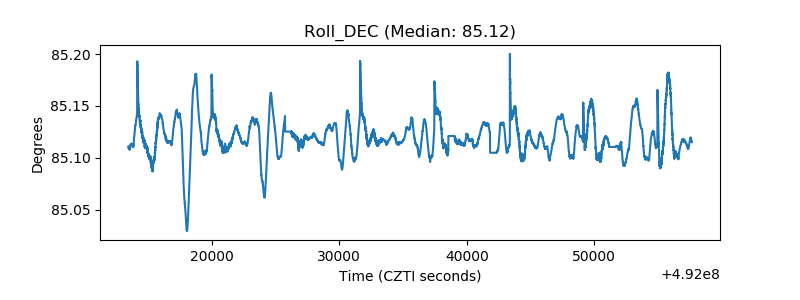

| _Roll_DEC |  |

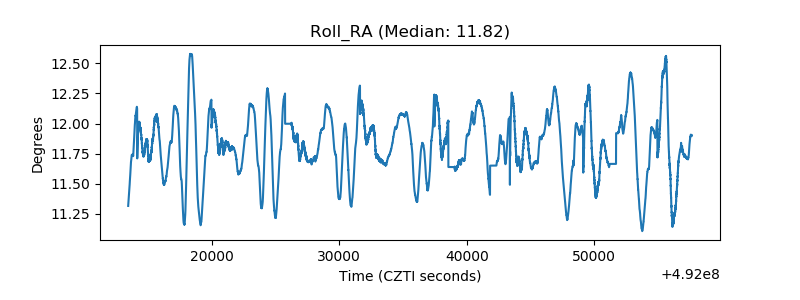

| _Roll_RA |  |
| Veto Counter |  |
