| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006492_53334cztM0_level2.fits | modeM0/AS1C09_011T08_9000006492_53334cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,323,480,320 | 298,797,120 |
| Size | 2.2 GB | 285.0 MB |
| Events in quadrant A | 14,134,769 | 2,126,100 |
| Events in quadrant B | 15,933,143 | 2,276,743 |
| Events in quadrant C | 41,448,006 | 1,060,069 |
| Events in quadrant D | 12,692,629 | 1,979,032 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58908 | 4 |
| B | 0 | 63643 | 3 |
| C | 0 | 139156 | 3 |
| D | 0 | 54195 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 474 | 0 |
| B | 0 | 474 | 0 |
| C | 0 | 474 | 0 |
| D | 0 | 474 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23299 | 1112 | 4.772737% |
| B | 23299 | 1197 | 5.137560% |
| C | 23299 | 11613 | 49.843341% |
| D | 23299 | 344 | 1.476458% |

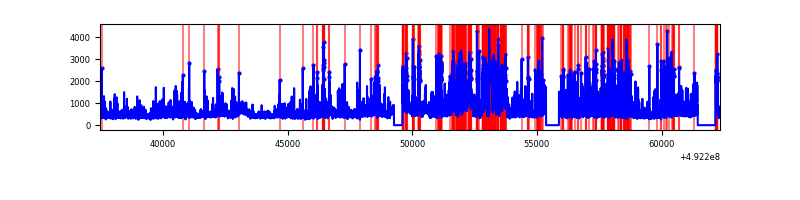

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 24869 | 23300 | 752 | 752 | 3.02% | 3.23% |  |
| B | 24869 | 23301 | 730 | 730 | 2.94% | 3.13% |  |
| C | 24869 | 23299 | 10915 | 10915 | 43.89% | 46.85% |  |
| D | 24869 | 23300 | 187 | 187 | 0.75% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 1635912 | 2685.8 | 2417 | 2358 | 608.2 |
| A | 15 | 174 | 1110473 | 1821.9 | 2417 | 2358 | 608.2 |
| A | 0 | 8 | 795849 | 1304.61 | 2417 | 2358 | 608.2 |
| B | 4 | 206 | 2332739 | 4597.09 | 2393 | 2305 | 506.9 |
| B | 5 | 172 | 1659542 | 3269.12 | 2393 | 2305 | 506.9 |
| B | 5 | 185 | 553269 | 1086.85 | 2393 | 2305 | 506.9 |
| C | 1 | 241 | 17423648 | 37091.67 | 1704 | 1685 | 469.7 |
| C | 15 | 158 | 9410392 | 20031.3 | 1704 | 1685 | 469.7 |
| C | 15 | 224 | 4480721 | 9535.95 | 1704 | 1685 | 469.7 |
| D | 2 | 62 | 859774 | 1270.63 | 2376 | 2269 | 674.9 |
| D | 2 | 249 | 635745 | 938.67 | 2376 | 2269 | 674.9 |
| D | 12 | 3 | 323702 | 476.29 | 2376 | 2269 | 674.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

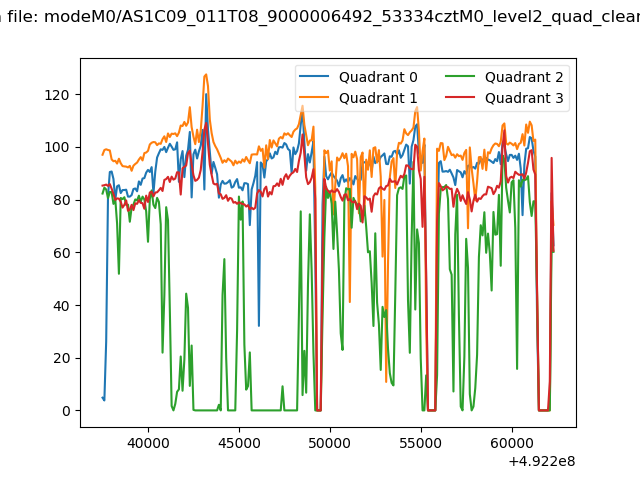

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

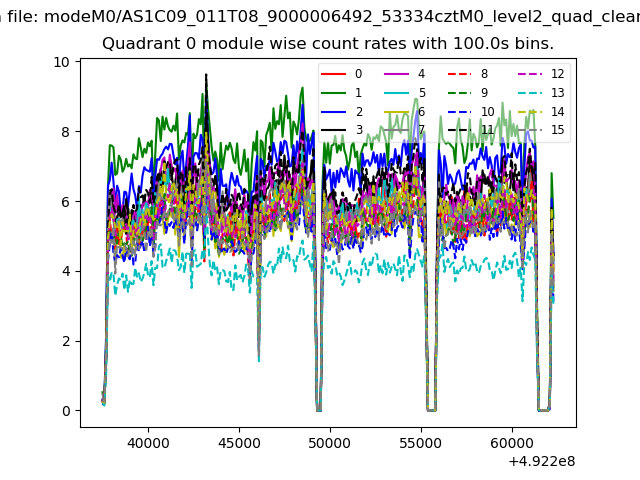

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

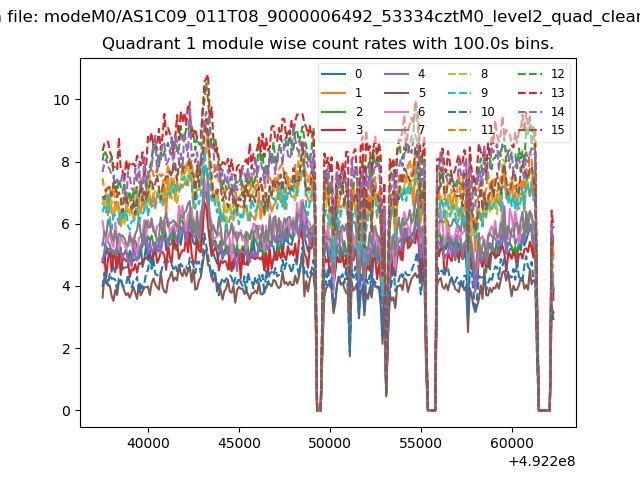

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

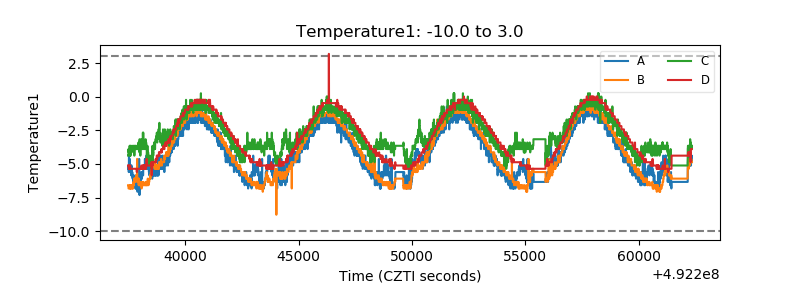

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

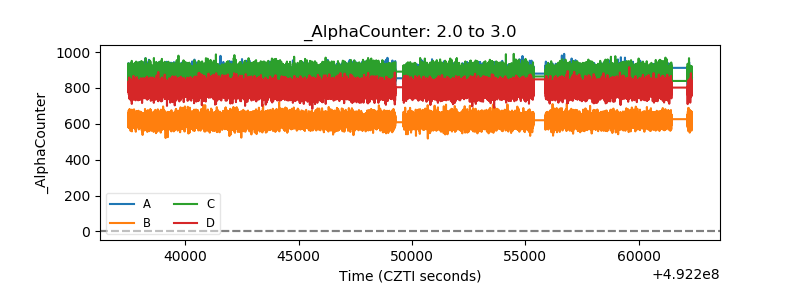

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

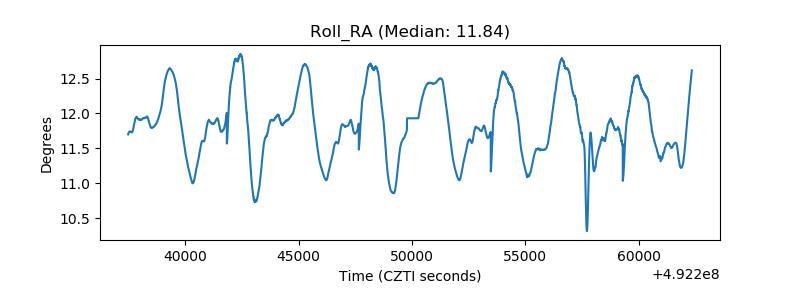

| _Roll_RA |  |

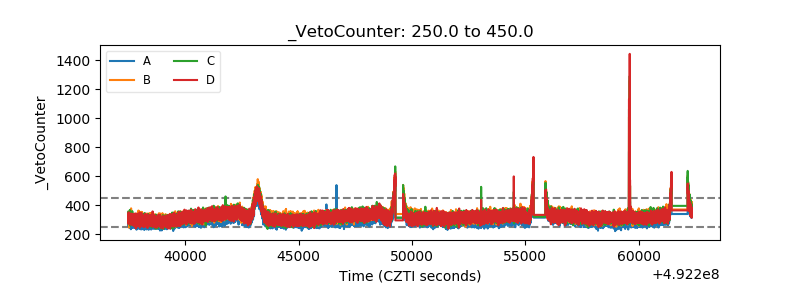

| Veto Counter |  |
