| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_002T06_9000006496_53436cztM0_level2.fits | modeM0/AS1A14_002T06_9000006496_53436cztM0_level2_quad_clean.evt |
| Size (bytes) | 940,930,560 | 117,864,000 |
| Size | 897.3 MB | 112.4 MB |
| Events in quadrant A | 6,804,801 | 796,030 |
| Events in quadrant B | 6,825,329 | 888,570 |
| Events in quadrant C | 14,051,093 | 517,886 |
| Events in quadrant D | 6,451,402 | 740,180 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 0 |
| B | 0 | 184 | 0 |
| C | 0 | 184 | 0 |
| D | 0 | 184 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26317 | 2 |
| B | 0 | 26447 | 2 |
| C | 0 | 47725 | 2 |
| D | 0 | 25308 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9016 | 836 | 9.272405% |
| B | 9016 | 694 | 7.697427% |
| C | 9016 | 3592 | 39.840284% |
| D | 9016 | 500 | 5.545697% |

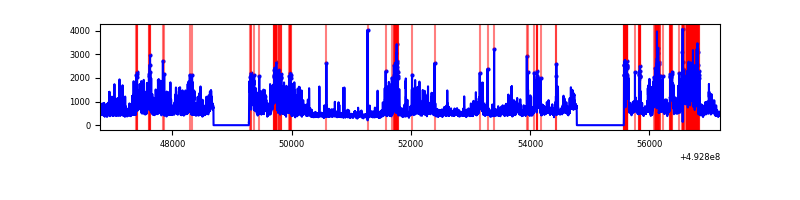

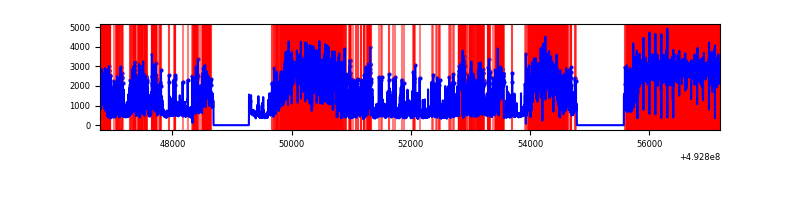

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10401 | 9018 | 628 | 628 | 6.04% | 6.96% |  |
| B | 10401 | 9018 | 246 | 246 | 2.37% | 2.73% |  |
| C | 10401 | 9018 | 3337 | 3337 | 32.08% | 37.00% |  |
| D | 10401 | 9018 | 418 | 418 | 4.02% | 4.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1275139 | 5365.41 | 961 | 935 | 237.5 |
| A | 3 | 63 | 1167925 | 4913.95 | 961 | 935 | 237.5 |
| A | 0 | 8 | 264281 | 1108.89 | 961 | 935 | 237.5 |
| B | 4 | 206 | 680033 | 3285.94 | 961 | 928 | 206.7 |
| B | 4 | 171 | 605486 | 2925.24 | 961 | 928 | 206.7 |
| B | 10 | 254 | 592657 | 2863.16 | 961 | 928 | 206.7 |
| C | 1 | 241 | 6431333 | 32013.24 | 732 | 726 | 200.9 |
| C | 15 | 224 | 3123863 | 15547.79 | 732 | 726 | 200.9 |
| C | 15 | 178 | 520213 | 2586.14 | 732 | 726 | 200.9 |
| D | 11 | 245 | 586674 | 2174.19 | 947 | 903 | 269.4 |
| D | 13 | 153 | 574530 | 2129.12 | 947 | 903 | 269.4 |
| D | 2 | 153 | 233675 | 863.97 | 947 | 903 | 269.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

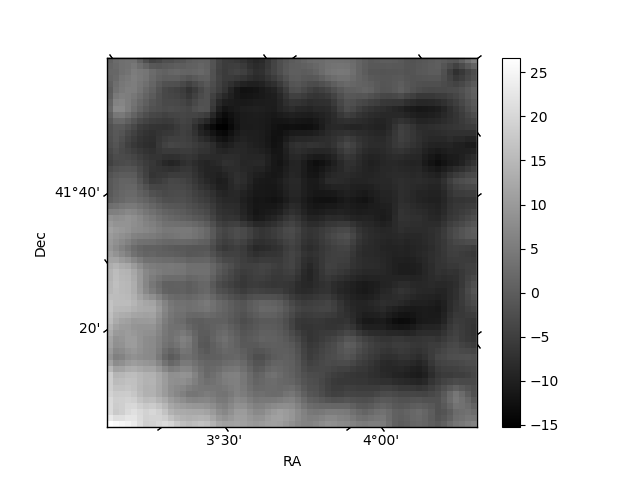

| Plot type | Count rate plots | Images |
|---|---|---|

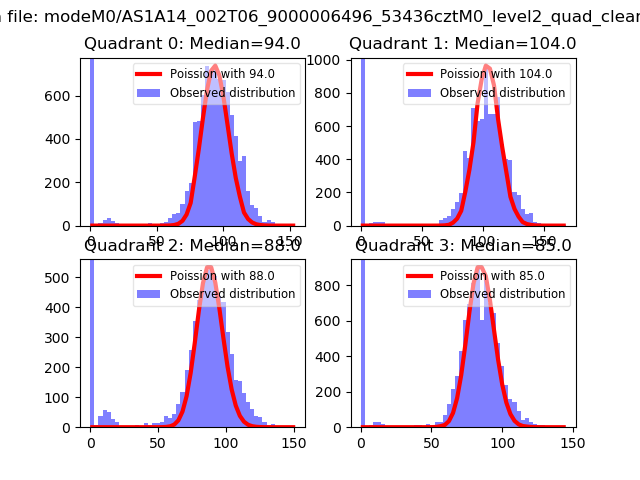

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

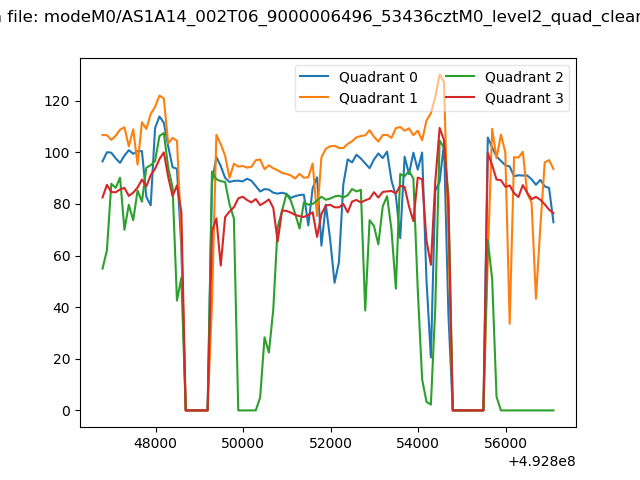

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

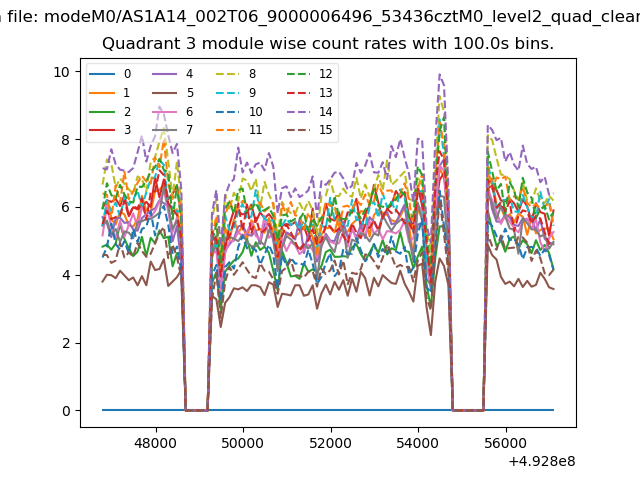

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

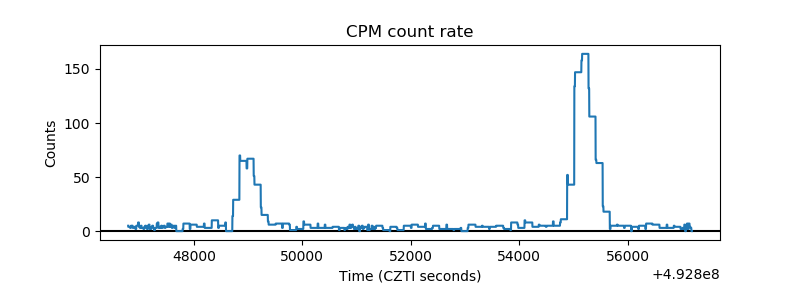

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

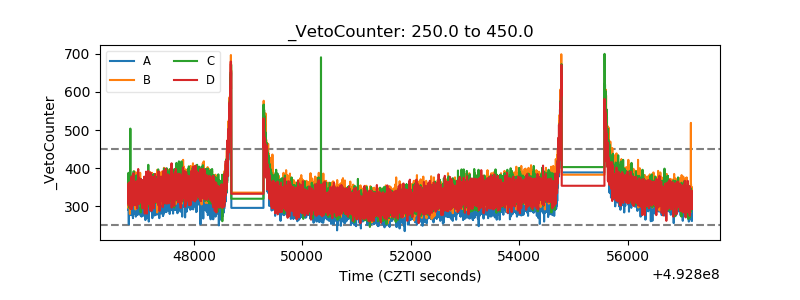

| Veto Counter |  |
