| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_002T06_9000006496_53469cztM0_level2.fits | modeM0/AS1A14_002T06_9000006496_53469cztM0_level2_quad_clean.evt |
| Size (bytes) | 755,280,000 | 91,068,480 |
| Size | 720.3 MB | 86.8 MB |
| Events in quadrant A | 8,411,465 | 560,621 |
| Events in quadrant B | 3,663,382 | 747,557 |
| Events in quadrant C | 11,015,257 | 377,449 |
| Events in quadrant D | 4,350,033 | 605,896 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29613 | 2 |
| B | 0 | 15325 | 2 |
| C | 0 | 37244 | 5 |
| D | 0 | 17393 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6686 | 1713 | 25.620700% |
| B | 6686 | 201 | 3.006282% |
| C | 6685 | 3020 | 45.175767% |
| D | 6685 | 225 | 3.365744% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7791 | 6686 | 1355 | 1355 | 17.39% | 20.27% |  |
| B | 7791 | 6686 | 40 | 40 | 0.51% | 0.60% |  |
| C | 7789 | 6684 | 2728 | 2728 | 35.02% | 40.81% |  |
| D | 7790 | 6685 | 122 | 122 | 1.57% | 1.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 2459937 | 14237.64 | 708 | 691 | 172.7 |
| A | 15 | 174 | 1767784 | 10230.46 | 708 | 691 | 172.7 |
| A | 3 | 63 | 1192856 | 6901.96 | 708 | 691 | 172.7 |
| B | 5 | 185 | 171751 | 1033.94 | 769 | 742 | 165.4 |
| B | 2 | 249 | 143556 | 863.47 | 769 | 742 | 165.4 |
| B | 4 | 81 | 84968 | 509.24 | 769 | 742 | 165.4 |
| C | 1 | 241 | 4344999 | 28532.54 | 560 | 555 | 152.3 |
| C | 15 | 224 | 2960236 | 19437.98 | 560 | 555 | 152.3 |
| C | 15 | 178 | 639150 | 4194.03 | 560 | 555 | 152.3 |
| D | 3 | 12 | 591901 | 2786.45 | 752 | 719 | 212.2 |
| D | 8 | 176 | 227619 | 1069.46 | 752 | 719 | 212.2 |
| D | 11 | 245 | 180263 | 846.25 | 752 | 719 | 212.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

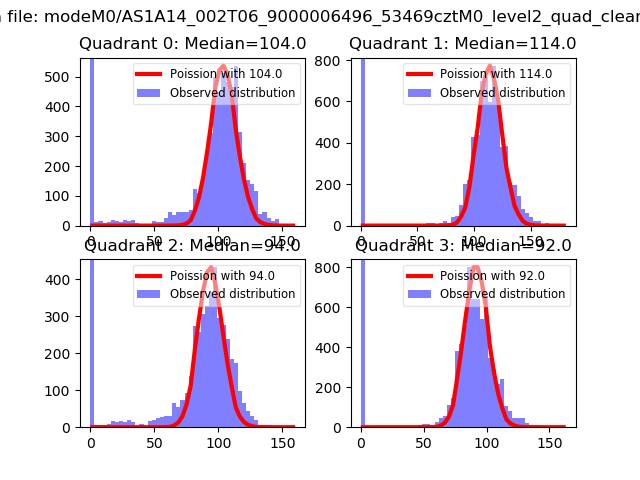

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

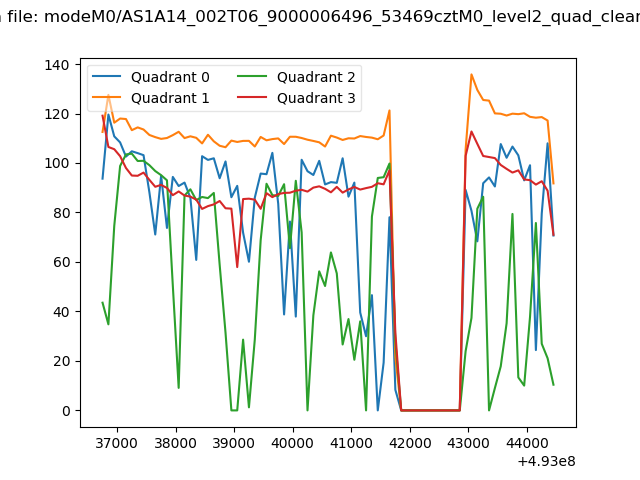

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

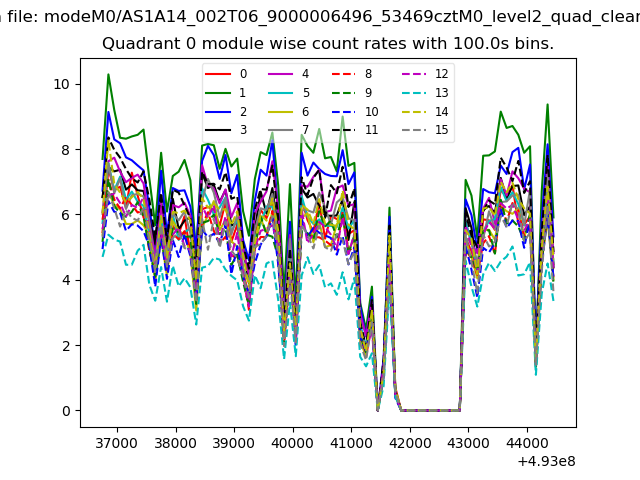

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

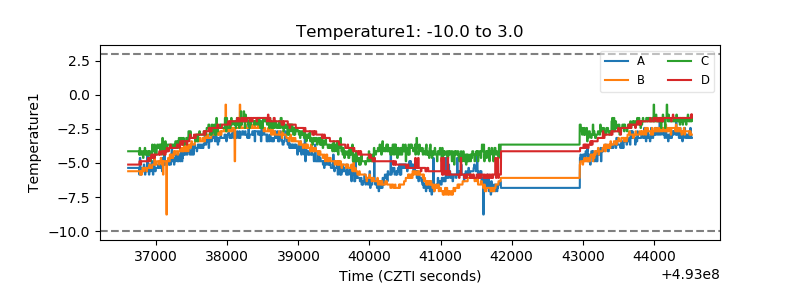

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

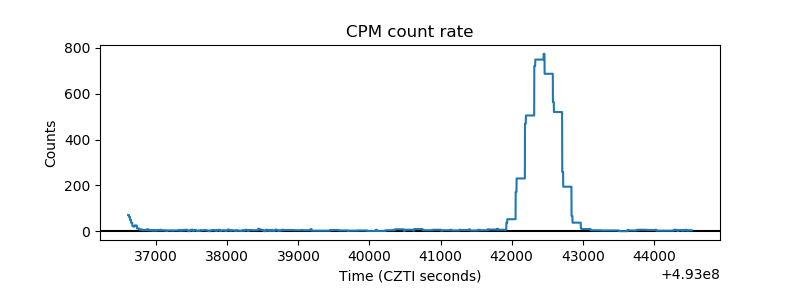

| _CPM_Rate |  |

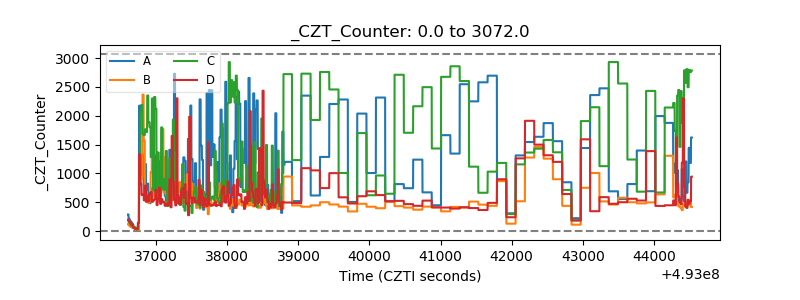

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

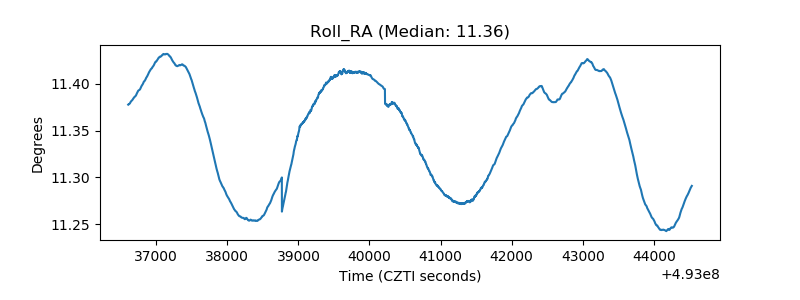

| _Roll_RA |  |
| Veto Counter |  |
