| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53530cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53530cztM0_level2_quad_clean.evt |
| Size (bytes) | 664,332,480 | 87,500,160 |
| Size | 633.6 MB | 83.4 MB |
| Events in quadrant A | 4,029,274 | 624,022 |
| Events in quadrant B | 4,365,842 | 649,316 |
| Events in quadrant C | 7,372,971 | 489,847 |
| Events in quadrant D | 8,329,829 | 441,286 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16354 | 1 |
| B | 0 | 17348 | 1 |
| C | 0 | 26364 | 6 |
| D | 0 | 29123 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6366 | 302 | 4.743952% |
| B | 6366 | 379 | 5.953503% |
| C | 6365 | 1473 | 23.142184% |
| D | 6366 | 1793 | 28.165253% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7361 | 6367 | 155 | 155 | 2.11% | 2.43% |  |
| B | 7361 | 6367 | 199 | 199 | 2.70% | 3.13% |  |
| C | 7360 | 6366 | 1134 | 1134 | 15.41% | 17.81% |  |
| D | 7361 | 6366 | 1499 | 1499 | 20.36% | 23.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 504420 | 2933.99 | 695 | 678 | 171.7 |
| A | 3 | 63 | 301421 | 1751.65 | 695 | 678 | 171.7 |
| A | 12 | 80 | 157553 | 913.7 | 695 | 678 | 171.7 |
| B | 10 | 28 | 837650 | 5794.91 | 683 | 660 | 144.4 |
| B | 2 | 249 | 250148 | 1727.33 | 683 | 660 | 144.4 |
| B | 8 | 128 | 104554 | 719.31 | 683 | 660 | 144.4 |
| C | 15 | 224 | 3368904 | 19468.6 | 629 | 624 | 173.0 |
| C | 15 | 217 | 627832 | 3625.25 | 629 | 624 | 173.0 |
| C | 15 | 147 | 423704 | 2445.4 | 629 | 624 | 173.0 |
| D | 12 | 1 | 2150418 | 12676.79 | 593 | 567 | 169.6 |
| D | 6 | 239 | 1290275 | 7604.88 | 593 | 567 | 169.6 |
| D | 3 | 12 | 957700 | 5643.82 | 593 | 567 | 169.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

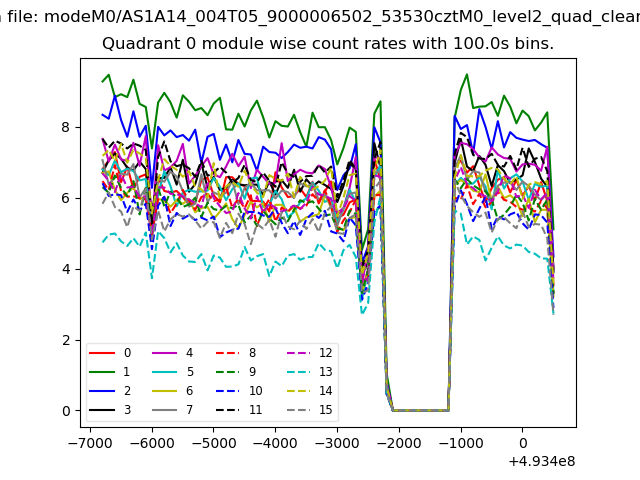

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

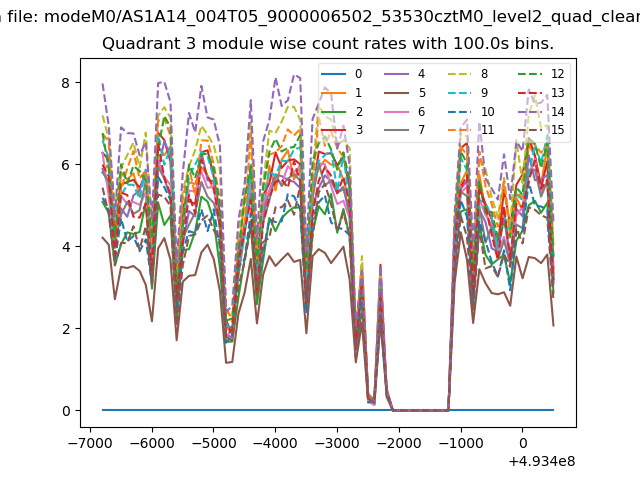

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

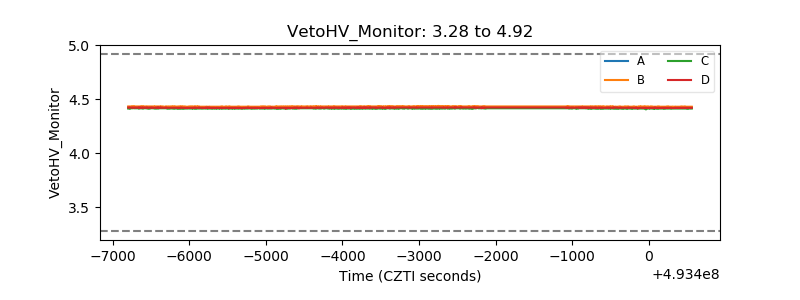

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

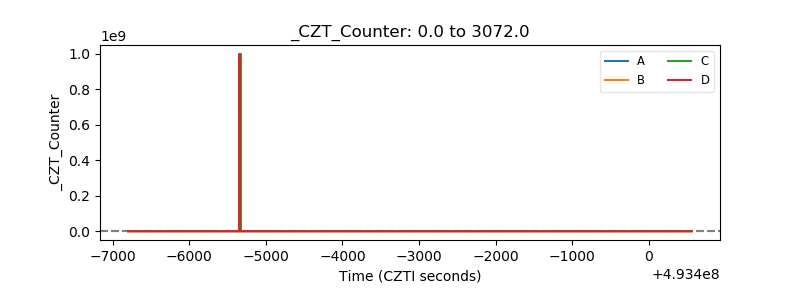

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

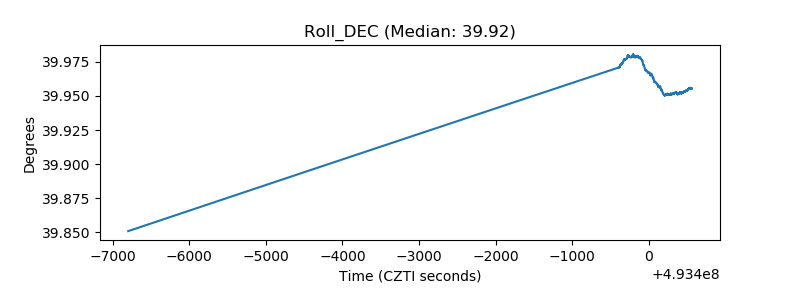

| _Roll_DEC |  |

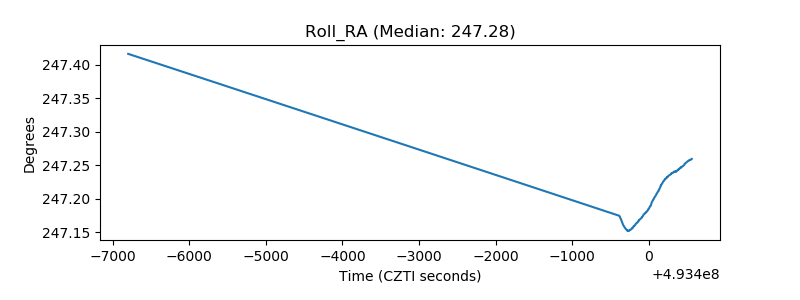

| _Roll_RA |  |
| Veto Counter |  |
