| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53541cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53541cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,536,000 | 86,958,720 |
| Size | 665.2 MB | 82.9 MB |
| Events in quadrant A | 8,862,131 | 465,075 |
| Events in quadrant B | 3,533,464 | 694,561 |
| Events in quadrant C | 8,034,345 | 448,678 |
| Events in quadrant D | 4,887,442 | 571,626 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30812 | 1 |
| B | 0 | 14789 | 1 |
| C | 0 | 28317 | 1 |
| D | 0 | 18944 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6488 | 2183 | 33.646732% |
| B | 6489 | 201 | 3.097550% |
| C | 6489 | 1943 | 29.942980% |
| D | 6489 | 381 | 5.871475% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6488 | 1705 | 1705 | 22.57% | 26.28% |  |
| B | 7554 | 6489 | 39 | 39 | 0.52% | 0.60% |  |
| C | 7554 | 6489 | 1821 | 1821 | 24.11% | 28.06% |  |
| D | 7554 | 6489 | 292 | 292 | 3.87% | 4.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 4687556 | 29620.24 | 638 | 620 | 158.2 |
| A | 12 | 115 | 779510 | 4922.38 | 638 | 620 | 158.2 |
| A | 15 | 174 | 442845 | 2794.75 | 638 | 620 | 158.2 |
| B | 10 | 28 | 169872 | 1095.84 | 724 | 698 | 154.4 |
| B | 1 | 255 | 136936 | 882.49 | 724 | 698 | 154.4 |
| B | 0 | 213 | 51652 | 330.06 | 724 | 698 | 154.4 |
| C | 1 | 241 | 4711348 | 29489.12 | 582 | 577 | 159.7 |
| C | 15 | 224 | 899410 | 5626.64 | 582 | 577 | 159.7 |
| C | 7 | 64 | 37809 | 233.07 | 582 | 577 | 159.7 |
| D | 7 | 96 | 503430 | 2481.59 | 704 | 672 | 202.6 |
| D | 12 | 18 | 445125 | 2193.8 | 704 | 672 | 202.6 |
| D | 11 | 247 | 340827 | 1678.99 | 704 | 672 | 202.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

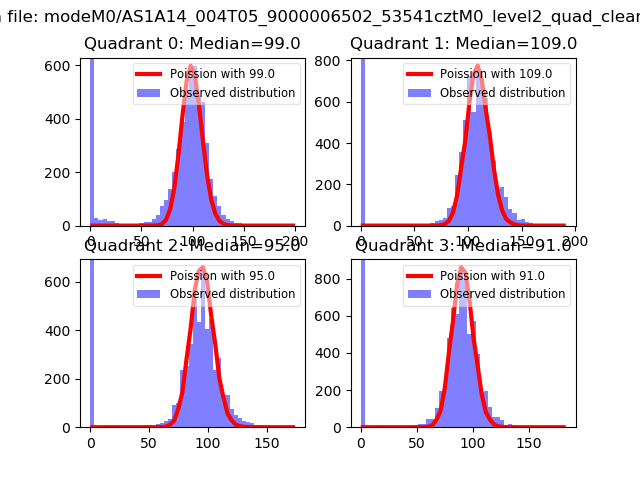

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

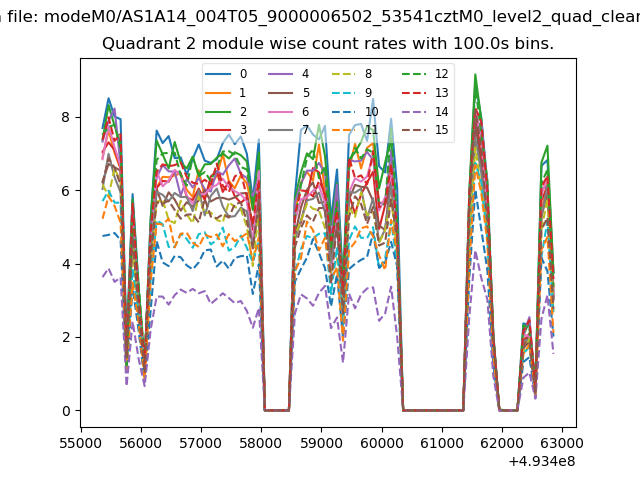

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

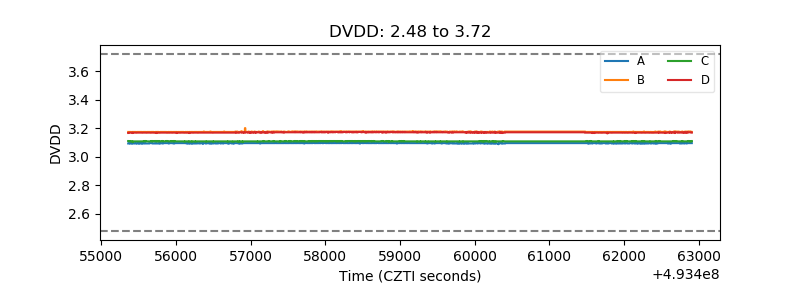

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

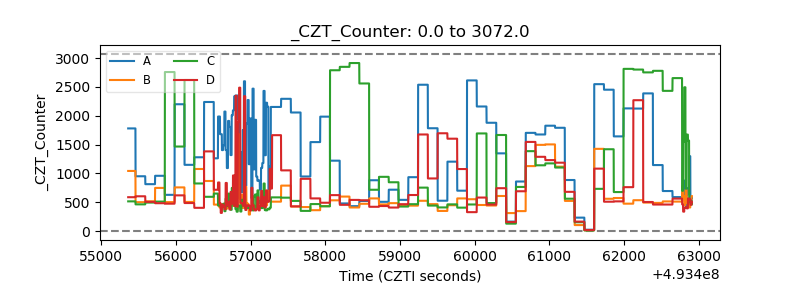

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

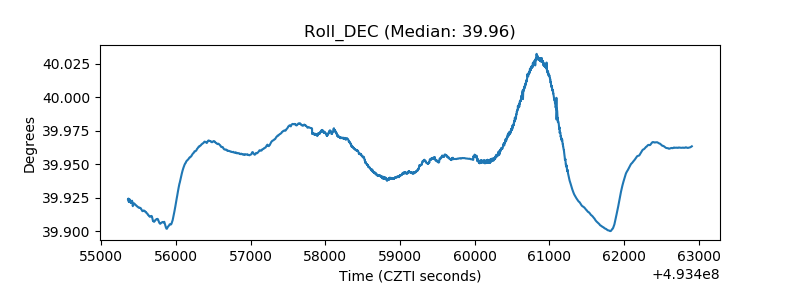

| _Roll_DEC |  |

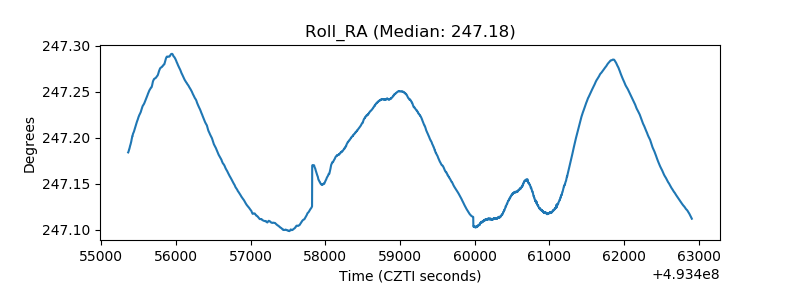

| _Roll_RA |  |
| Veto Counter |  |
