| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53546cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53546cztM0_level2_quad_clean.evt |
| Size (bytes) | 762,016,320 | 83,453,760 |
| Size | 726.7 MB | 79.6 MB |
| Events in quadrant A | 6,583,352 | 561,654 |
| Events in quadrant B | 3,407,082 | 672,862 |
| Events in quadrant C | 12,242,783 | 305,804 |
| Events in quadrant D | 5,466,551 | 529,866 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24163 | 3 |
| B | 0 | 14597 | 1 |
| C | 0 | 40755 | 1 |
| D | 0 | 20832 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6548 | 1076 | 16.432498% |
| B | 6549 | 136 | 2.076653% |
| C | 6549 | 3589 | 54.802260% |
| D | 6549 | 678 | 10.352726% |

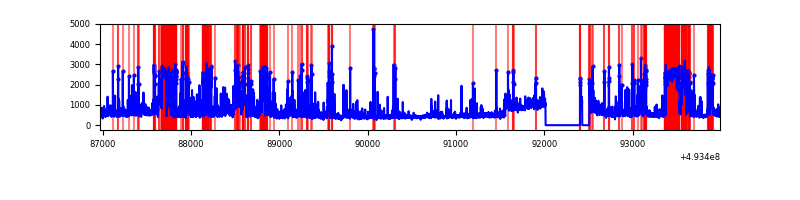

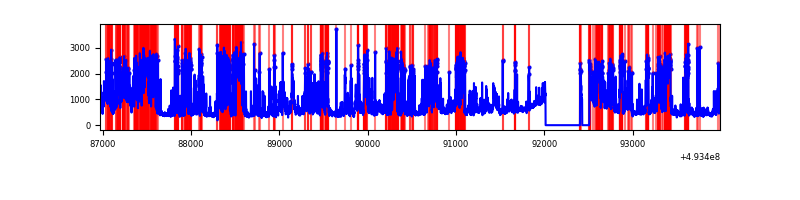

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7018 | 6549 | 860 | 860 | 12.25% | 13.13% |  |
| B | 7019 | 6551 | 20 | 20 | 0.28% | 0.31% |  |
| C | 7019 | 6549 | 3506 | 3506 | 49.95% | 53.53% |  |
| D | 7019 | 6551 | 574 | 574 | 8.18% | 8.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 3409687 | 19969.84 | 683 | 665 | 170.7 |
| A | 3 | 62 | 193012 | 1126.76 | 683 | 665 | 170.7 |
| A | 15 | 174 | 139746 | 814.73 | 683 | 665 | 170.7 |
| B | 7 | 0 | 136192 | 878.81 | 714 | 689 | 154.2 |
| B | 0 | 213 | 90833 | 584.63 | 714 | 689 | 154.2 |
| B | 5 | 185 | 87352 | 562.06 | 714 | 689 | 154.2 |
| C | 1 | 241 | 8604156 | 63273.27 | 490 | 487 | 136.0 |
| C | 15 | 224 | 1177179 | 8653.65 | 490 | 487 | 136.0 |
| C | 3 | 242 | 123275 | 903.01 | 490 | 487 | 136.0 |
| D | 13 | 153 | 1377056 | 7152.94 | 673 | 644 | 192.4 |
| D | 10 | 172 | 460567 | 2390.13 | 673 | 644 | 192.4 |
| D | 7 | 96 | 148539 | 768.58 | 673 | 644 | 192.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

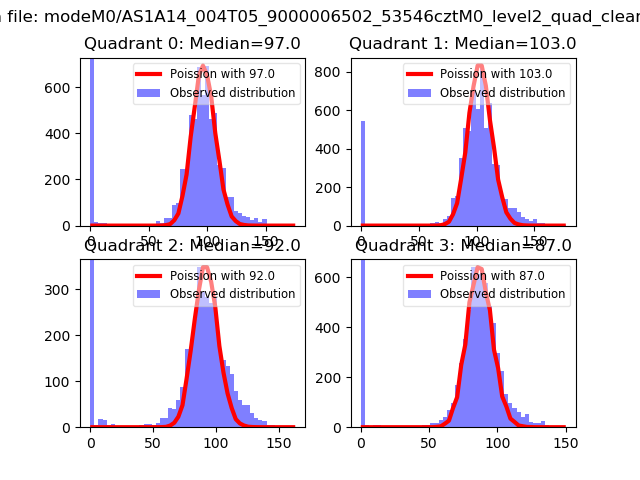

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

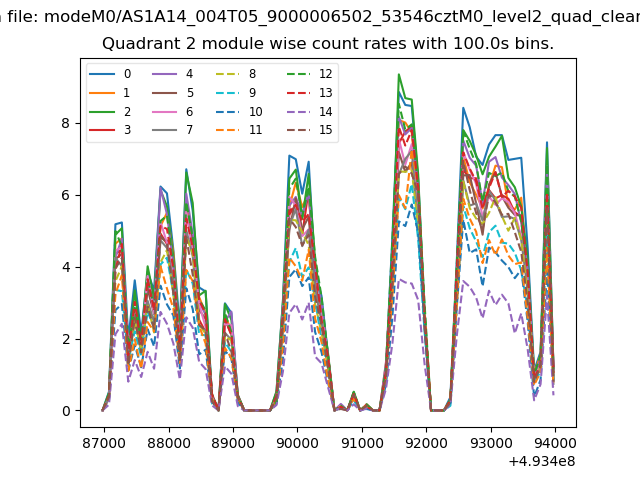

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

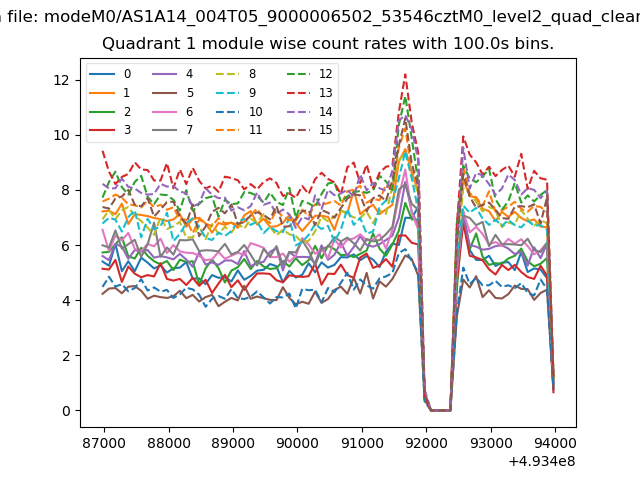

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

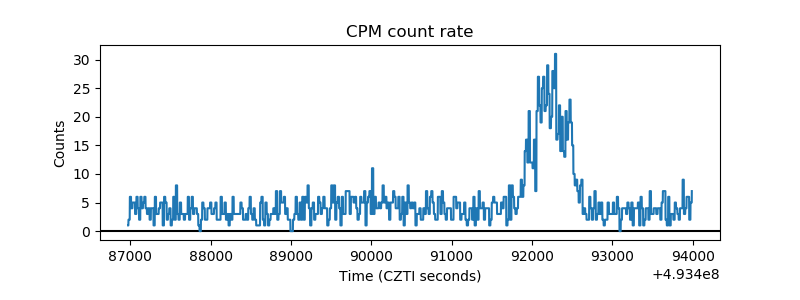

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

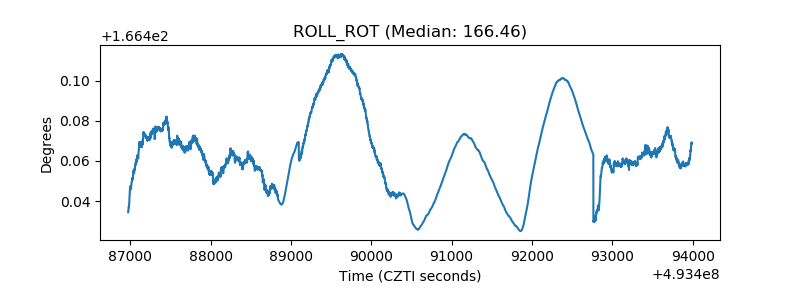

| _ROLL_ROT |  |

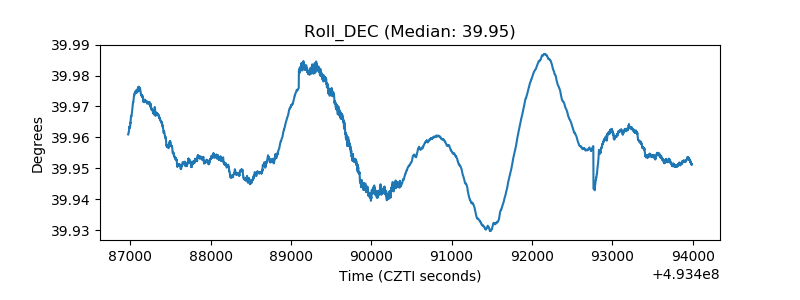

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
