| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53547cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53547cztM0_level2_quad_clean.evt |
| Size (bytes) | 907,234,560 | 101,278,080 |
| Size | 865.2 MB | 96.6 MB |
| Events in quadrant A | 7,011,268 | 697,131 |
| Events in quadrant B | 4,195,792 | 815,093 |
| Events in quadrant C | 14,299,502 | 373,206 |
| Events in quadrant D | 7,463,643 | 630,359 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26370 | 1 |
| B | 0 | 18074 | 1 |
| C | 0 | 47849 | 7 |
| D | 0 | 27693 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7918 | 993 | 12.541046% |
| B | 7918 | 123 | 1.553423% |
| C | 7917 | 4148 | 52.393583% |
| D | 7917 | 998 | 12.605785% |

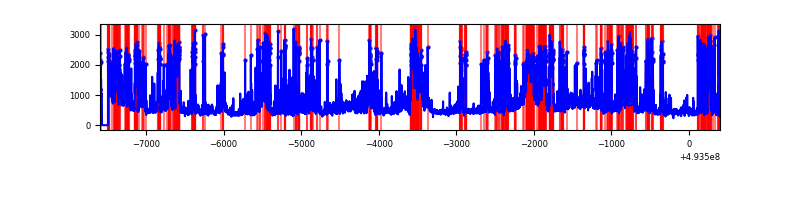

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7998 | 7918 | 766 | 766 | 9.58% | 9.67% |  |
| B | 7998 | 7919 | 39 | 39 | 0.49% | 0.49% |  |
| C | 7997 | 7917 | 4043 | 4043 | 50.56% | 51.07% |  |
| D | 7996 | 7917 | 948 | 948 | 11.86% | 11.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 2826968 | 13658.01 | 835 | 814 | 206.9 |
| A | 15 | 174 | 519143 | 2504.94 | 835 | 814 | 206.9 |
| A | 3 | 62 | 215348 | 1036.78 | 835 | 814 | 206.9 |
| B | 5 | 185 | 280694 | 1524.81 | 863 | 833 | 183.5 |
| B | 2 | 136 | 100507 | 543.07 | 863 | 833 | 183.5 |
| B | 0 | 213 | 64654 | 347.73 | 863 | 833 | 183.5 |
| C | 1 | 241 | 7903291 | 47995.82 | 592 | 586 | 164.7 |
| C | 15 | 224 | 2897262 | 17592.5 | 592 | 586 | 164.7 |
| C | 7 | 64 | 599299 | 3636.19 | 592 | 586 | 164.7 |
| D | 13 | 153 | 1363414 | 5851.8 | 807 | 770 | 232.9 |
| D | 15 | 94 | 889553 | 3816.83 | 807 | 770 | 232.9 |
| D | 7 | 110 | 766128 | 3286.79 | 807 | 770 | 232.9 |

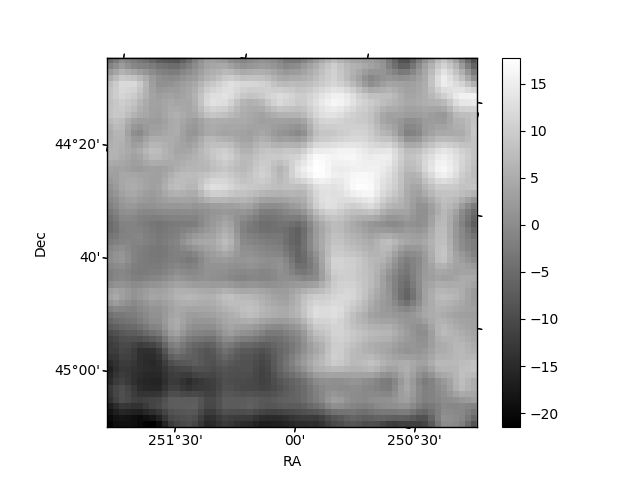

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

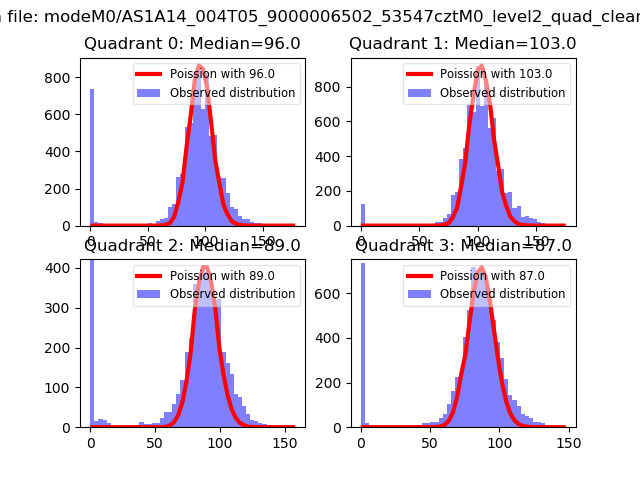

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

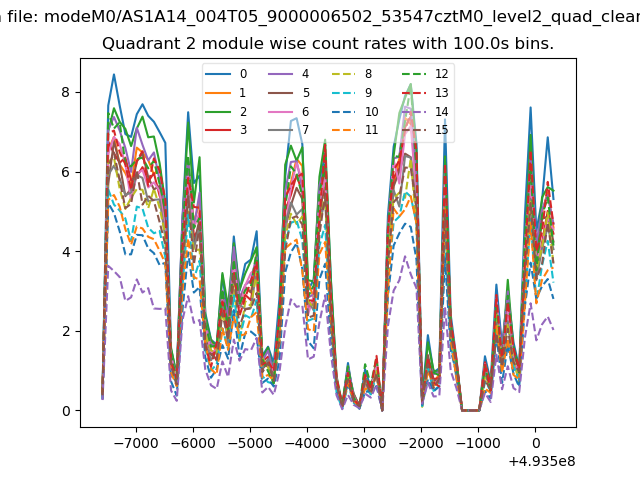

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

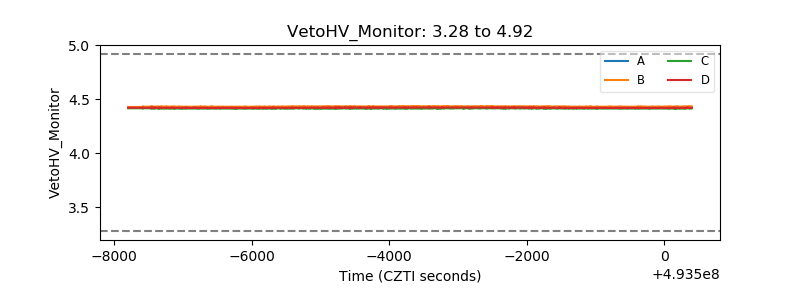

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

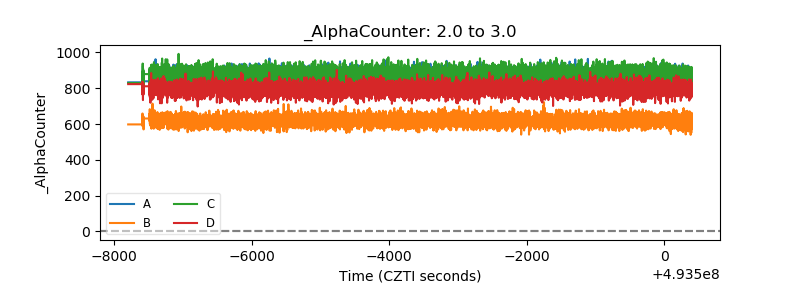

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

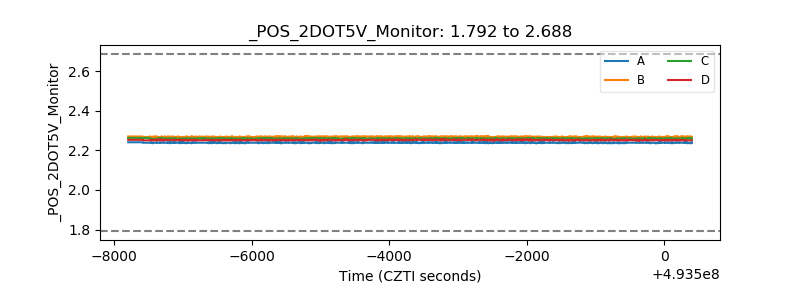

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

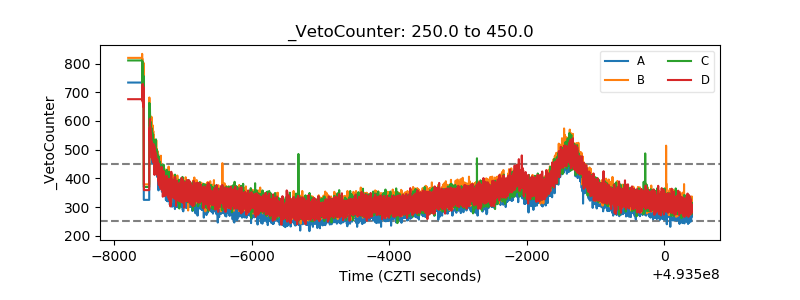

| Veto Counter |  |
