| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53558cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53558cztM0_level2_quad_clean.evt |
| Size (bytes) | 724,890,240 | 81,676,800 |
| Size | 691.3 MB | 77.9 MB |
| Events in quadrant A | 8,942,256 | 442,011 |
| Events in quadrant B | 3,957,279 | 652,195 |
| Events in quadrant C | 8,648,044 | 420,224 |
| Events in quadrant D | 4,817,745 | 536,632 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30723 | 1 |
| B | 0 | 15851 | 1 |
| C | 0 | 29838 | 1 |
| D | 0 | 18445 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6042 | 2130 | 35.253227% |
| B | 6042 | 195 | 3.227408% |
| C | 6042 | 2078 | 34.392585% |
| D | 6042 | 421 | 6.967891% |

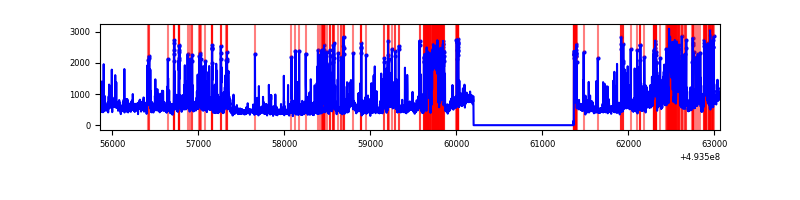

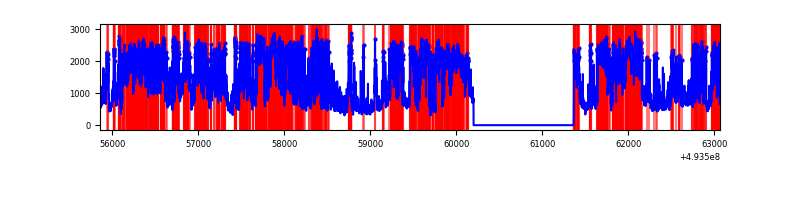

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7206 | 6042 | 1865 | 1865 | 25.88% | 30.87% |  |
| B | 7207 | 6043 | 41 | 41 | 0.57% | 0.68% |  |
| C | 7207 | 6043 | 1828 | 1828 | 25.36% | 30.25% |  |
| D | 7207 | 6043 | 386 | 386 | 5.36% | 6.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 3375697 | 23055.51 | 587 | 573 | 146.4 |
| A | 3 | 62 | 1086697 | 7419.33 | 587 | 573 | 146.4 |
| A | 7 | 206 | 1024223 | 6992.57 | 587 | 573 | 146.4 |
| B | 10 | 254 | 583233 | 4078.72 | 666 | 643 | 142.8 |
| B | 5 | 185 | 229126 | 1599.61 | 666 | 643 | 142.8 |
| B | 10 | 247 | 109399 | 761.4 | 666 | 643 | 142.8 |
| C | 12 | 254 | 3236302 | 21308.07 | 550 | 545 | 151.9 |
| C | 15 | 224 | 1174435 | 7730.29 | 550 | 545 | 151.9 |
| C | 1 | 241 | 1102140 | 7254.21 | 550 | 545 | 151.9 |
| D | 2 | 16 | 348757 | 1868.34 | 655 | 626 | 186.3 |
| D | 2 | 62 | 325943 | 1745.9 | 655 | 626 | 186.3 |
| D | 2 | 153 | 255418 | 1367.41 | 655 | 626 | 186.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

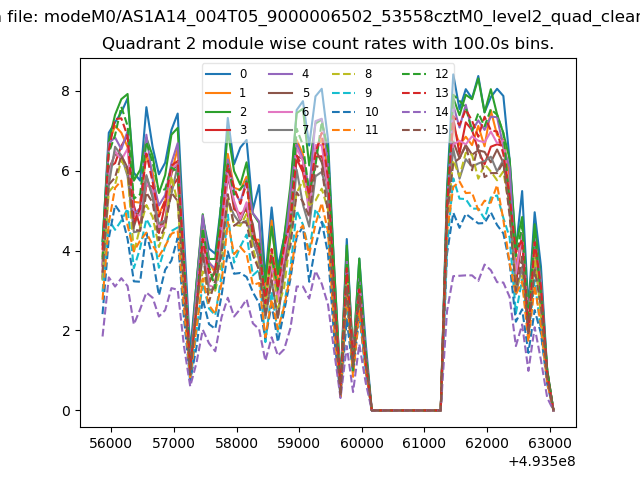

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

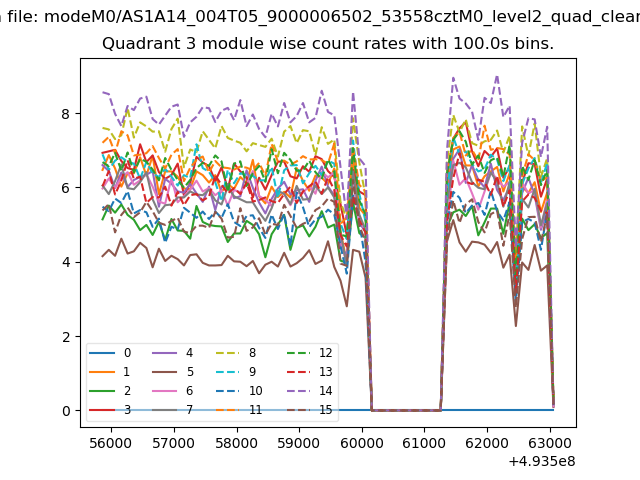

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

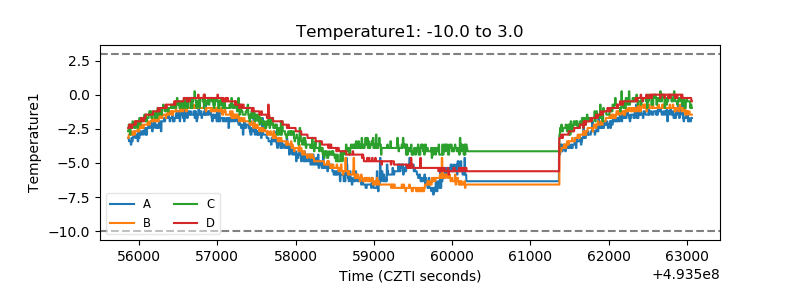

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

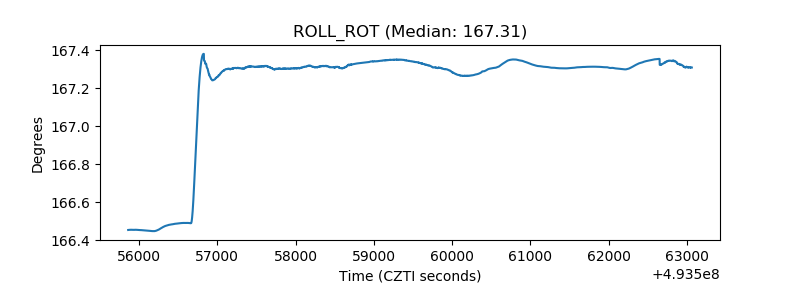

| _ROLL_ROT |  |
| _Roll_DEC |  |

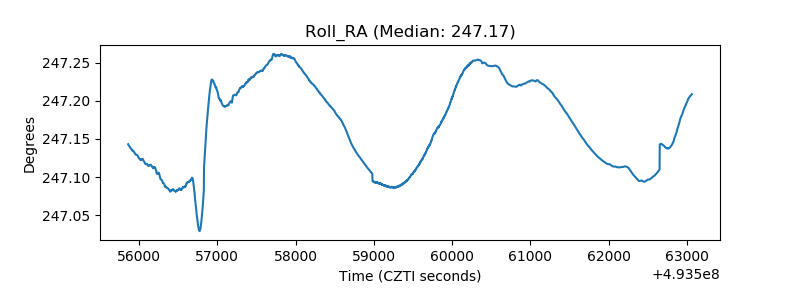

| _Roll_RA |  |
| Veto Counter |  |
