| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53569cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53569cztM0_level2_quad_clean.evt |
| Size (bytes) | 866,243,520 | 88,136,640 |
| Size | 826.1 MB | 84.1 MB |
| Events in quadrant A | 7,723,428 | 590,680 |
| Events in quadrant B | 4,011,946 | 719,995 |
| Events in quadrant C | 7,749,448 | 529,986 |
| Events in quadrant D | 12,038,091 | 338,765 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27823 | 6 |
| B | 0 | 16599 | 2 |
| C | 0 | 27863 | 2 |
| D | 0 | 40709 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7020 | 1204 | 17.150997% |
| B | 7020 | 226 | 3.219373% |
| C | 7021 | 1520 | 21.649338% |
| D | 7021 | 3273 | 46.617291% |

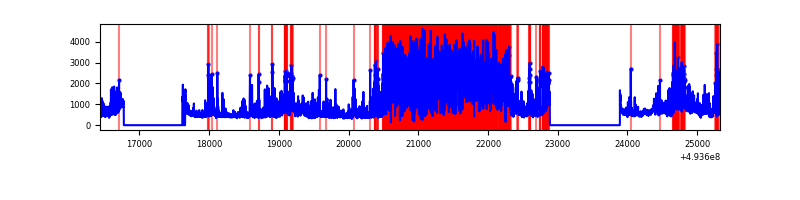

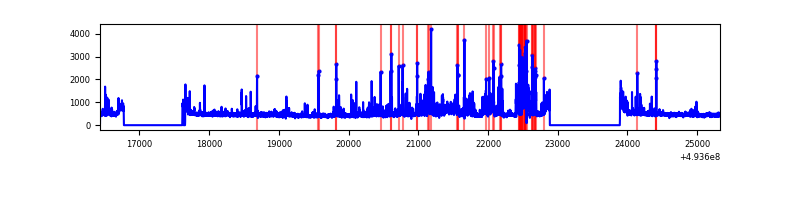

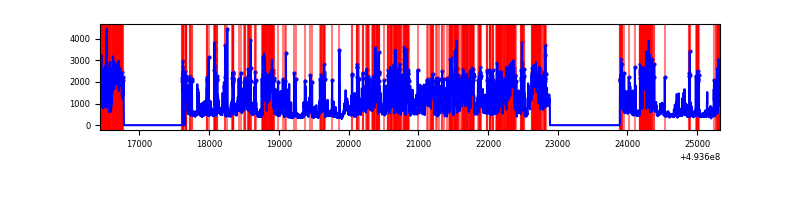

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8890 | 7023 | 947 | 947 | 10.65% | 13.48% |  |
| B | 8890 | 7023 | 62 | 62 | 0.70% | 0.88% |  |
| C | 8891 | 7024 | 1201 | 1201 | 13.51% | 17.10% |  |
| D | 8891 | 7022 | 2431 | 2431 | 27.34% | 34.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 2819299 | 15397.25 | 734 | 715 | 183.1 |
| A | 3 | 63 | 944190 | 5153.98 | 734 | 715 | 183.1 |
| A | 15 | 174 | 430374 | 2347.12 | 734 | 715 | 183.1 |
| B | 2 | 249 | 418964 | 2529.63 | 772 | 744 | 165.3 |
| B | 5 | 185 | 99631 | 598.12 | 772 | 744 | 165.3 |
| B | 0 | 213 | 95524 | 573.28 | 772 | 744 | 165.3 |
| C | 15 | 224 | 3149423 | 16669.87 | 687 | 683 | 188.9 |
| C | 1 | 241 | 641697 | 3393.62 | 687 | 683 | 188.9 |
| C | 15 | 157 | 260119 | 1373.49 | 687 | 683 | 188.9 |
| D | 8 | 176 | 6158448 | 44422.63 | 484 | 461 | 138.6 |
| D | 2 | 172 | 3580525 | 25825.95 | 484 | 461 | 138.6 |
| D | 7 | 70 | 73112 | 524.09 | 484 | 461 | 138.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

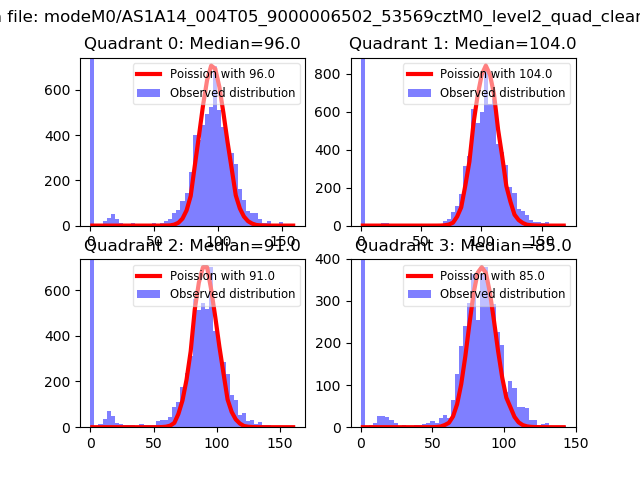

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

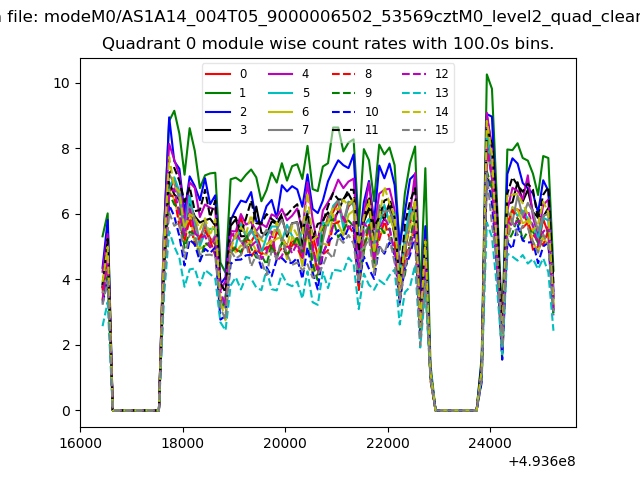

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

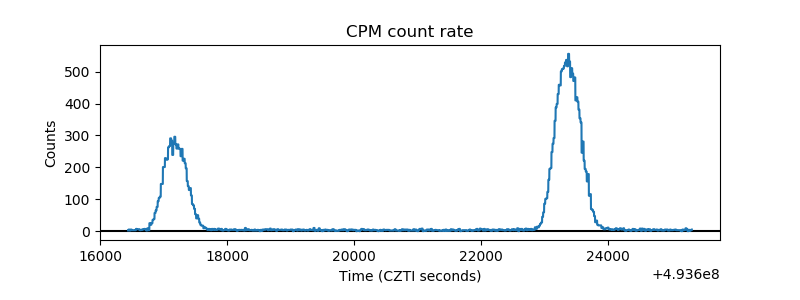

| _CPM_Rate |  |

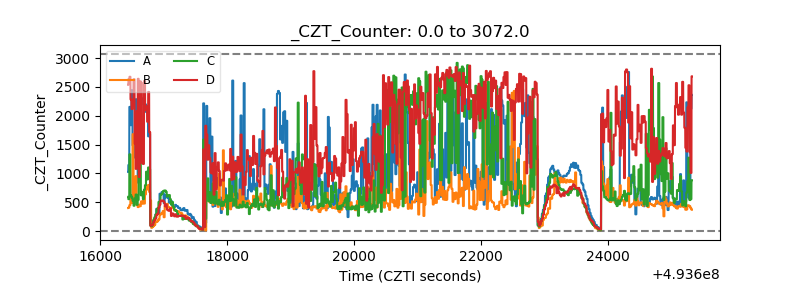

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

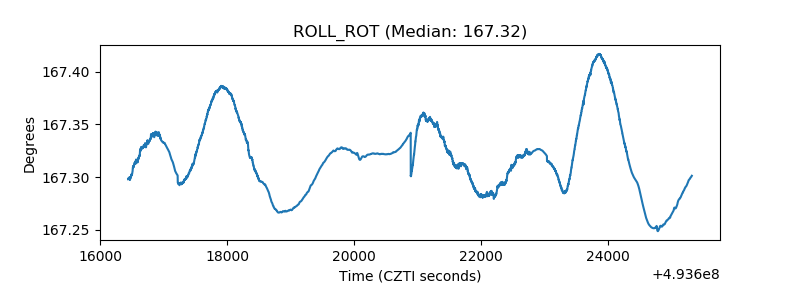

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
