| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T05_9000006502_53600cztM0_level2.fits | modeM0/AS1A14_004T05_9000006502_53600cztM0_level2_quad_clean.evt |
| Size (bytes) | 682,027,200 | 88,335,360 |
| Size | 650.4 MB | 84.2 MB |
| Events in quadrant A | 4,048,474 | 647,017 |
| Events in quadrant B | 4,107,709 | 692,684 |
| Events in quadrant C | 8,396,377 | 480,923 |
| Events in quadrant D | 8,206,600 | 415,081 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16282 | 1 |
| B | 0 | 16204 | 1 |
| C | 0 | 29271 | 3 |
| D | 0 | 28735 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6289 | 185 | 2.941644% |
| B | 6290 | 217 | 3.449921% |
| C | 6289 | 1697 | 26.983622% |
| D | 6289 | 1960 | 31.165527% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7491 | 6292 | 74 | 74 | 0.99% | 1.18% |  |
| B | 7492 | 6293 | 130 | 130 | 1.74% | 2.07% |  |
| C | 7491 | 6292 | 1542 | 1542 | 20.58% | 24.51% |  |
| D | 7491 | 6292 | 1867 | 1867 | 24.92% | 29.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 797215 | 4482.87 | 721 | 703 | 177.7 |
| A | 3 | 62 | 252859 | 1419.17 | 721 | 703 | 177.7 |
| A | 3 | 63 | 70254 | 391.44 | 721 | 703 | 177.7 |
| B | 5 | 172 | 538655 | 3536.7 | 709 | 685 | 152.1 |
| B | 10 | 28 | 125712 | 821.95 | 709 | 685 | 152.1 |
| B | 0 | 213 | 93818 | 612.27 | 709 | 685 | 152.1 |
| C | 15 | 224 | 2584882 | 15451.79 | 607 | 601 | 167.2 |
| C | 1 | 241 | 2121112 | 12678.84 | 607 | 601 | 167.2 |
| C | 13 | 3 | 460810 | 2751.66 | 607 | 601 | 167.2 |
| D | 8 | 176 | 4873620 | 28718.35 | 588 | 560 | 169.7 |
| D | 10 | 172 | 229780 | 1350.86 | 588 | 560 | 169.7 |
| D | 15 | 107 | 114221 | 669.84 | 588 | 560 | 169.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

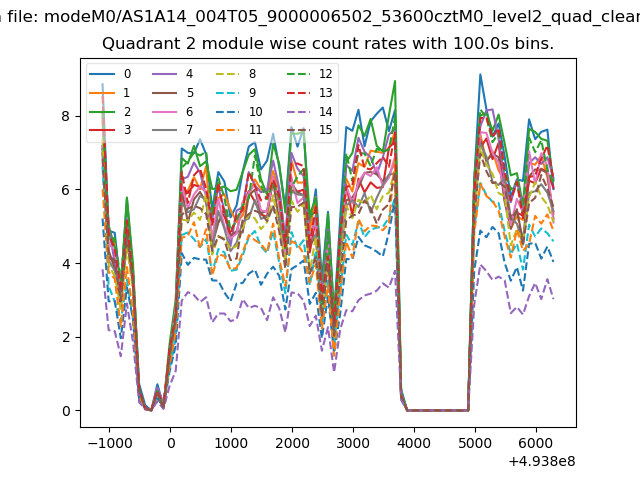

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

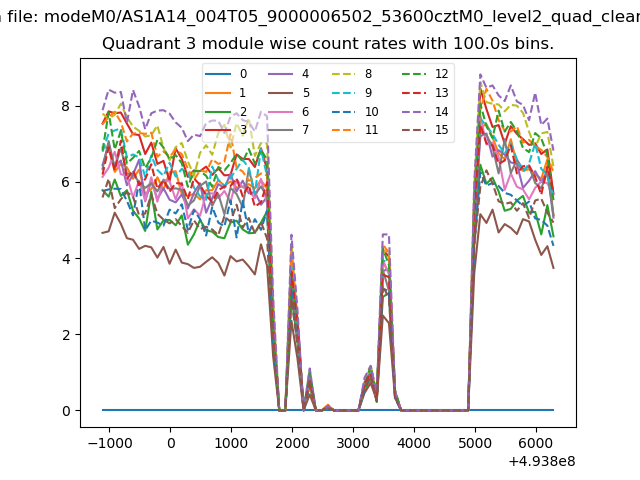

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

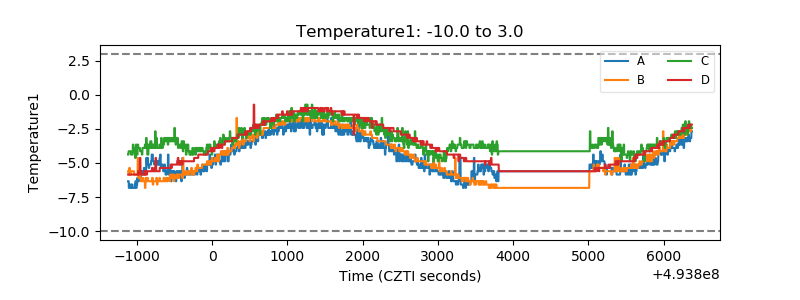

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

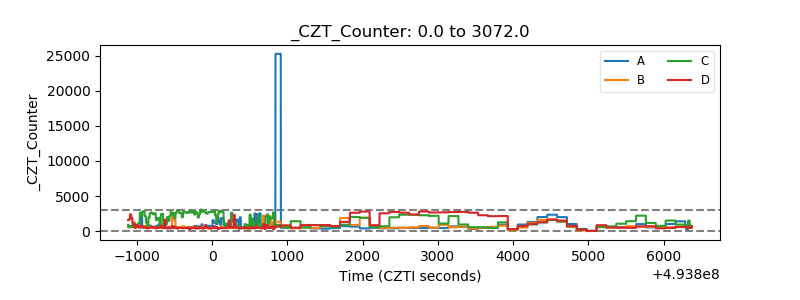

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

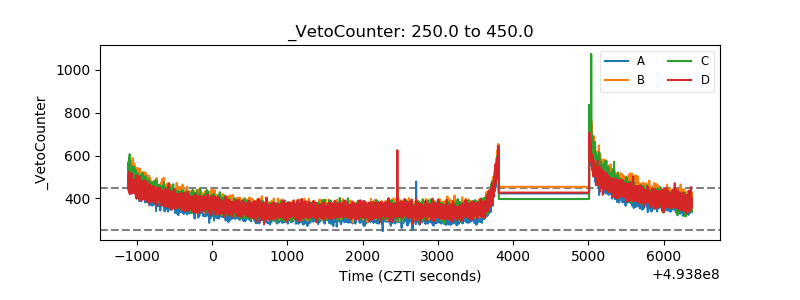

| Veto Counter |  |
