| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T05_9000006504_53671cztM0_level2.fits | modeM0/AS1A14_022T05_9000006504_53671cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,234,123,200 | 63,380,160 |
| Size | 1.1 GB | 60.4 MB |
| Events in quadrant A | 15,317,016 | 185,315 |
| Events in quadrant B | 4,925,602 | 684,440 |
| Events in quadrant C | 12,902,495 | 272,868 |
| Events in quadrant D | 12,015,018 | 301,577 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50195 | 2 |
| B | 0 | 19204 | 2 |
| C | 0 | 43033 | 2 |
| D | 0 | 40391 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6799 | 5149 | 75.731725% |
| B | 6799 | 321 | 4.721283% |
| C | 6799 | 4101 | 60.317694% |
| D | 6798 | 3514 | 51.691674% |

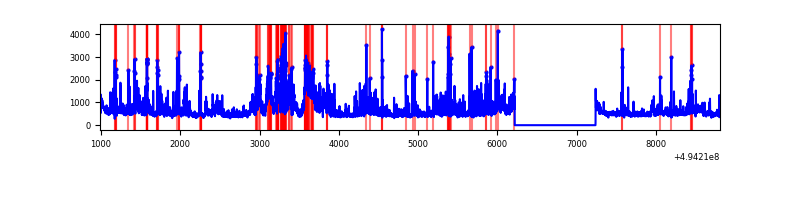

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

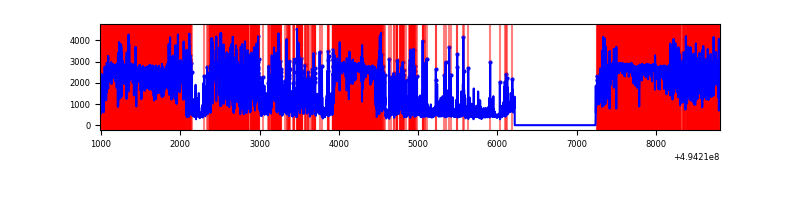

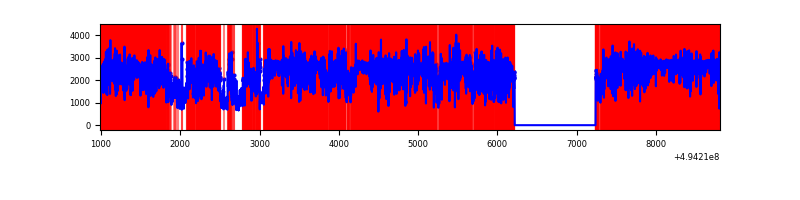

| A | 7818 | 6799 | 4867 | 4867 | 62.25% | 71.58% |  |

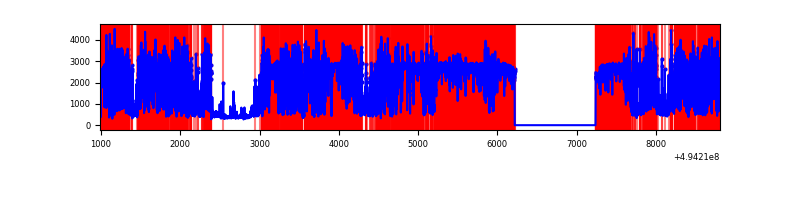

| B | 7819 | 6800 | 175 | 175 | 2.24% | 2.57% |  |
| C | 7819 | 6799 | 3665 | 3665 | 46.87% | 53.90% |  |
| D | 7818 | 6799 | 3200 | 3200 | 40.93% | 47.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 8507864 | 71417.39 | 480 | 468 | 119.1 |
| A | 3 | 78 | 4386052 | 36815.85 | 480 | 468 | 119.1 |
| A | 15 | 174 | 268963 | 2253.95 | 480 | 468 | 119.1 |
| B | 10 | 254 | 873054 | 5530.27 | 732 | 705 | 157.7 |
| B | 5 | 172 | 536916 | 3399.32 | 732 | 705 | 157.7 |
| B | 5 | 185 | 234764 | 1483.82 | 732 | 705 | 157.7 |
| C | 15 | 224 | 6016703 | 46759.02 | 460 | 458 | 128.7 |
| C | 1 | 241 | 4566596 | 35488.6 | 460 | 458 | 128.7 |
| C | 10 | 19 | 72739 | 561.78 | 460 | 458 | 128.7 |
| D | 8 | 176 | 8966185 | 68178.92 | 453 | 432 | 131.5 |
| D | 3 | 12 | 289855 | 2200.88 | 453 | 432 | 131.5 |
| D | 3 | 224 | 236763 | 1797.15 | 453 | 432 | 131.5 |

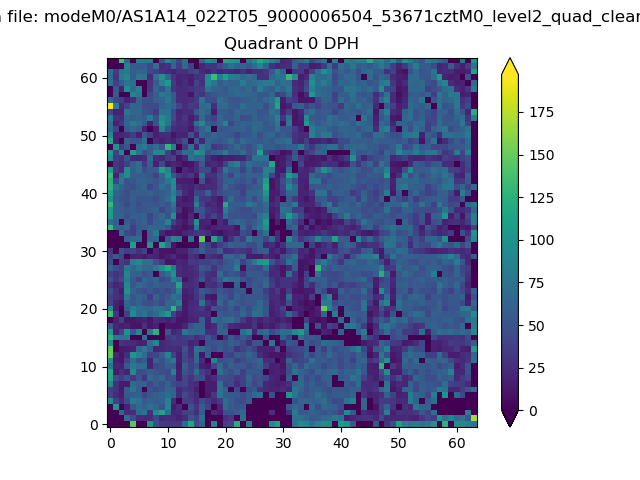

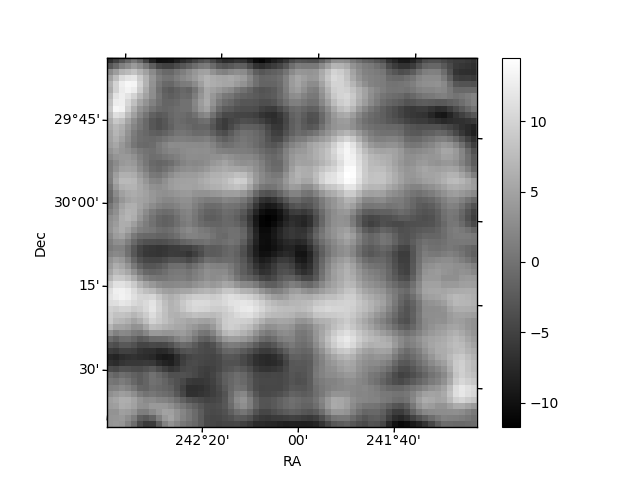

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

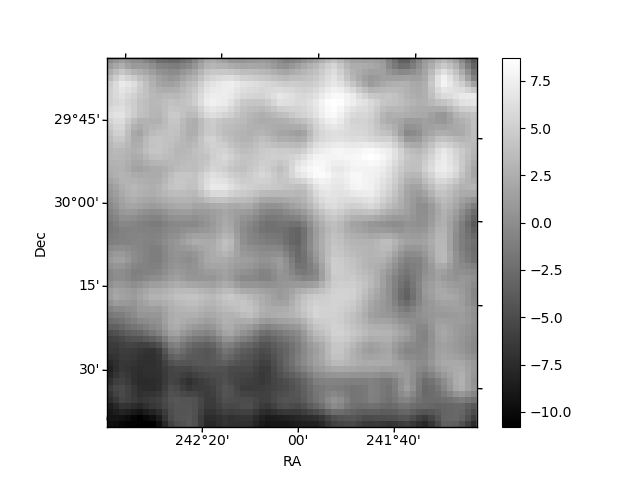

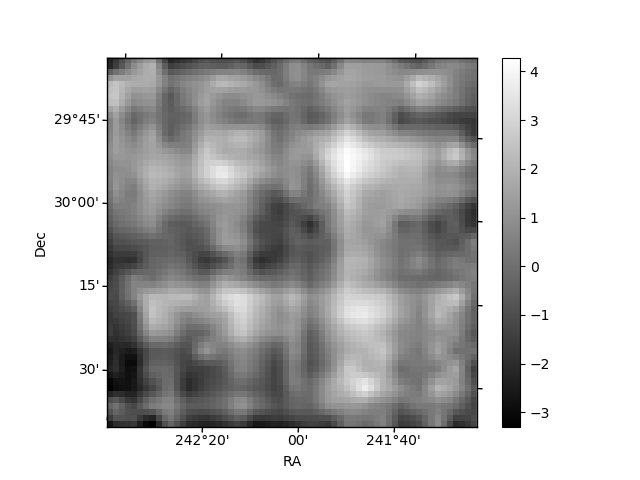

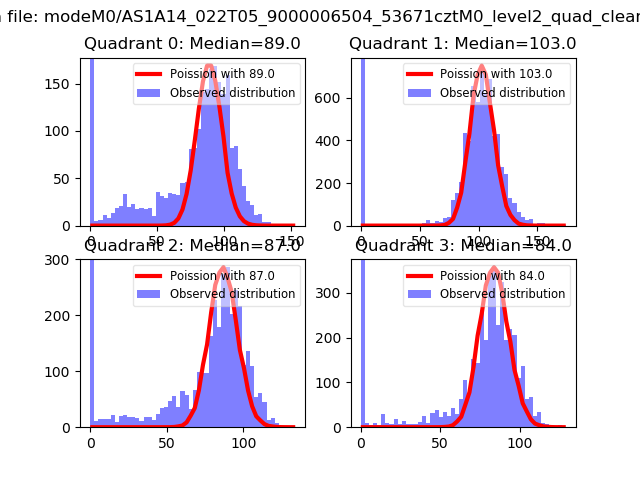

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

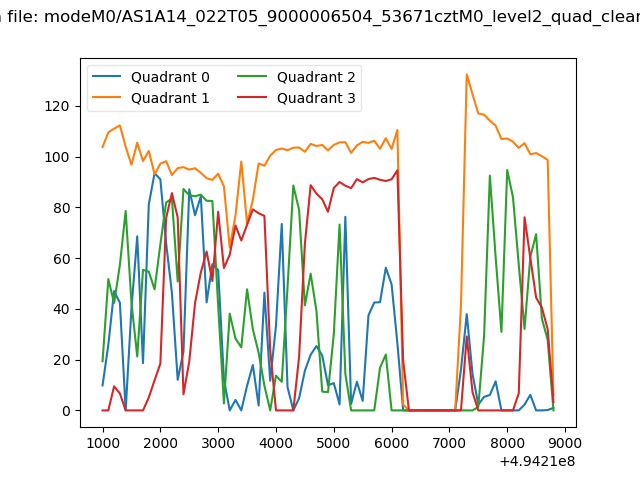

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

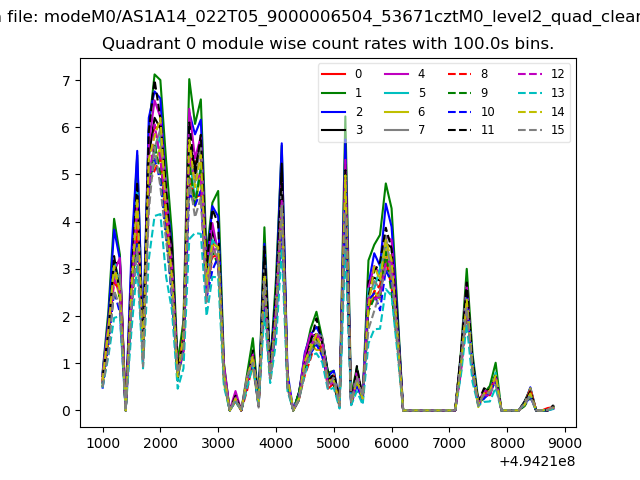

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

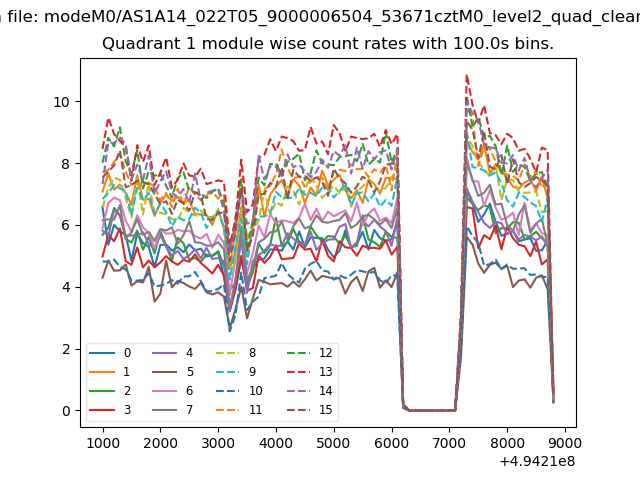

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

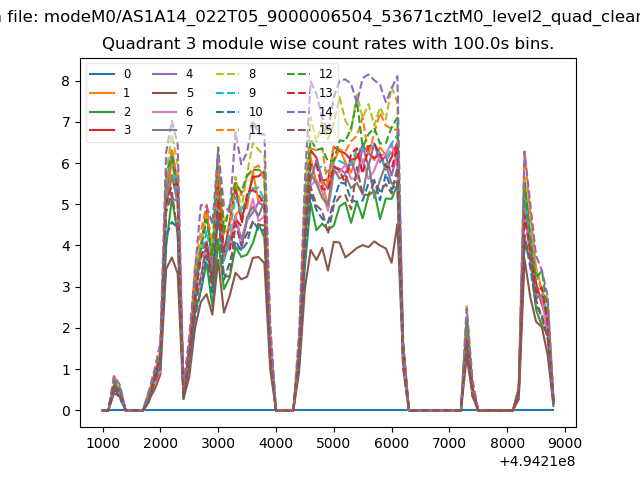

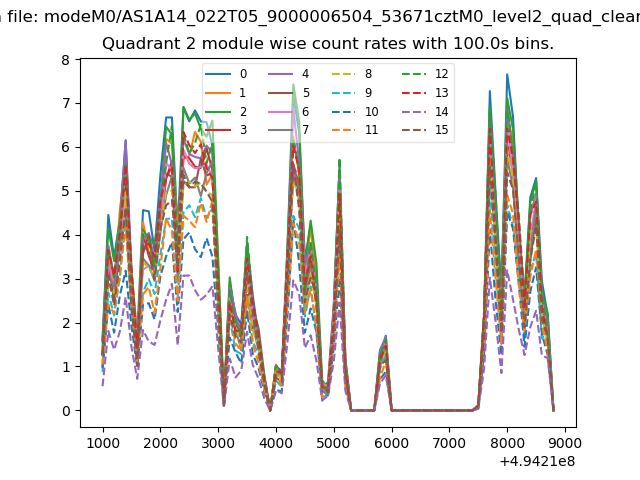

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

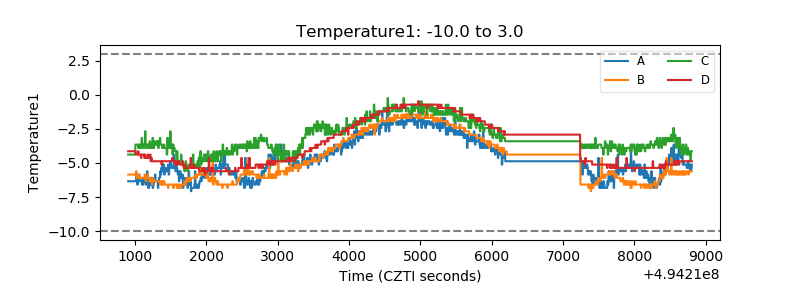

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

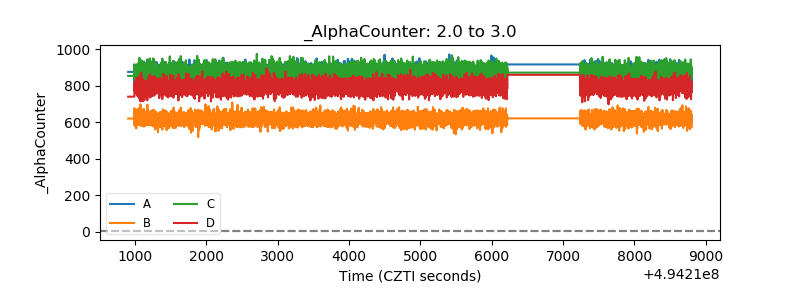

| Alpha Counter |  |
| _CPM_Rate |  |

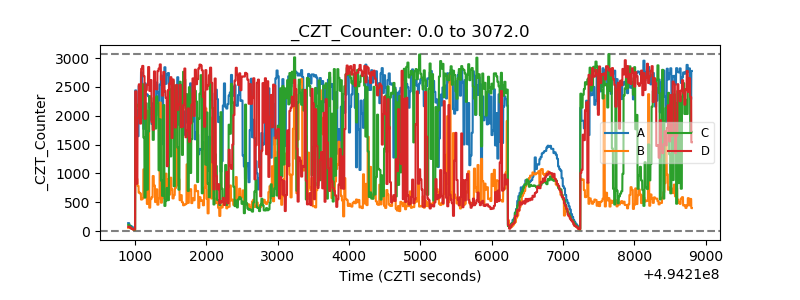

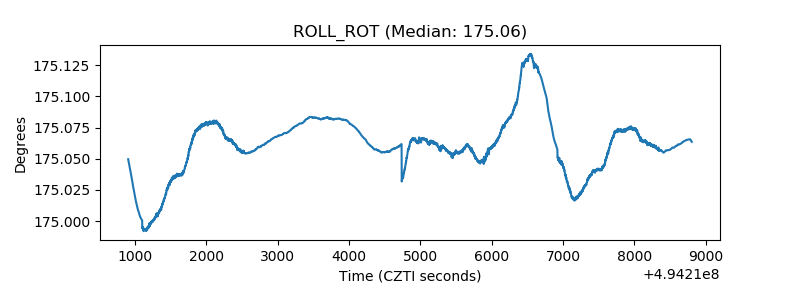

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

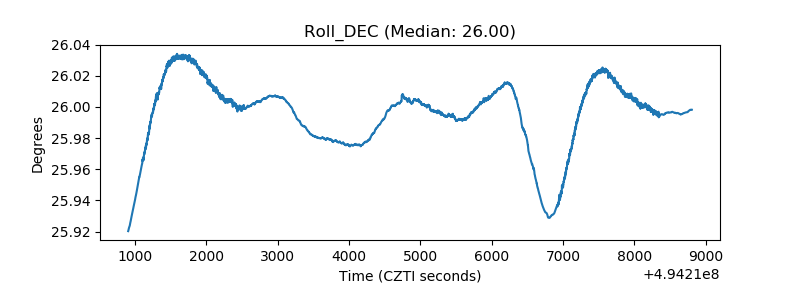

| _Roll_DEC |  |

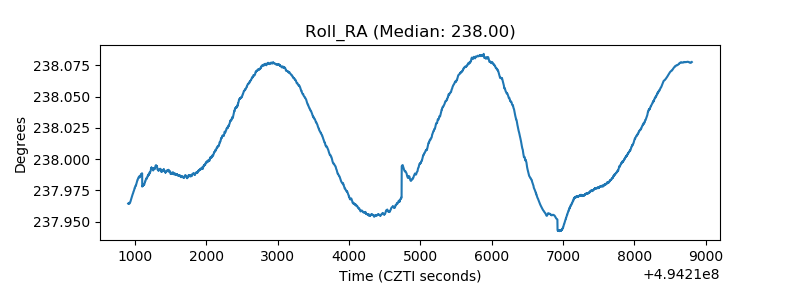

| _Roll_RA |  |

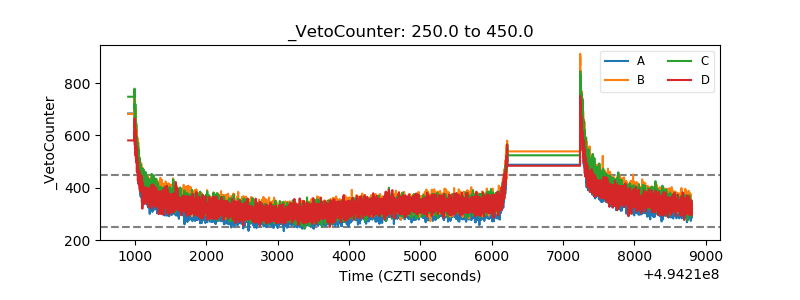

| Veto Counter |  |
