| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T05_9000006504_53684cztM0_level2.fits | modeM0/AS1A14_022T05_9000006504_53684cztM0_level2_quad_clean.evt |
| Size (bytes) | 964,261,440 | 72,829,440 |
| Size | 919.6 MB | 69.5 MB |
| Events in quadrant A | 14,381,722 | 234,324 |
| Events in quadrant B | 3,723,442 | 656,209 |
| Events in quadrant C | 12,597,485 | 303,548 |
| Events in quadrant D | 4,479,700 | 549,714 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47282 | 1 |
| B | 0 | 15834 | 5 |
| C | 0 | 41906 | 1 |
| D | 0 | 18051 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6619 | 4533 | 68.484665% |
| B | 6618 | 211 | 3.188274% |
| C | 6619 | 3648 | 55.114066% |
| D | 6619 | 285 | 4.305786% |

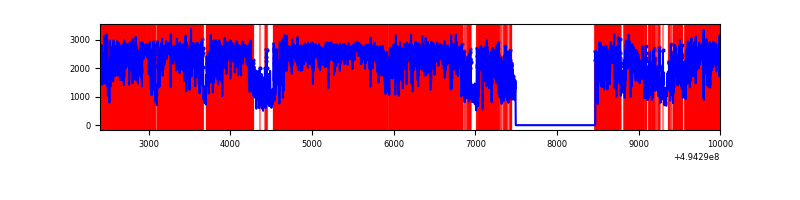

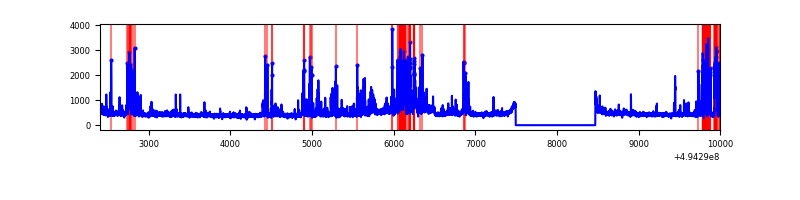

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7593 | 6618 | 4505 | 4505 | 59.33% | 68.07% |  |
| B | 7592 | 6617 | 133 | 133 | 1.75% | 2.01% |  |
| C | 7593 | 6618 | 3529 | 3529 | 46.48% | 53.32% |  |
| D | 7594 | 6620 | 266 | 266 | 3.50% | 4.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 10971470 | 88209.32 | 492 | 479 | 124.4 |
| A | 3 | 78 | 459959 | 3694.33 | 492 | 479 | 124.4 |
| A | 14 | 254 | 444308 | 3568.49 | 492 | 479 | 124.4 |
| B | 5 | 185 | 755663 | 4972.67 | 693 | 667 | 151.8 |
| B | 7 | 0 | 87359 | 570.98 | 693 | 667 | 151.8 |
| B | 10 | 247 | 24661 | 158.03 | 693 | 667 | 151.8 |
| C | 1 | 241 | 5186119 | 39758.37 | 470 | 465 | 130.4 |
| C | 15 | 224 | 4705768 | 36075.52 | 470 | 465 | 130.4 |
| C | 7 | 64 | 209955 | 1606.16 | 470 | 465 | 130.4 |
| D | 10 | 172 | 701371 | 3607.54 | 673 | 643 | 194.2 |
| D | 7 | 70 | 295691 | 1518.99 | 673 | 643 | 194.2 |
| D | 2 | 153 | 224861 | 1154.33 | 673 | 643 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

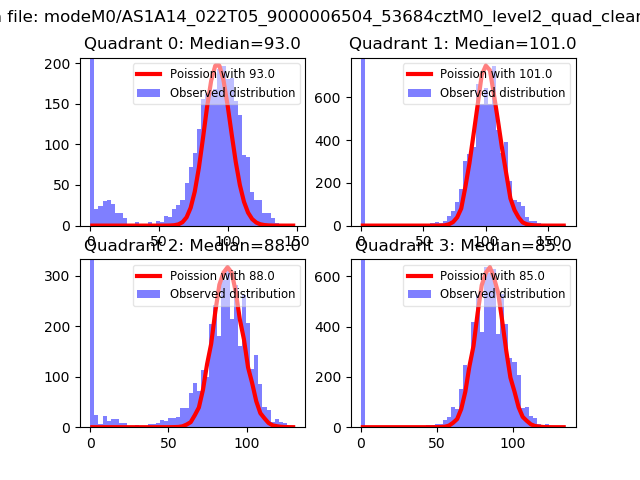

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

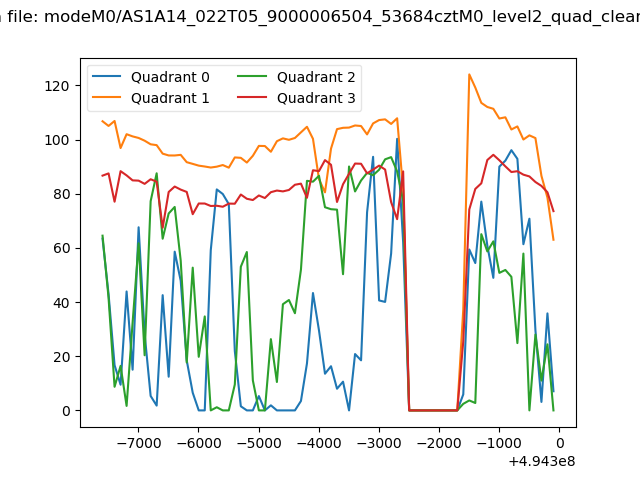

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

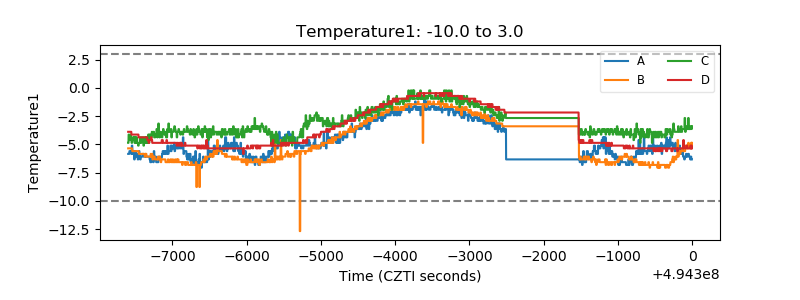

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

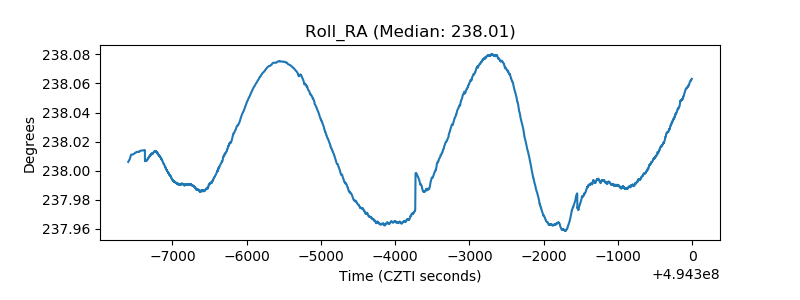

| _Roll_RA |  |

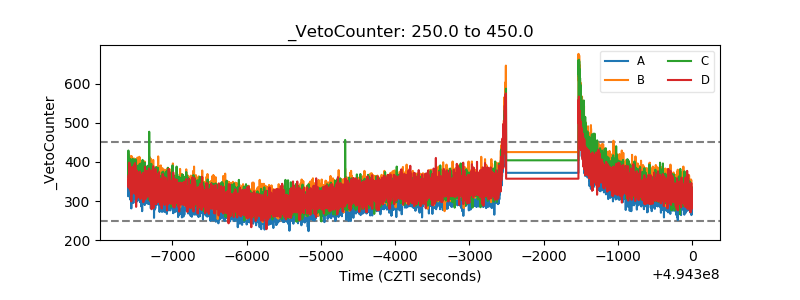

| Veto Counter |  |
