| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T05_9000006504_53689cztM0_level2.fits | modeM0/AS1A14_022T05_9000006504_53689cztM0_level2_quad_clean.evt |
| Size (bytes) | 957,335,040 | 76,512,960 |
| Size | 913.0 MB | 73.0 MB |
| Events in quadrant A | 11,961,134 | 344,019 |
| Events in quadrant B | 3,559,137 | 703,859 |
| Events in quadrant C | 12,774,590 | 284,735 |
| Events in quadrant D | 6,637,867 | 528,347 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40059 | 2 |
| B | 0 | 14898 | 2 |
| C | 0 | 42405 | 2 |
| D | 0 | 24240 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6531 | 3467 | 53.085286% |
| B | 6531 | 240 | 3.674782% |
| C | 6531 | 3978 | 60.909508% |
| D | 6531 | 988 | 15.127852% |

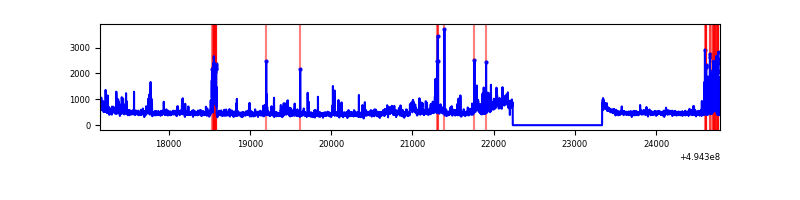

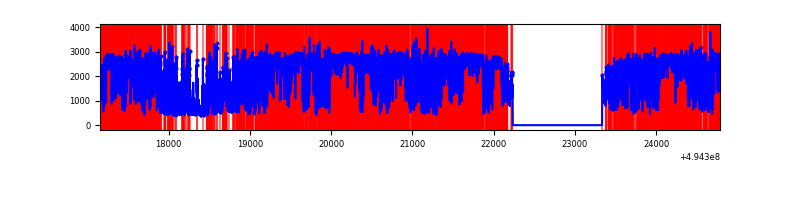

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6530 | 3184 | 3184 | 41.73% | 48.76% |  |
| B | 7631 | 6531 | 45 | 45 | 0.59% | 0.69% |  |
| C | 7630 | 6530 | 3679 | 3679 | 48.22% | 56.34% |  |
| D | 7631 | 6531 | 889 | 889 | 11.65% | 13.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 8419737 | 57393.27 | 591 | 576 | 146.7 |
| A | 3 | 78 | 540078 | 3677.78 | 591 | 576 | 146.7 |
| A | 12 | 115 | 236317 | 1607.04 | 591 | 576 | 146.7 |
| B | 5 | 185 | 234079 | 1470.08 | 738 | 713 | 158.7 |
| B | 10 | 254 | 169275 | 1061.85 | 738 | 713 | 158.7 |
| B | 8 | 128 | 67620 | 421.48 | 738 | 713 | 158.7 |
| C | 1 | 241 | 4659390 | 34227.78 | 495 | 493 | 136.1 |
| C | 15 | 224 | 4375608 | 32142.9 | 495 | 493 | 136.1 |
| C | 7 | 64 | 915752 | 6724.18 | 495 | 493 | 136.1 |
| D | 8 | 176 | 2764005 | 14273.37 | 684 | 654 | 193.6 |
| D | 11 | 245 | 250632 | 1291.2 | 684 | 654 | 193.6 |
| D | 2 | 153 | 184841 | 951.37 | 684 | 654 | 193.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

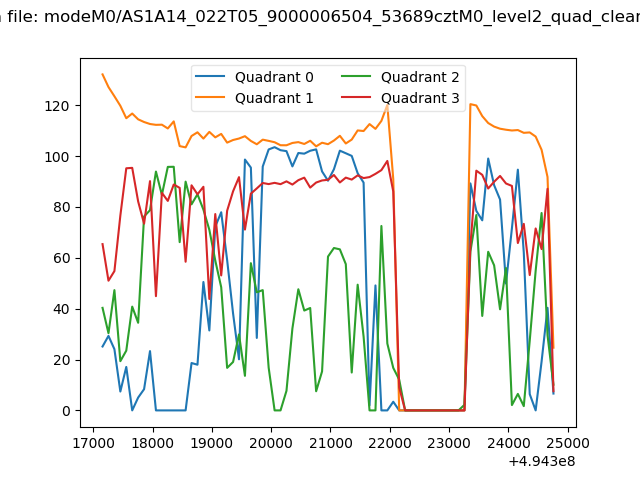

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

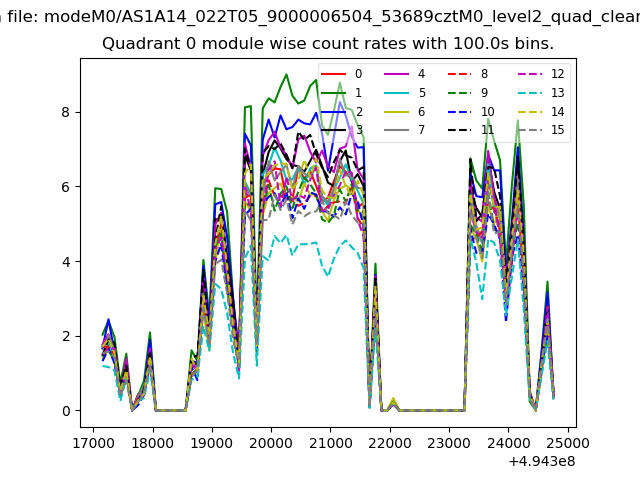

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

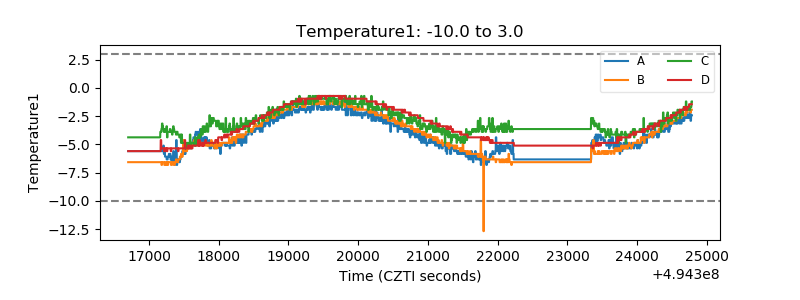

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

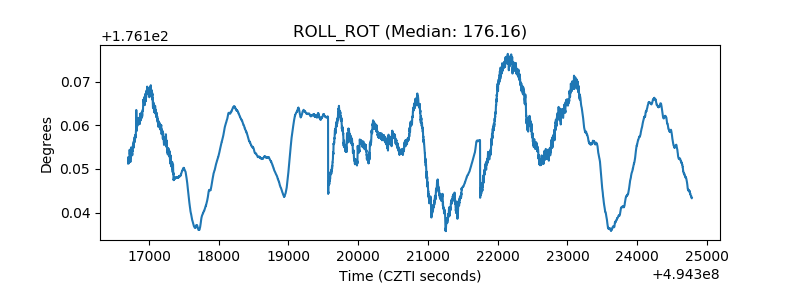

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

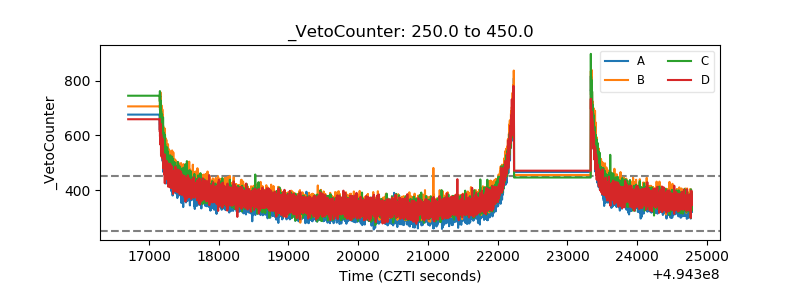

| Veto Counter |  |
