| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T05_9000006504_53691cztM0_level2.fits | modeM0/AS1A14_022T05_9000006504_53691cztM0_level2_quad_clean.evt |
| Size (bytes) | 936,645,120 | 83,154,240 |
| Size | 893.3 MB | 79.3 MB |
| Events in quadrant A | 13,510,554 | 307,601 |
| Events in quadrant B | 4,111,480 | 702,247 |
| Events in quadrant C | 10,642,519 | 451,583 |
| Events in quadrant D | 5,869,625 | 571,860 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44886 | 1 |
| B | 0 | 16963 | 1 |
| C | 0 | 36454 | 1 |
| D | 0 | 22220 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6952 | 4164 | 59.896433% |
| B | 6952 | 332 | 4.775604% |
| C | 6952 | 2458 | 35.356732% |
| D | 6952 | 566 | 8.141542% |

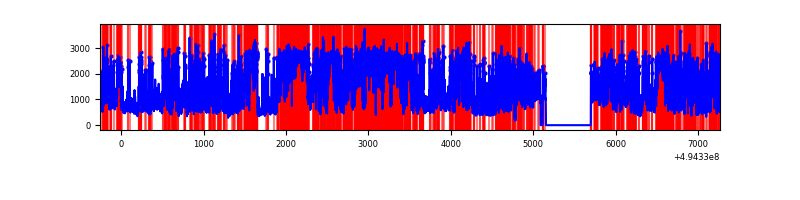

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7522 | 6952 | 3931 | 3931 | 52.26% | 56.54% |  |
| B | 7522 | 6952 | 143 | 143 | 1.90% | 2.06% |  |
| C | 7521 | 6951 | 2241 | 2241 | 29.80% | 32.24% |  |
| D | 7522 | 6952 | 467 | 467 | 6.21% | 6.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 7986096 | 54645.57 | 585 | 570 | 146.1 |
| A | 3 | 78 | 2462721 | 16848.69 | 585 | 570 | 146.1 |
| A | 15 | 174 | 326983 | 2233.67 | 585 | 570 | 146.1 |
| B | 5 | 185 | 620123 | 3816.25 | 751 | 724 | 162.3 |
| B | 7 | 0 | 158384 | 971.38 | 751 | 724 | 162.3 |
| B | 10 | 247 | 155835 | 955.67 | 751 | 724 | 162.3 |
| C | 15 | 224 | 3572401 | 20373.03 | 640 | 635 | 175.3 |
| C | 7 | 64 | 3024701 | 17249.0 | 640 | 635 | 175.3 |
| C | 13 | 3 | 640386 | 3649.08 | 640 | 635 | 175.3 |
| D | 10 | 172 | 655929 | 3136.93 | 731 | 699 | 208.9 |
| D | 2 | 62 | 525939 | 2514.6 | 731 | 699 | 208.9 |
| D | 2 | 37 | 423974 | 2026.44 | 731 | 699 | 208.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

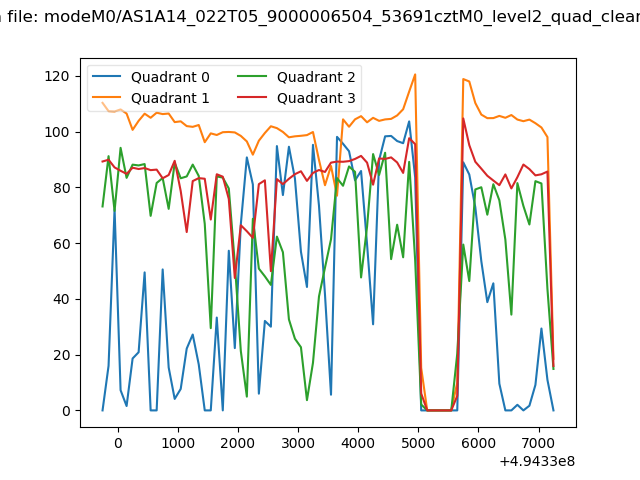

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

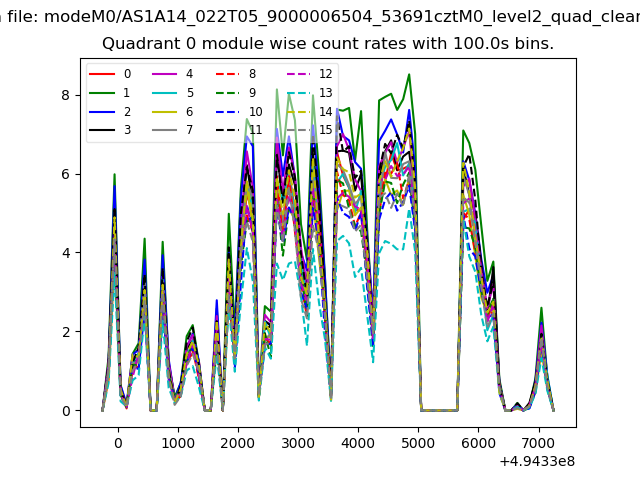

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

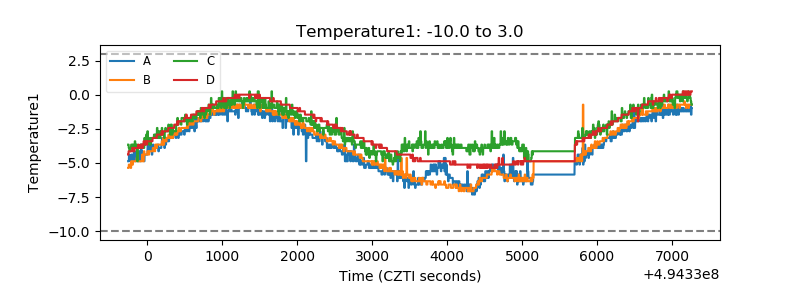

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

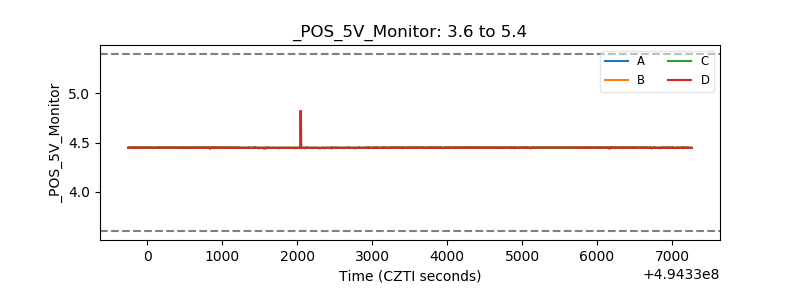

| +5 Volts monitor |  |

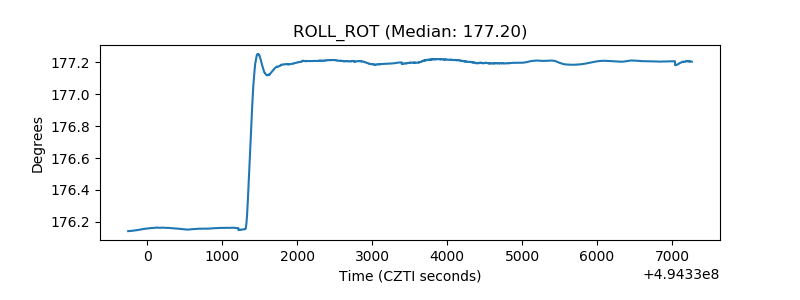

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

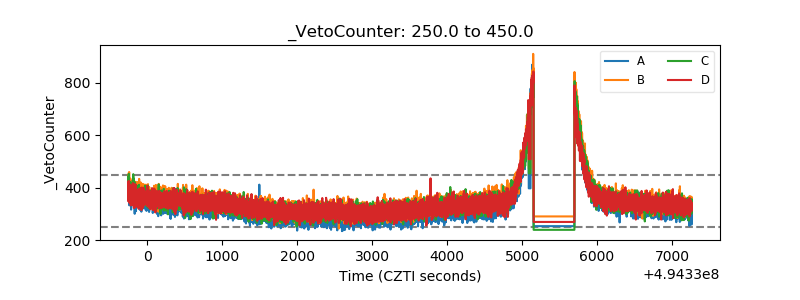

| Veto Counter |  |
