| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53712cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53712cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,832,940,800 | 193,515,840 |
| Size | 2.6 GB | 184.6 MB |
| Events in quadrant A | 40,526,532 | 567,018 |
| Events in quadrant B | 10,505,041 | 1,876,203 |
| Events in quadrant C | 35,923,693 | 603,988 |
| Events in quadrant D | 16,442,956 | 1,496,834 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 133515 | 3 |
| B | 0 | 45085 | 3 |
| C | 0 | 119655 | 17 |
| D | 0 | 62388 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19068 | 13365 | 70.091252% |
| B | 19069 | 368 | 1.929834% |
| C | 19067 | 12895 | 67.629937% |
| D | 19068 | 1589 | 8.333333% |

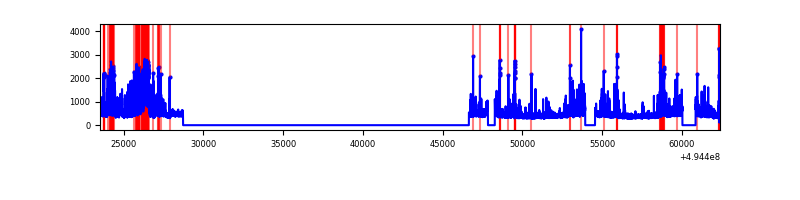

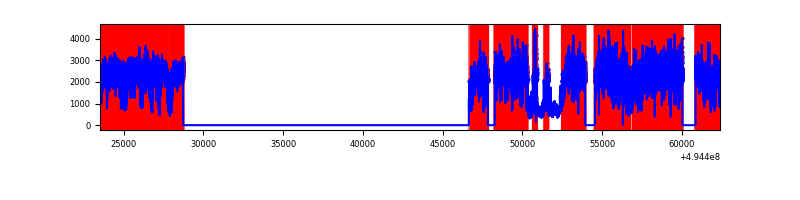

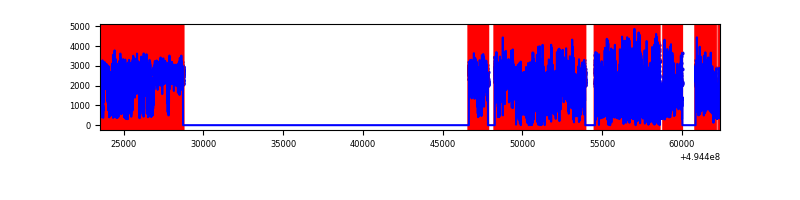

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

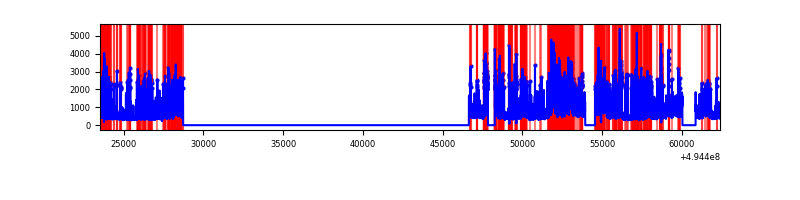

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38875 | 19072 | 13095 | 13095 | 33.68% | 68.66% |  |
| B | 38876 | 19073 | 284 | 284 | 0.73% | 1.49% |  |
| C | 38875 | 19067 | 9614 | 9614 | 24.73% | 50.42% |  |
| D | 38875 | 19072 | 1460 | 1460 | 3.76% | 7.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 27926348 | 91939.37 | 1225 | 1195 | 303.7 |
| A | 3 | 78 | 5865647 | 19307.83 | 1225 | 1195 | 303.7 |
| A | 15 | 174 | 616987 | 2027.4 | 1225 | 1195 | 303.7 |
| B | 10 | 254 | 1310911 | 3133.12 | 1964 | 1897 | 417.8 |
| B | 5 | 185 | 309373 | 735.94 | 1964 | 1897 | 417.8 |
| B | 7 | 0 | 284701 | 676.89 | 1964 | 1897 | 417.8 |
| C | 1 | 241 | 13628453 | 43823.09 | 1129 | 1120 | 311.0 |
| C | 15 | 219 | 7138524 | 22952.63 | 1129 | 1120 | 311.0 |
| C | 15 | 224 | 6472772 | 20811.69 | 1129 | 1120 | 311.0 |
| D | 8 | 176 | 2231188 | 4165.14 | 1875 | 1795 | 535.2 |
| D | 2 | 62 | 1276807 | 2382.09 | 1875 | 1795 | 535.2 |
| D | 3 | 224 | 1002167 | 1868.98 | 1875 | 1795 | 535.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

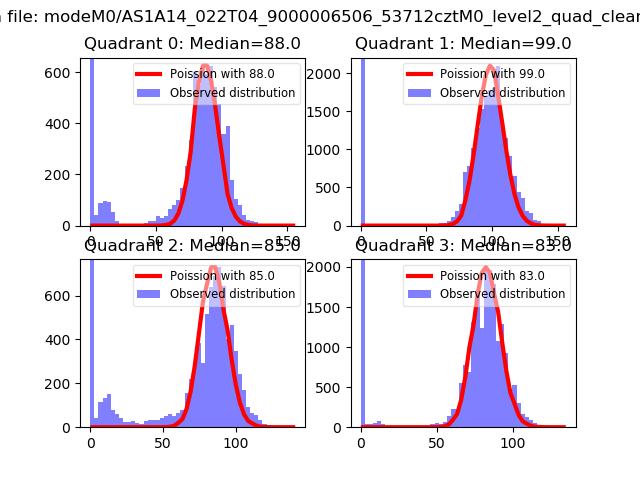

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

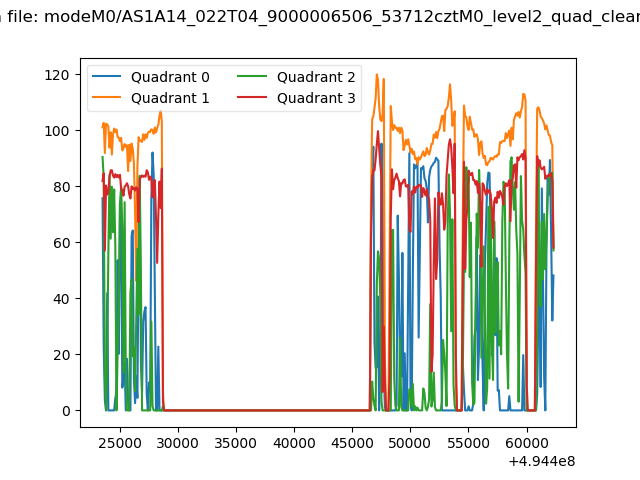

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

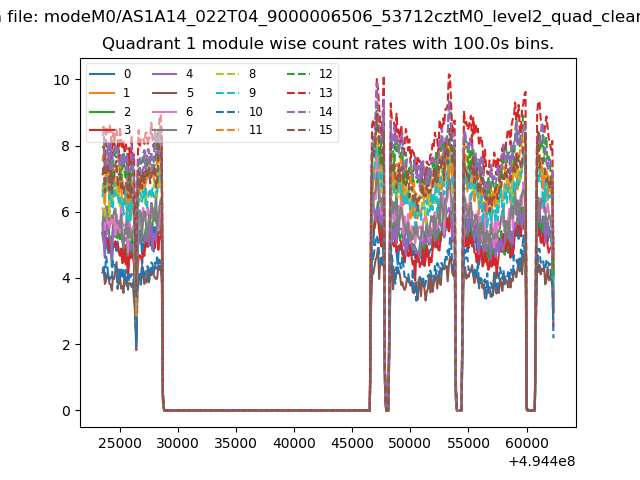

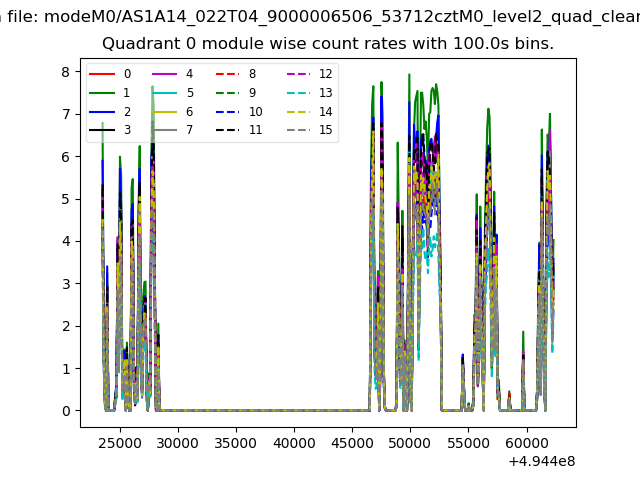

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

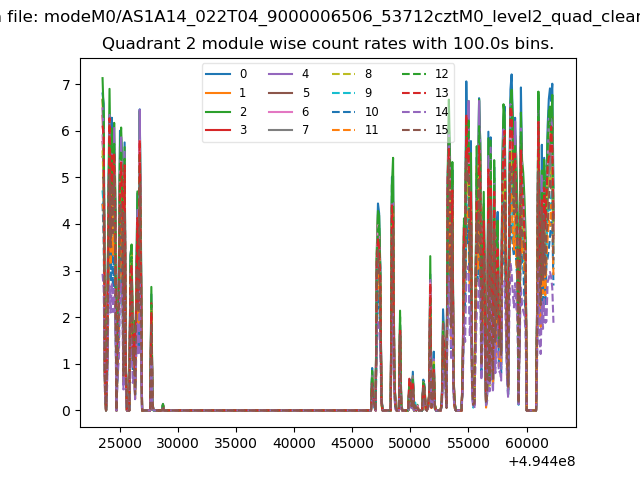

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

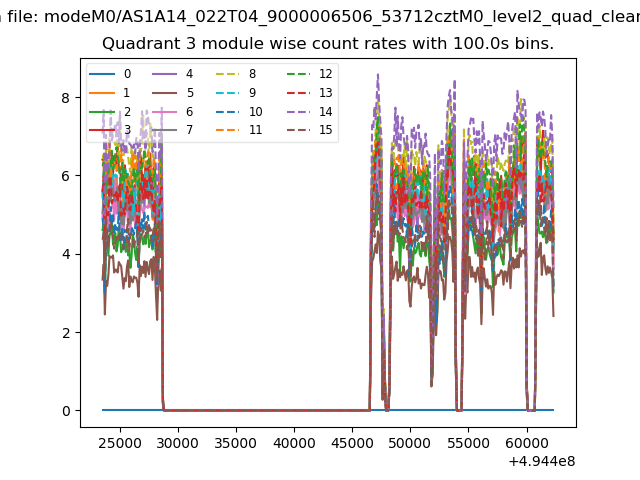

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

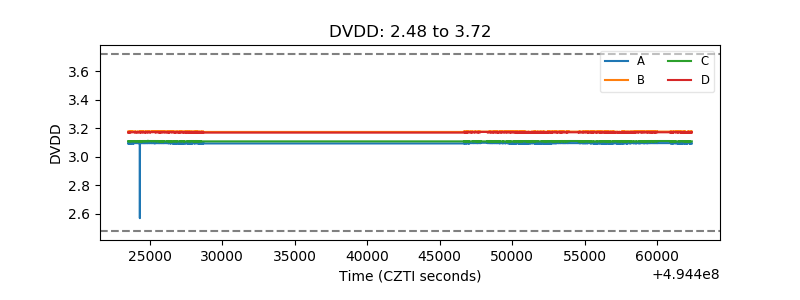

| D_VDD |  |

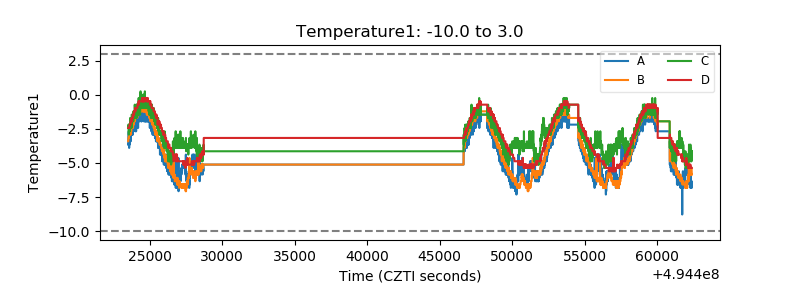

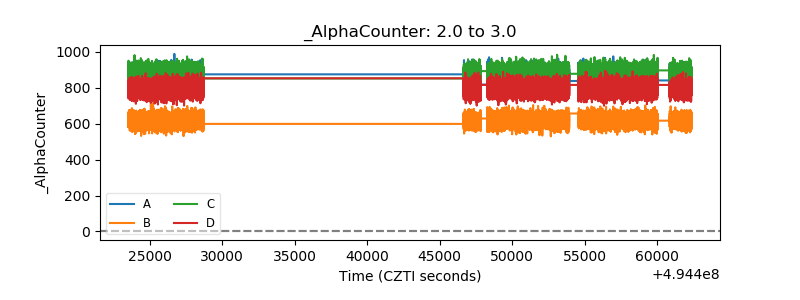

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

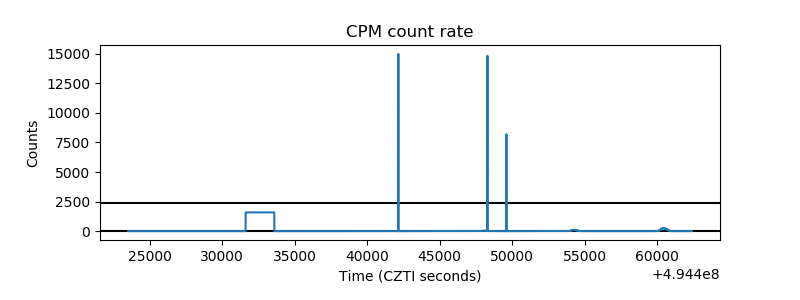

| _CPM_Rate |  |

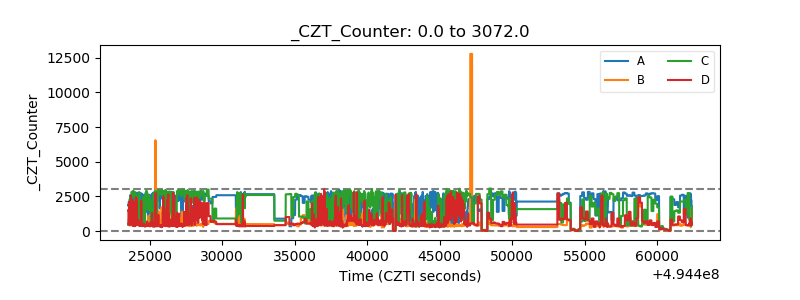

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

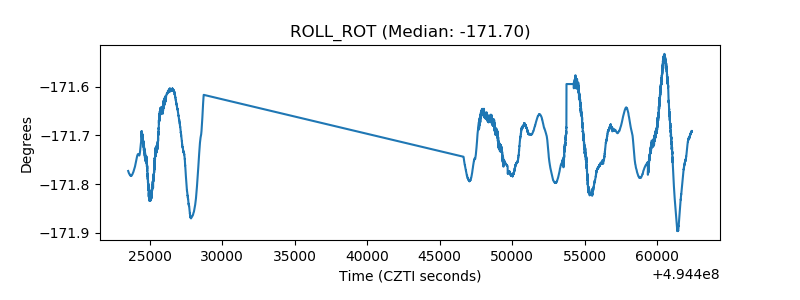

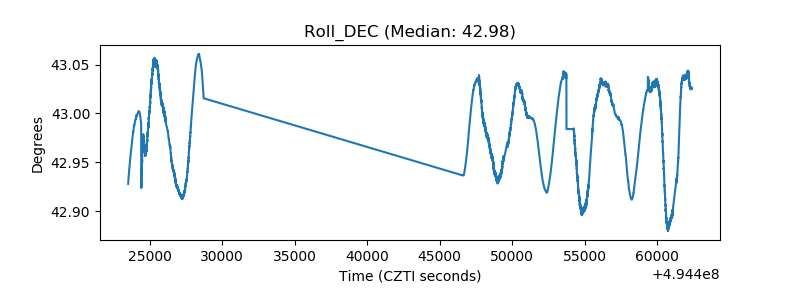

| _ROLL_ROT |  |
| _Roll_DEC |  |

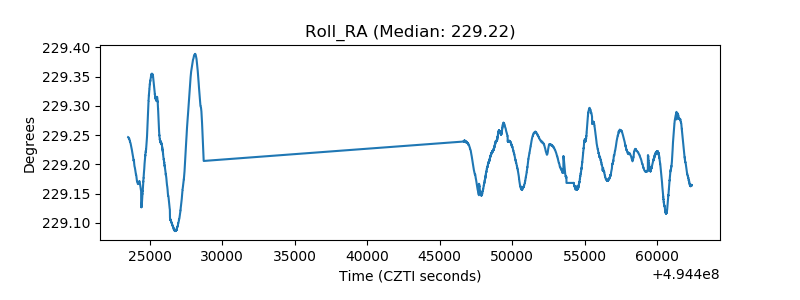

| _Roll_RA |  |

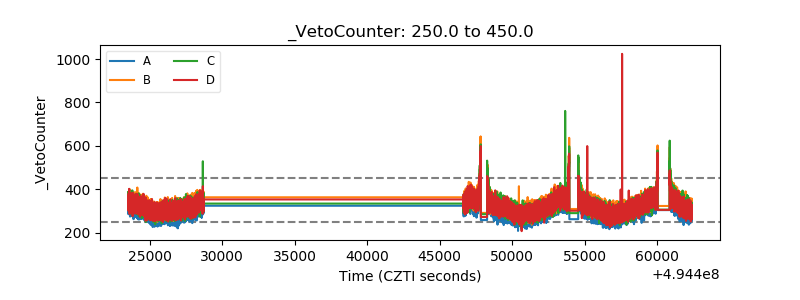

| Veto Counter |  |
