| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53750cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53750cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,132,793,280 | 75,165,120 |
| Size | 1.1 GB | 71.7 MB |
| Events in quadrant A | 17,952,645 | 55,838 |
| Events in quadrant B | 4,317,978 | 724,625 |
| Events in quadrant C | 12,654,034 | 386,875 |
| Events in quadrant D | 6,445,855 | 601,650 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58359 | 0 |
| B | 0 | 17775 | 0 |
| C | 0 | 42616 | 6 |
| D | 0 | 24178 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7279 | 6781 | 93.158401% |
| B | 7279 | 223 | 3.063608% |
| C | 7278 | 3315 | 45.548228% |
| D | 7278 | 371 | 5.097554% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7278 | 7278 | 6555 | 6555 | 90.07% | 90.07% |  |
| B | 7279 | 7279 | 76 | 76 | 1.04% | 1.04% |  |
| C | 7278 | 7278 | 3042 | 3042 | 41.80% | 41.80% |  |
| D | 7278 | 7278 | 414 | 414 | 5.69% | 5.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 15437731 | 182923.34 | 339 | 331 | 84.4 |
| A | 3 | 78 | 1049877 | 12436.45 | 339 | 331 | 84.4 |
| A | 5 | 241 | 27305 | 319.62 | 339 | 331 | 84.4 |
| B | 4 | 81 | 450148 | 2685.49 | 776 | 749 | 167.3 |
| B | 7 | 0 | 186264 | 1108.59 | 776 | 749 | 167.3 |
| B | 5 | 250 | 107064 | 635.31 | 776 | 749 | 167.3 |
| C | 15 | 224 | 3911055 | 23916.92 | 592 | 586 | 163.5 |
| C | 13 | 3 | 2588808 | 15829.89 | 592 | 586 | 163.5 |
| C | 1 | 241 | 2421946 | 14809.34 | 592 | 586 | 163.5 |
| D | 2 | 172 | 2138069 | 10013.94 | 758 | 726 | 213.4 |
| D | 13 | 153 | 320584 | 1498.61 | 758 | 726 | 213.4 |
| D | 7 | 70 | 318338 | 1488.09 | 758 | 726 | 213.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

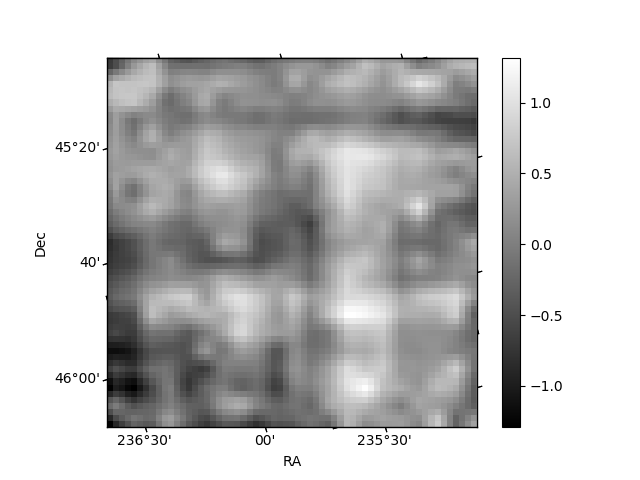

| Quadrant A |  |
 |

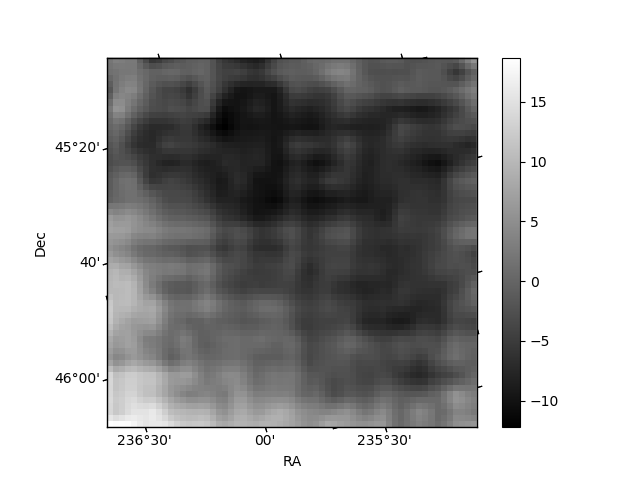

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

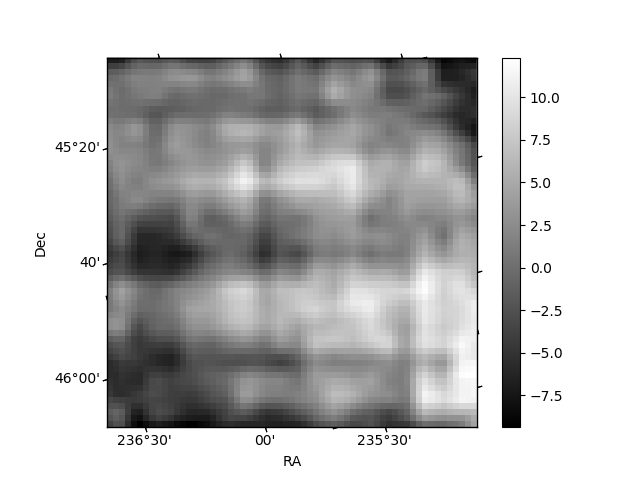

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

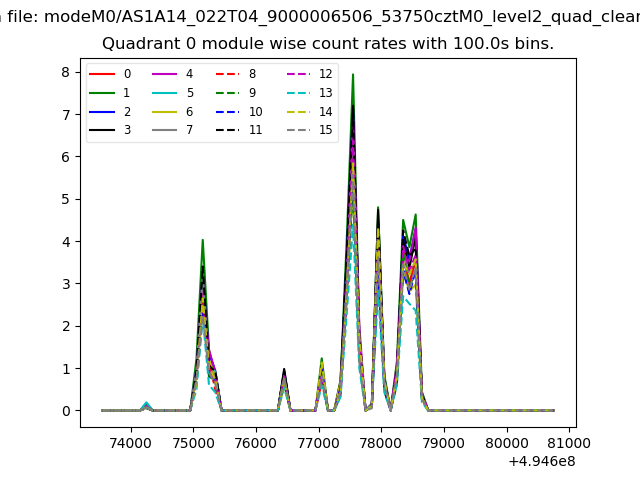

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

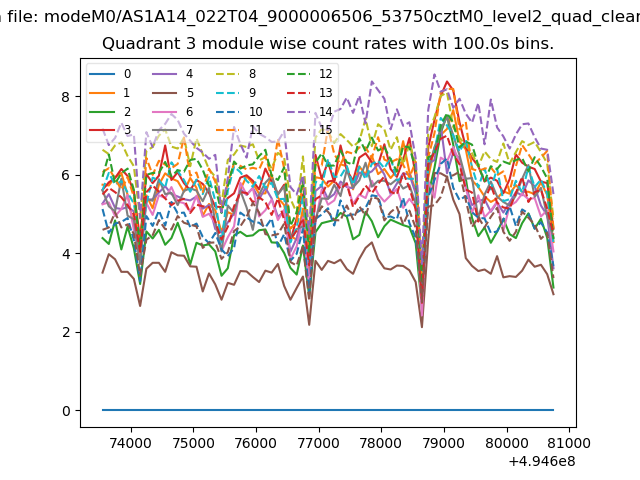

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

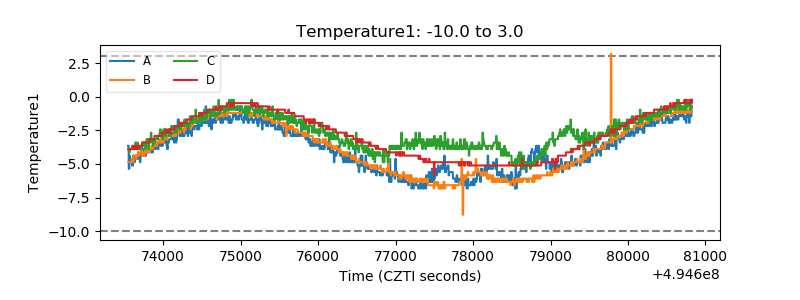

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

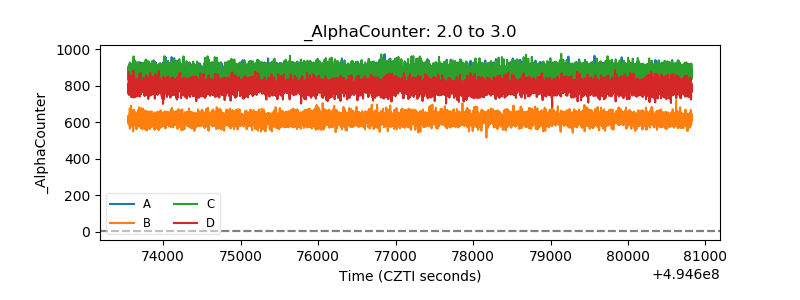

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

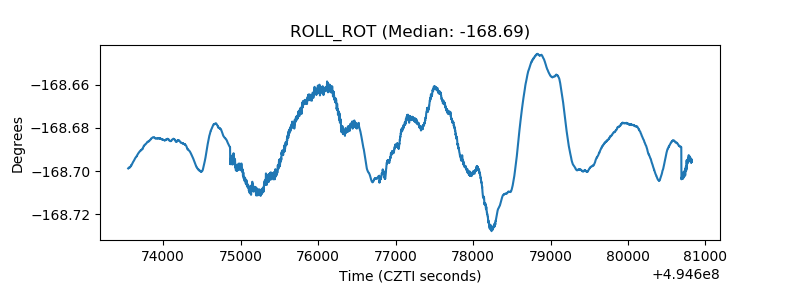

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
