| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53758cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53758cztM0_level2_quad_clean.evt |
| Size (bytes) | 826,876,800 | 82,857,600 |
| Size | 788.6 MB | 79.0 MB |
| Events in quadrant A | 14,500,236 | 213,385 |
| Events in quadrant B | 3,830,733 | 679,036 |
| Events in quadrant C | 6,089,484 | 567,746 |
| Events in quadrant D | 5,659,036 | 572,668 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47760 | 7 |
| B | 0 | 16369 | 2 |
| C | 0 | 22835 | 2 |
| D | 0 | 21606 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6829 | 4690 | 68.677698% |
| B | 6829 | 177 | 2.591888% |
| C | 6829 | 704 | 10.308976% |
| D | 6829 | 340 | 4.978767% |

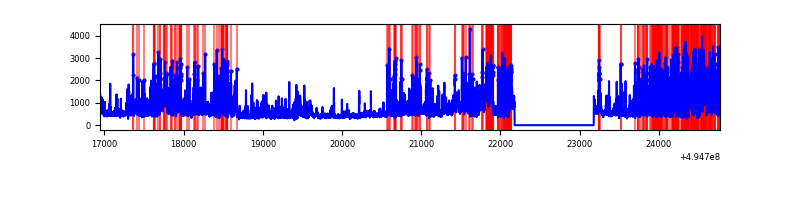

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7828 | 6828 | 4624 | 4624 | 59.07% | 67.72% |  |
| B | 7829 | 6830 | 88 | 88 | 1.12% | 1.29% |  |
| C | 7829 | 6830 | 650 | 650 | 8.30% | 9.52% |  |
| D | 7829 | 6830 | 379 | 379 | 4.84% | 5.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 12110177 | 96562.71 | 502 | 491 | 125.4 |
| A | 8 | 245 | 122543 | 973.24 | 502 | 491 | 125.4 |
| A | 3 | 78 | 113299 | 899.53 | 502 | 491 | 125.4 |
| B | 4 | 81 | 738116 | 4849.23 | 708 | 683 | 152.1 |
| B | 6 | 255 | 58016 | 377.01 | 708 | 683 | 152.1 |
| B | 5 | 185 | 50441 | 327.2 | 708 | 683 | 152.1 |
| C | 15 | 224 | 2137949 | 11438.03 | 672 | 665 | 186.9 |
| C | 1 | 241 | 774565 | 4141.66 | 672 | 665 | 186.9 |
| C | 14 | 254 | 93742 | 498.12 | 672 | 665 | 186.9 |
| D | 2 | 172 | 1607293 | 8231.2 | 687 | 659 | 195.2 |
| D | 10 | 172 | 764734 | 3914.55 | 687 | 659 | 195.2 |
| D | 7 | 70 | 152844 | 779.68 | 687 | 659 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

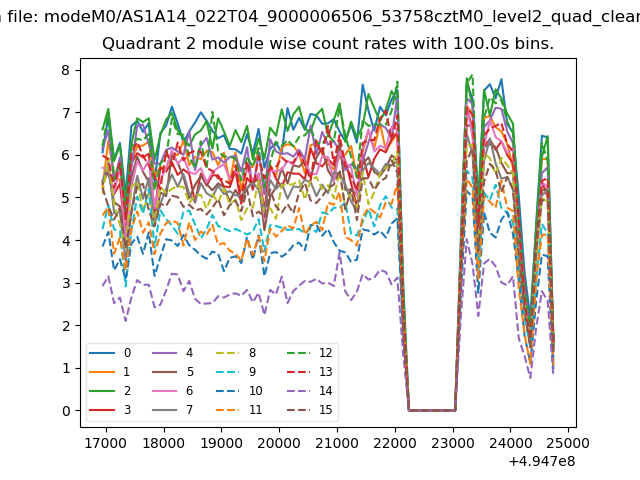

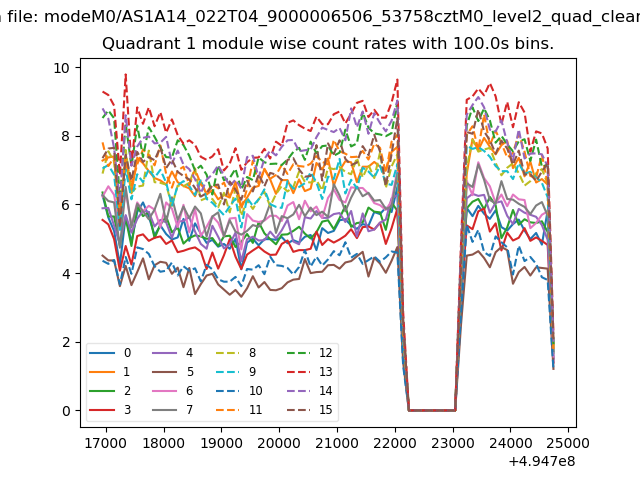

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

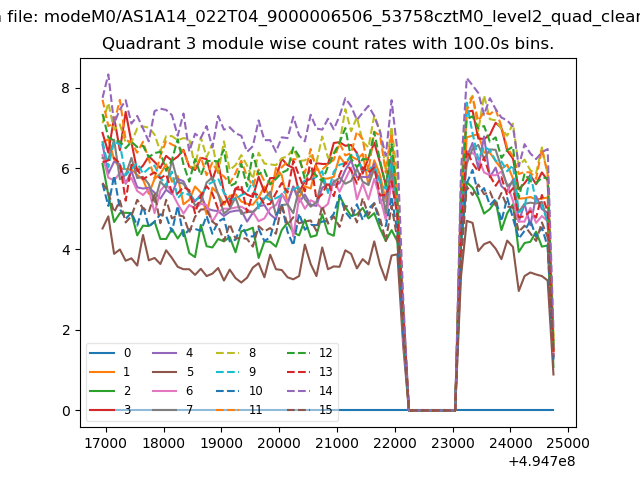

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

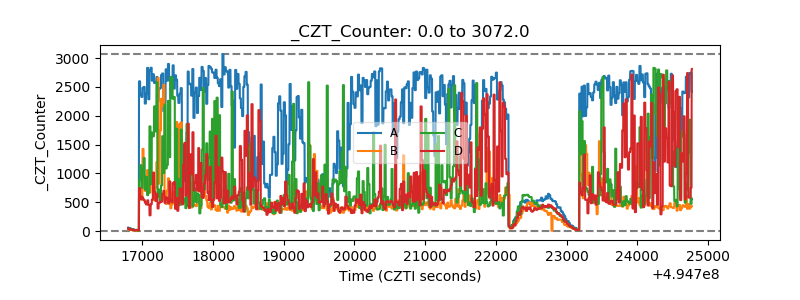

| CZT Counter |  |

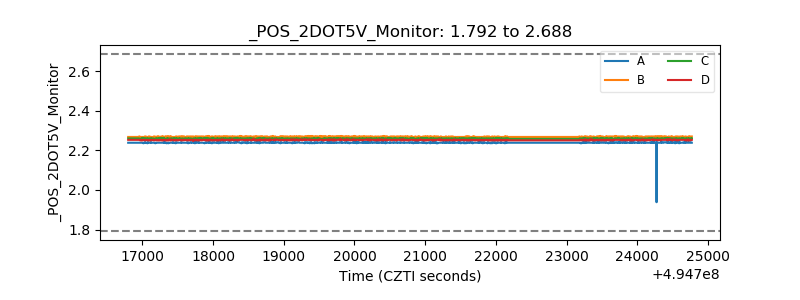

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

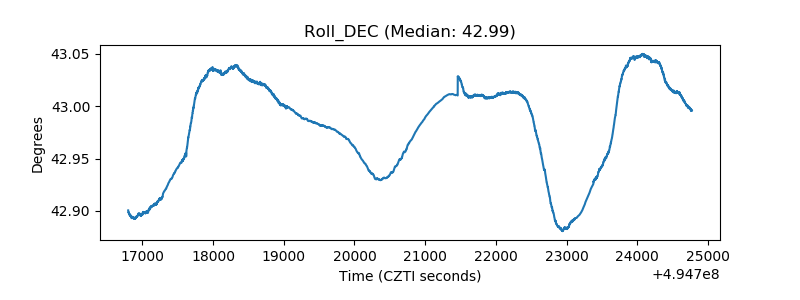

| _Roll_DEC |  |
