| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53764cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53764cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,027,108,800 | 68,509,440 |
| Size | 979.5 MB | 65.3 MB |
| Events in quadrant A | 17,098,282 | 40,788 |
| Events in quadrant B | 3,375,768 | 665,648 |
| Events in quadrant C | 11,436,494 | 349,148 |
| Events in quadrant D | 5,584,581 | 545,349 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55518 | 1 |
| B | 0 | 15052 | 1 |
| C | 0 | 38627 | 4 |
| D | 0 | 21303 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6788 | 6445 | 94.946965% |
| B | 6789 | 293 | 4.315805% |
| C | 6788 | 3211 | 47.304066% |
| D | 6789 | 583 | 8.587421% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7013 | 6788 | 6183 | 6183 | 88.16% | 91.09% |  |
| B | 7014 | 6789 | 46 | 46 | 0.66% | 0.68% |  |
| C | 7014 | 6789 | 3005 | 3005 | 42.84% | 44.26% |  |
| D | 7014 | 6790 | 415 | 415 | 5.92% | 6.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 15629390 | 193971.75 | 320 | 311 | 80.6 |
| A | 0 | 8 | 95759 | 1184.6 | 320 | 311 | 80.6 |
| A | 5 | 241 | 23163 | 283.62 | 320 | 311 | 80.6 |
| B | 4 | 81 | 134772 | 861.01 | 724 | 696 | 155.7 |
| B | 5 | 185 | 117888 | 752.58 | 724 | 696 | 155.7 |
| B | 0 | 213 | 68460 | 435.16 | 724 | 696 | 155.7 |
| C | 1 | 241 | 6868300 | 46355.32 | 536 | 529 | 148.2 |
| C | 15 | 224 | 2021204 | 13638.93 | 536 | 529 | 148.2 |
| C | 13 | 3 | 108067 | 725.85 | 536 | 529 | 148.2 |
| D | 2 | 172 | 762692 | 3859.98 | 703 | 673 | 197.4 |
| D | 1 | 241 | 603147 | 3051.81 | 703 | 673 | 197.4 |
| D | 8 | 176 | 458757 | 2320.41 | 703 | 673 | 197.4 |

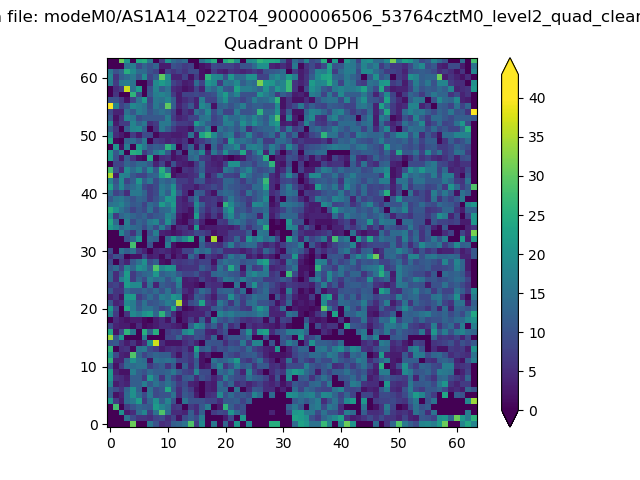

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

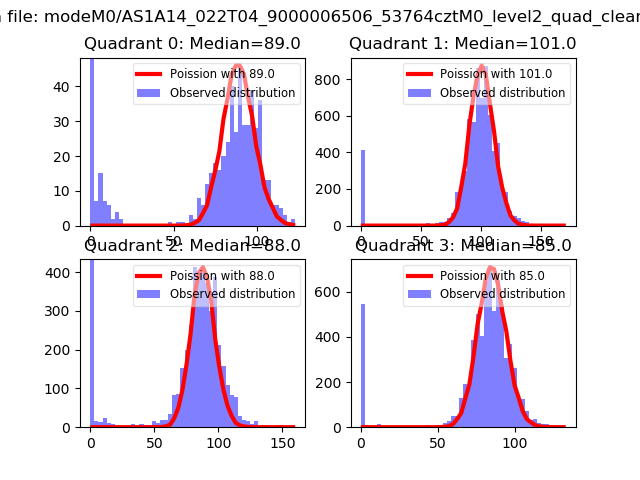

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

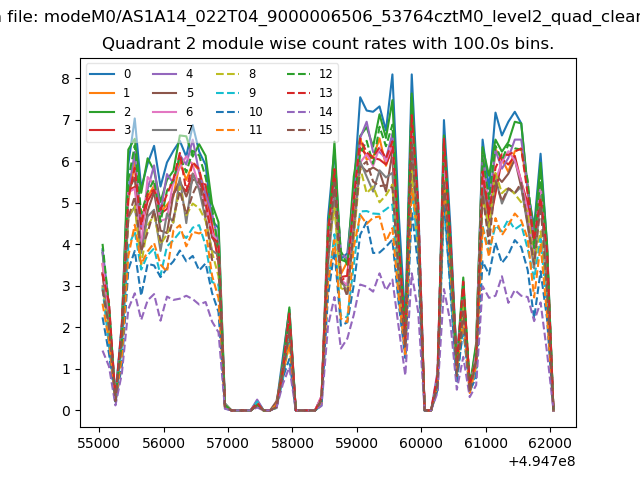

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

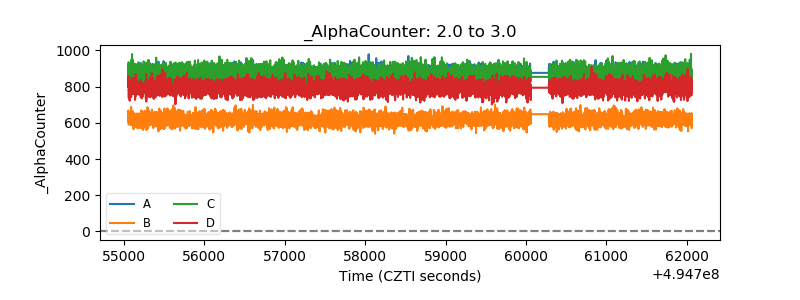

| Alpha Counter |  |
| _CPM_Rate |  |

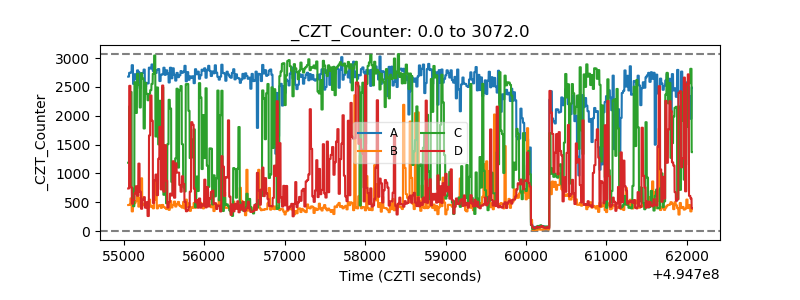

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

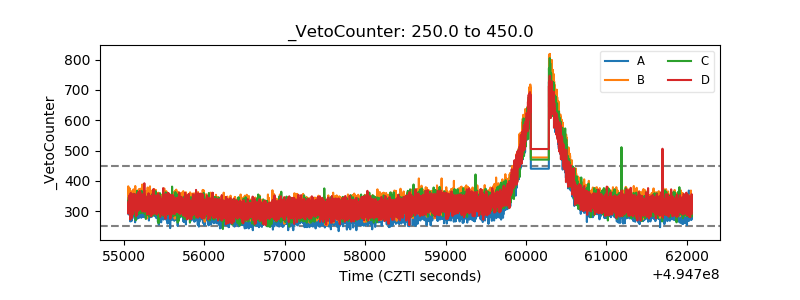

| Veto Counter |  |
