| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53776cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53776cztM0_level2_quad_clean.evt |
| Size (bytes) | 745,721,280 | 72,063,360 |
| Size | 711.2 MB | 68.7 MB |
| Events in quadrant A | 15,094,140 | 64,467 |
| Events in quadrant B | 4,059,871 | 604,095 |
| Events in quadrant C | 4,668,570 | 553,258 |
| Events in quadrant D | 3,307,941 | 534,518 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49064 | 1 |
| B | 0 | 16329 | 1 |
| C | 0 | 18053 | 1 |
| D | 0 | 14276 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6095 | 5568 | 91.353568% |
| B | 6095 | 516 | 8.465956% |
| C | 6096 | 336 | 5.511811% |
| D | 6096 | 150 | 2.460630% |

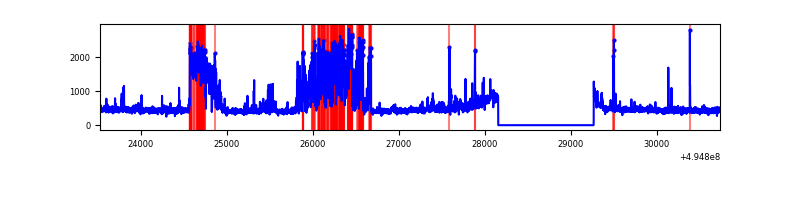

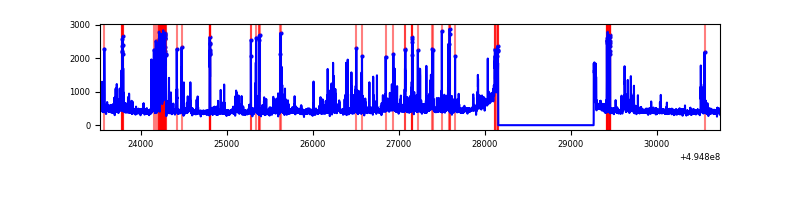

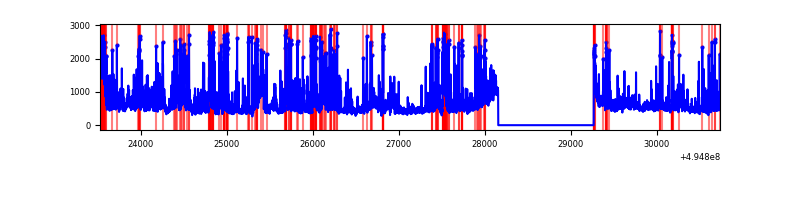

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7204 | 6094 | 5540 | 5540 | 76.90% | 90.91% |  |
| B | 7205 | 6095 | 221 | 221 | 3.07% | 3.63% |  |
| C | 7206 | 6096 | 270 | 270 | 3.75% | 4.43% |  |
| D | 7206 | 6096 | 104 | 104 | 1.44% | 1.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 13593387 | 163931.09 | 334 | 325 | 82.9 |
| A | 4 | 249 | 79473 | 954.52 | 334 | 325 | 82.9 |
| A | 5 | 241 | 32685 | 390.26 | 334 | 325 | 82.9 |
| B | 8 | 234 | 737176 | 5284.63 | 646 | 623 | 139.4 |
| B | 6 | 255 | 498355 | 3571.13 | 646 | 623 | 139.4 |
| B | 4 | 81 | 84537 | 602.07 | 646 | 623 | 139.4 |
| C | 15 | 224 | 1389783 | 7971.25 | 636 | 632 | 174.3 |
| C | 7 | 64 | 222734 | 1274.47 | 636 | 632 | 174.3 |
| C | 3 | 242 | 162526 | 928.98 | 636 | 632 | 174.3 |
| D | 2 | 120 | 200457 | 1111.34 | 640 | 611 | 179.8 |
| D | 3 | 224 | 152242 | 843.22 | 640 | 611 | 179.8 |
| D | 13 | 153 | 57526 | 316.5 | 640 | 611 | 179.8 |

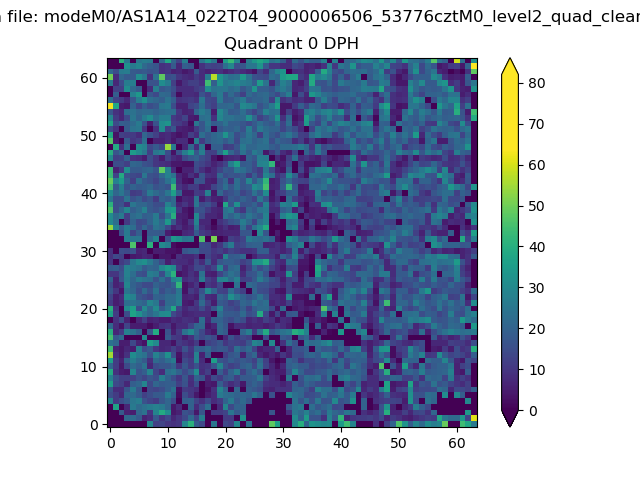

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

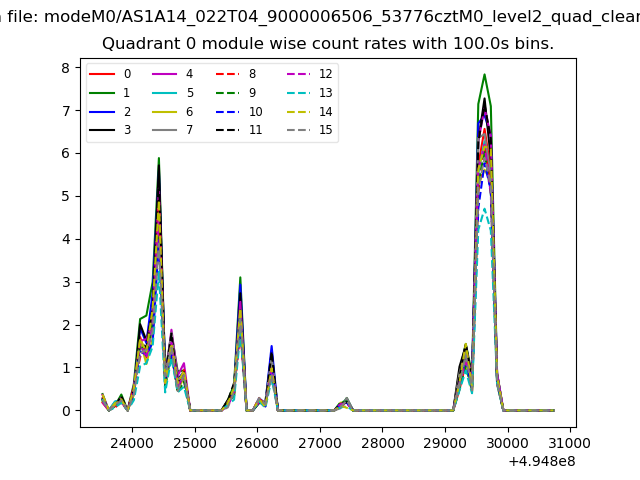

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

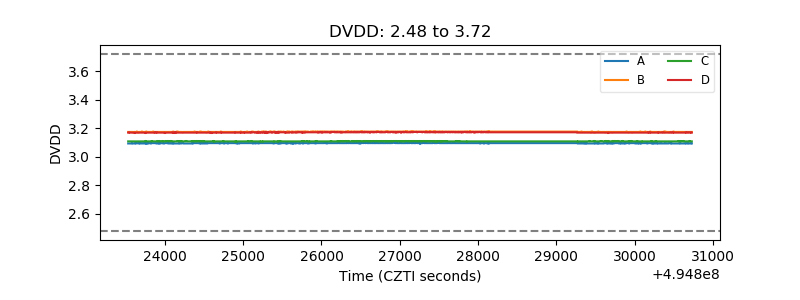

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

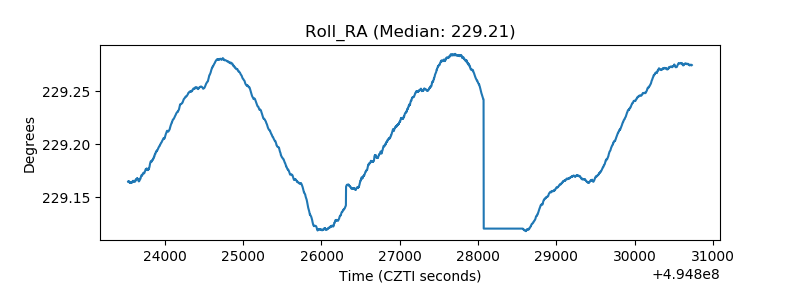

| _Roll_RA |  |
| Veto Counter |  |
