| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53777cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53777cztM0_level2_quad_clean.evt |
| Size (bytes) | 796,809,600 | 79,597,440 |
| Size | 759.9 MB | 75.9 MB |
| Events in quadrant A | 16,570,474 | 69,857 |
| Events in quadrant B | 3,829,629 | 690,661 |
| Events in quadrant C | 4,975,553 | 596,129 |
| Events in quadrant D | 3,593,368 | 581,365 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53903 | 6 |
| B | 0 | 16242 | 2 |
| C | 0 | 19510 | 2 |
| D | 0 | 15592 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6772 | 6210 | 91.701122% |
| B | 6772 | 260 | 3.839338% |
| C | 6772 | 509 | 7.516243% |
| D | 6772 | 190 | 2.805670% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

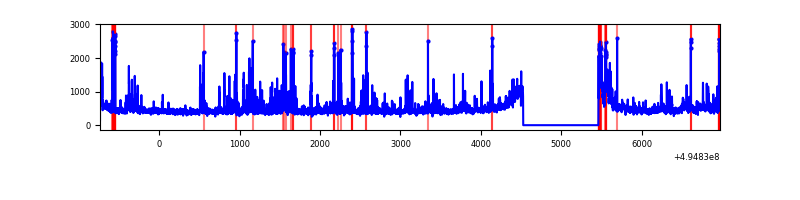

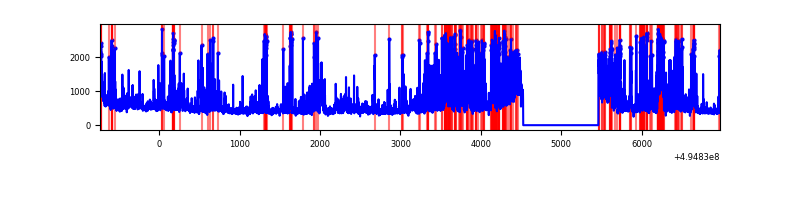

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7706 | 6771 | 6069 | 6069 | 78.76% | 89.63% |  |
| B | 7706 | 6771 | 87 | 87 | 1.13% | 1.28% |  |
| C | 7706 | 6771 | 344 | 344 | 4.46% | 5.08% |  |
| D | 7706 | 6771 | 80 | 80 | 1.04% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 14967456 | 164739.29 | 368 | 358 | 90.9 |
| A | 4 | 249 | 57690 | 631.04 | 368 | 358 | 90.9 |
| A | 0 | 8 | 40971 | 447.02 | 368 | 358 | 90.9 |
| B | 8 | 234 | 527634 | 3332.86 | 735 | 708 | 158.1 |
| B | 5 | 185 | 107411 | 674.91 | 735 | 708 | 158.1 |
| B | 5 | 250 | 75399 | 472.43 | 735 | 708 | 158.1 |
| C | 15 | 224 | 1634110 | 8380.81 | 701 | 695 | 194.9 |
| C | 3 | 242 | 172626 | 882.15 | 701 | 695 | 194.9 |
| C | 7 | 64 | 91626 | 466.55 | 701 | 695 | 194.9 |
| D | 6 | 127 | 170068 | 847.68 | 714 | 683 | 199.8 |
| D | 3 | 224 | 104906 | 521.58 | 714 | 683 | 199.8 |
| D | 10 | 172 | 79052 | 392.19 | 714 | 683 | 199.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

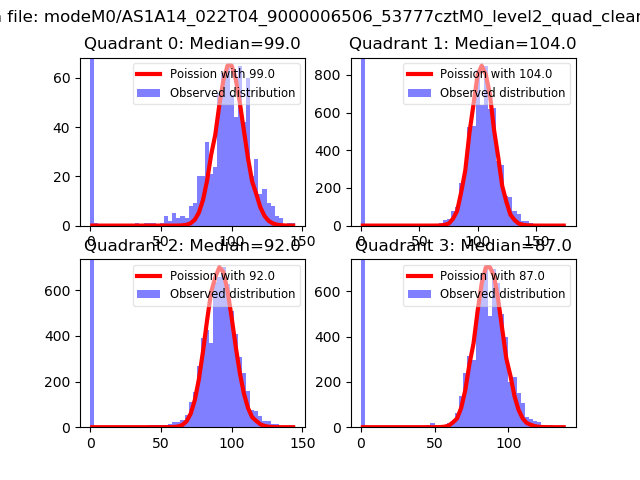

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

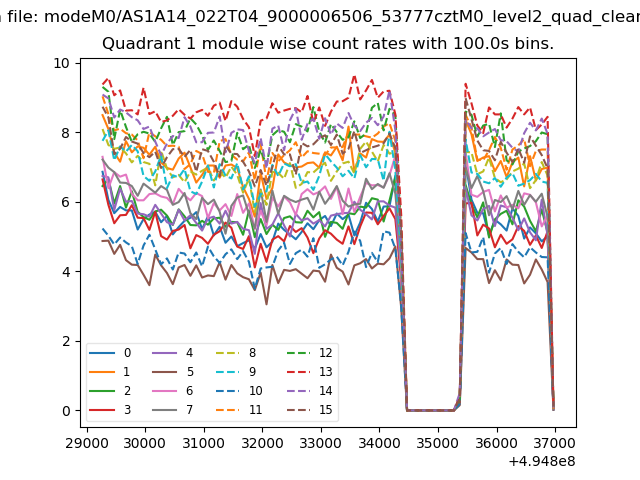

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

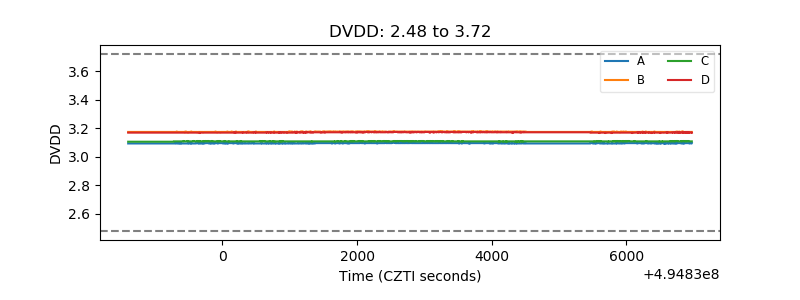

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

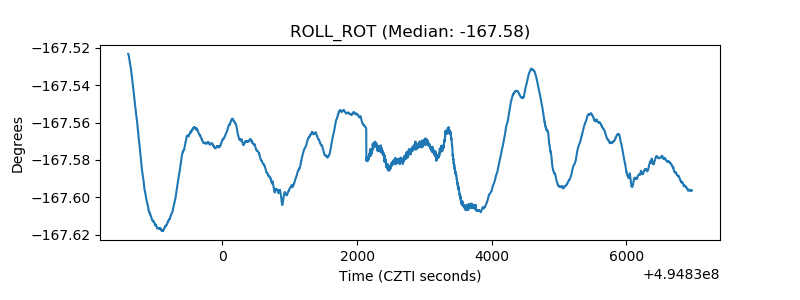

| _ROLL_ROT |  |

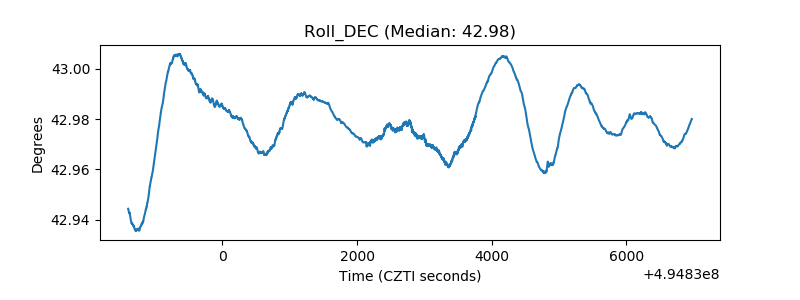

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
