| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53785cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53785cztM0_level2_quad_clean.evt |
| Size (bytes) | 963,230,400 | 76,299,840 |
| Size | 918.6 MB | 72.8 MB |
| Events in quadrant A | 17,563,596 | 18,124 |
| Events in quadrant B | 3,855,353 | 695,402 |
| Events in quadrant C | 6,688,753 | 569,590 |
| Events in quadrant D | 7,012,750 | 545,154 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56984 | 5 |
| B | 0 | 16391 | 2 |
| C | 0 | 24674 | 2 |
| D | 0 | 25682 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6915 | 6764 | 97.816341% |
| B | 6915 | 141 | 2.039046% |
| C | 6915 | 844 | 12.205351% |
| D | 6915 | 829 | 11.988431% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7780 | 6916 | 6531 | 6531 | 83.95% | 94.43% |  |
| B | 7780 | 6916 | 88 | 88 | 1.13% | 1.27% |  |
| C | 7780 | 6916 | 728 | 728 | 9.36% | 10.53% |  |
| D | 7780 | 6916 | 846 | 846 | 10.87% | 12.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 15768151 | 233229.48 | 266 | 259 | 67.6 |
| A | 3 | 78 | 437026 | 6460.4 | 266 | 259 | 67.6 |
| A | 8 | 6 | 137904 | 2035.96 | 266 | 259 | 67.6 |
| B | 5 | 185 | 470270 | 3056.9 | 717 | 692 | 153.6 |
| B | 8 | 234 | 120711 | 781.31 | 717 | 692 | 153.6 |
| B | 4 | 171 | 87461 | 564.86 | 717 | 692 | 153.6 |
| C | 15 | 224 | 3244860 | 17386.71 | 675 | 668 | 186.6 |
| C | 1 | 241 | 249430 | 1333.2 | 675 | 668 | 186.6 |
| C | 4 | 5 | 153617 | 819.7 | 675 | 668 | 186.6 |
| D | 1 | 241 | 3196458 | 16240.33 | 681 | 649 | 196.8 |
| D | 10 | 172 | 201108 | 1018.68 | 681 | 649 | 196.8 |
| D | 13 | 153 | 136396 | 689.83 | 681 | 649 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

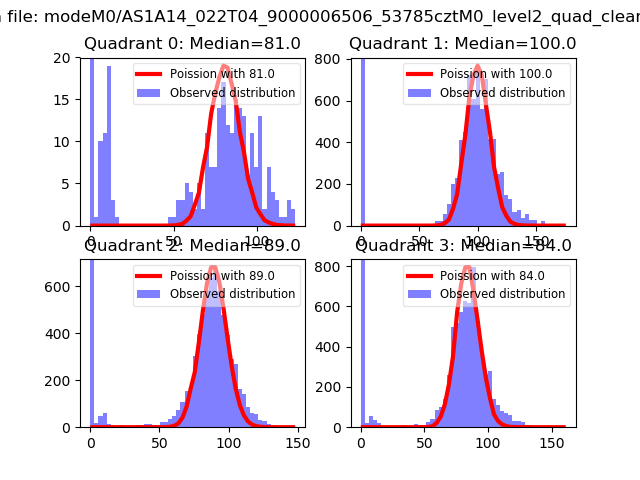

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

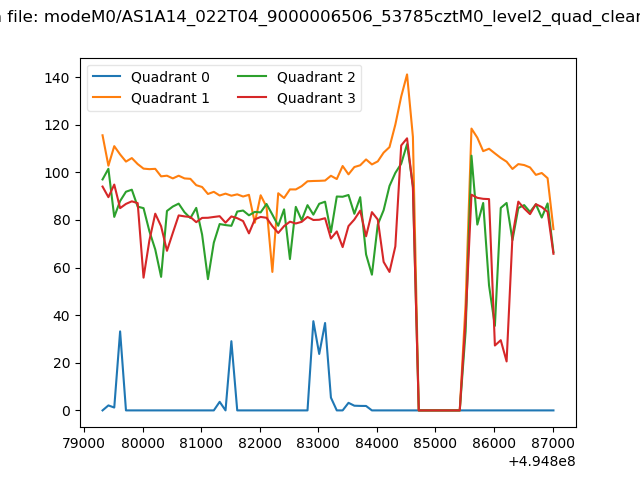

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

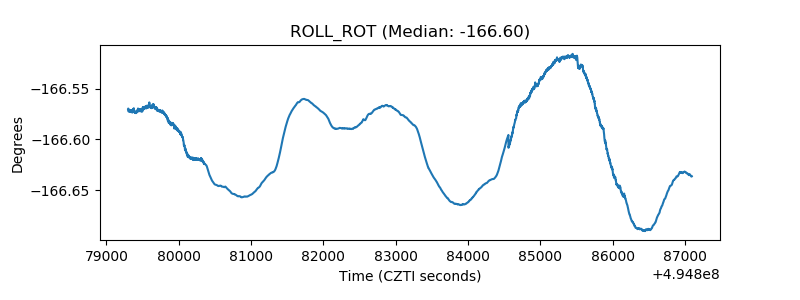

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

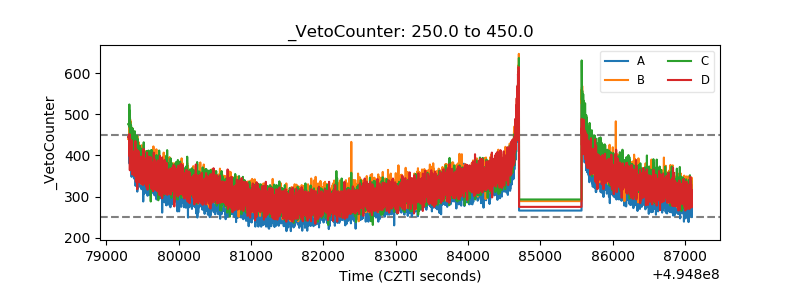

| Veto Counter |  |
