| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T04_9000006506_53805cztM0_level2.fits | modeM0/AS1A14_022T04_9000006506_53805cztM0_level2_quad_clean.evt |
| Size (bytes) | 854,881,920 | 63,676,800 |
| Size | 815.3 MB | 60.7 MB |
| Events in quadrant A | 13,316,612 | 132,983 |
| Events in quadrant B | 3,907,185 | 579,547 |
| Events in quadrant C | 6,012,186 | 475,646 |
| Events in quadrant D | 7,962,427 | 336,063 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43564 | 1 |
| B | 0 | 15636 | 1 |
| C | 0 | 21880 | 1 |
| D | 0 | 27585 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5771 | 4656 | 80.679258% |
| B | 5772 | 376 | 6.514207% |
| C | 5772 | 900 | 15.592516% |
| D | 5772 | 2148 | 37.214137% |

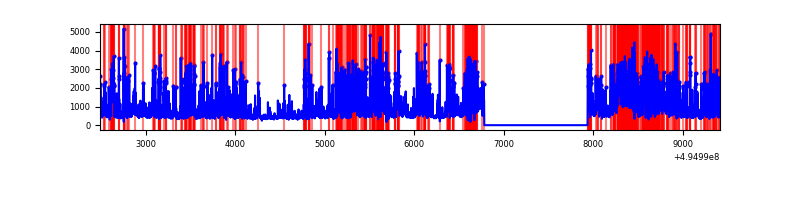

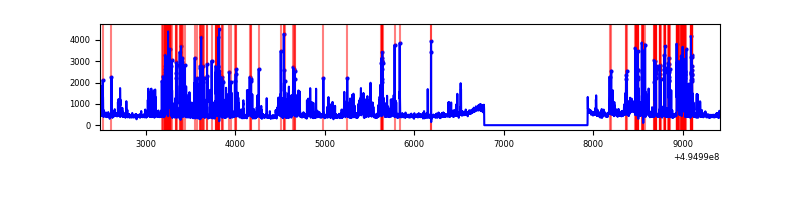

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6926 | 5772 | 4480 | 4480 | 64.68% | 77.62% |  |
| B | 6927 | 5773 | 227 | 227 | 3.28% | 3.93% |  |
| C | 6927 | 5773 | 657 | 657 | 9.48% | 11.38% |  |
| D | 6927 | 5773 | 1776 | 1776 | 25.64% | 30.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 63 | 11474140 | 112064.3 | 413 | 403 | 102.4 |
| A | 8 | 249 | 92933 | 903.74 | 413 | 403 | 102.4 |
| A | 3 | 78 | 65332 | 634.16 | 413 | 403 | 102.4 |
| B | 5 | 185 | 1056488 | 7983.06 | 608 | 586 | 132.3 |
| B | 5 | 172 | 354250 | 2673.85 | 608 | 586 | 132.3 |
| B | 7 | 129 | 29949 | 222.0 | 608 | 586 | 132.3 |
| C | 15 | 224 | 3136521 | 20001.18 | 567 | 561 | 156.8 |
| C | 12 | 2 | 206685 | 1314.66 | 567 | 561 | 156.8 |
| C | 7 | 64 | 181891 | 1156.52 | 567 | 561 | 156.8 |
| D | 8 | 176 | 5043693 | 38840.99 | 452 | 431 | 129.8 |
| D | 1 | 241 | 343199 | 2639.85 | 452 | 431 | 129.8 |
| D | 7 | 70 | 223179 | 1715.51 | 452 | 431 | 129.8 |

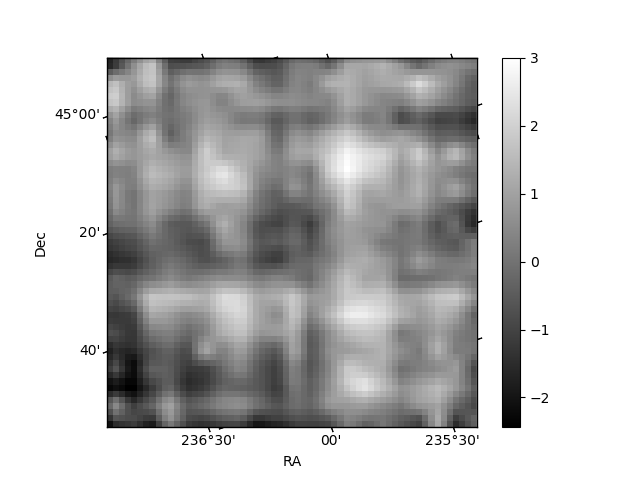

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

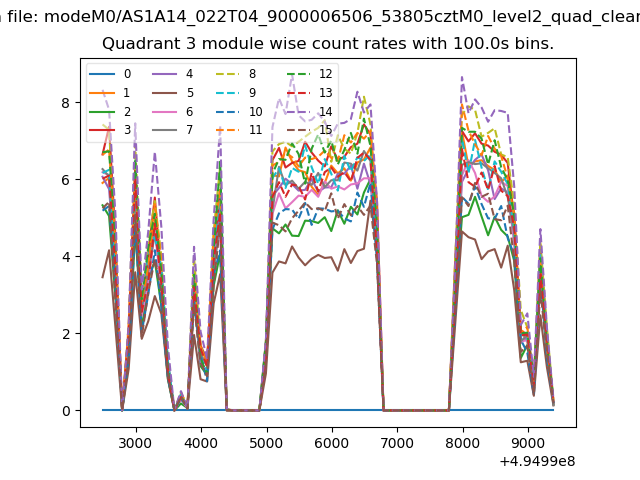

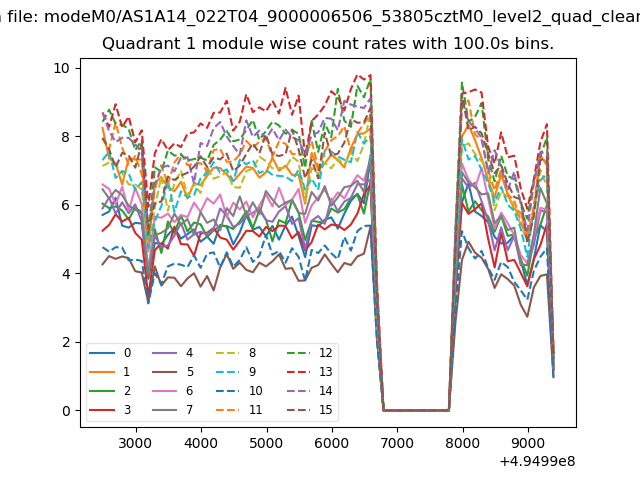

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

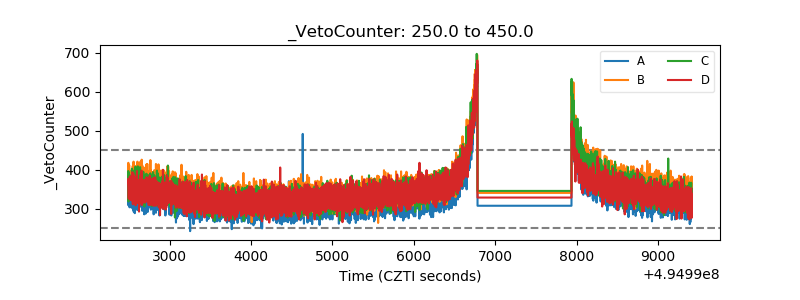

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

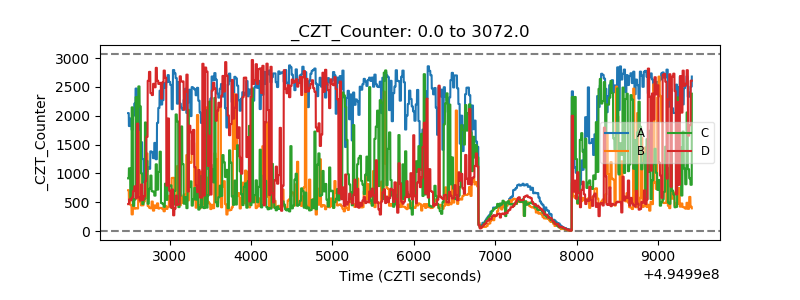

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

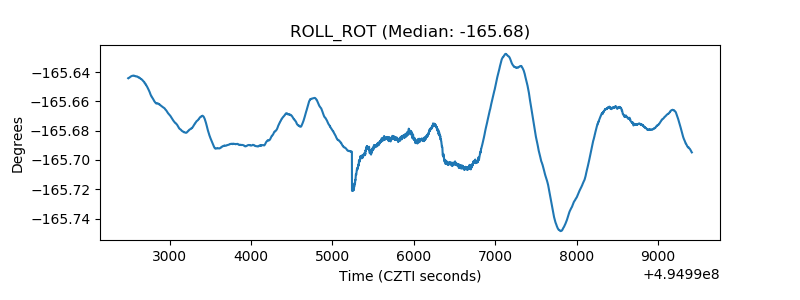

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
