| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_057T04_9000006508_53845cztM0_level2.fits | modeM0/AS1A14_057T04_9000006508_53845cztM0_level2_quad_clean.evt |
| Size (bytes) | 190,275,840 | 21,879,360 |
| Size | 181.5 MB | 20.9 MB |
| Events in quadrant A | 1,560,126 | 183,755 |
| Events in quadrant B | 1,556,471 | 191,576 |
| Events in quadrant C | 1,802,404 | 99,429 |
| Events in quadrant D | 1,966,169 | 37,822 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18115 | 11872 |
| B | 0 | 16985 | 10566 |
| C | 0 | 28752 | 22195 |
| D | 0 | 42617 | 36012 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 127 | 54 |
| B | 0 | 123 | 60 |
| C | 0 | 125 | 59 |
| D | 0 | 125 | 73 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 3 |
| B | 0 | 12 | 5 |
| C | 0 | 11 | 4 |
| D | 0 | 11 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2497 | 63 | 2.523028% |
| B | 2526 | 58 | 2.296120% |
| C | 1783 | 231 | 12.955693% |
| D | 1147 | 483 | 42.109852% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

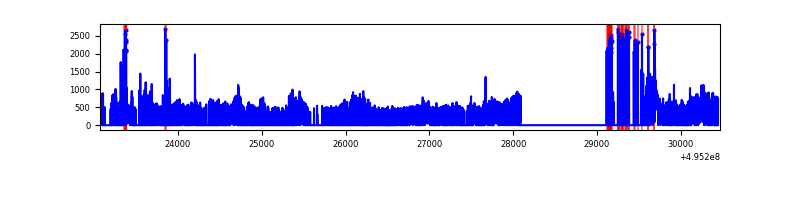

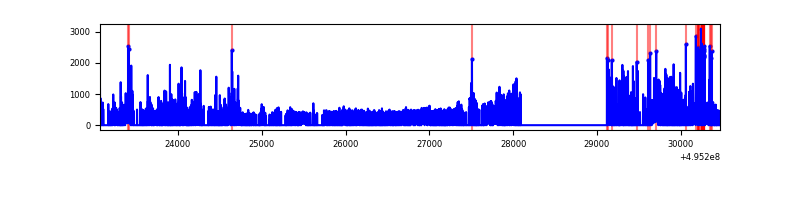

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7354 | 3549 | 59 | 59 | 0.80% | 1.66% |  |
| B | 7399 | 3661 | 39 | 39 | 0.53% | 1.07% |  |
| C | 7371 | 2609 | 220 | 220 | 2.98% | 8.43% |  |
| D | 7351 | 1552 | 467 | 467 | 6.35% | 30.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 245214 | 3672.71 | 264 | 257 | 66.7 |
| A | 12 | 115 | 139482 | 2087.44 | 264 | 257 | 66.7 |
| A | 8 | 245 | 68892 | 1029.06 | 264 | 257 | 66.7 |
| B | 5 | 172 | 225073 | 3899.93 | 264 | 254 | 57.6 |
| B | 0 | 171 | 93206 | 1612.44 | 264 | 254 | 57.6 |
| B | 5 | 185 | 53790 | 928.69 | 264 | 254 | 57.6 |
| C | 1 | 241 | 453381 | 9037.22 | 175 | 174 | 50.1 |
| C | 15 | 224 | 451382 | 8997.36 | 175 | 174 | 50.1 |
| C | 13 | 3 | 75488 | 1501.81 | 175 | 174 | 50.1 |
| D | 15 | 93 | 1306584 | 45671.26 | 93 | 89 | 28.6 |
| D | 13 | 153 | 103087 | 3600.51 | 93 | 89 | 28.6 |
| D | 2 | 172 | 70055 | 2445.81 | 93 | 89 | 28.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

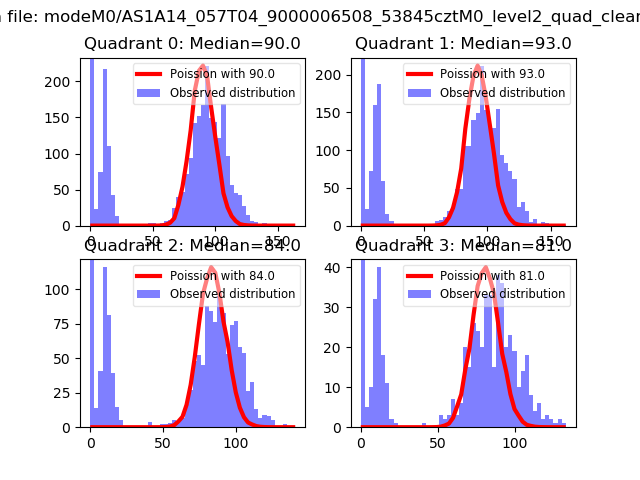

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

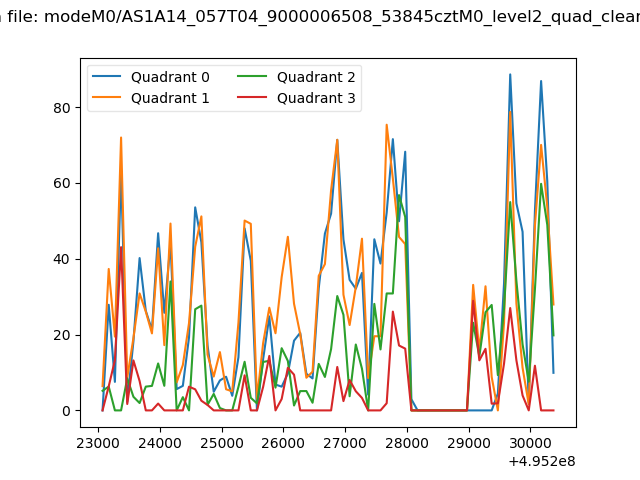

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

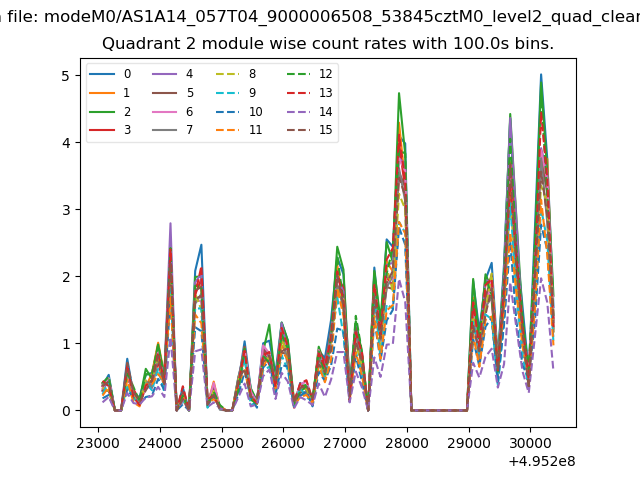

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

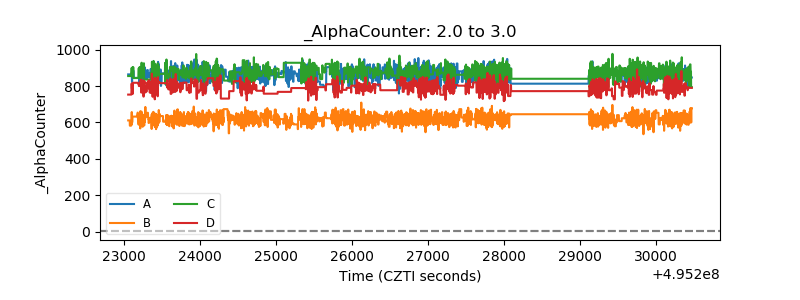

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

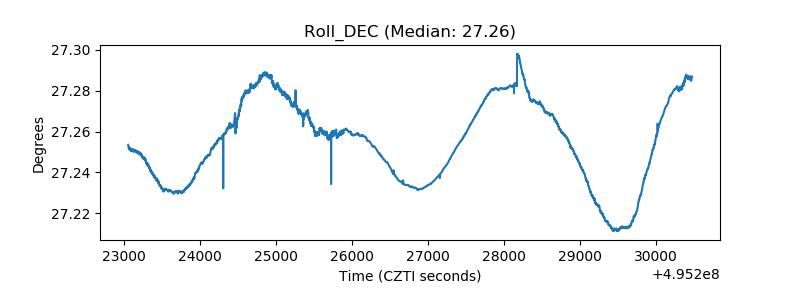

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
