| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_057T04_9000006508_53857cztM0_level2.fits | modeM0/AS1A14_057T04_9000006508_53857cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,604,329,920 | 234,037,440 |
| Size | 1.5 GB | 223.2 MB |
| Events in quadrant A | 10,893,937 | 1,627,806 |
| Events in quadrant B | 14,046,206 | 1,570,313 |
| Events in quadrant C | 20,051,247 | 1,259,105 |
| Events in quadrant D | 13,027,315 | 1,406,741 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44414 | 3 |
| B | 0 | 54006 | 5 |
| C | 0 | 71874 | 3 |
| D | 0 | 50850 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 358 | 0 |
| B | 0 | 358 | 0 |
| C | 0 | 358 | 0 |
| D | 0 | 358 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17722 | 591 | 3.334838% |
| B | 17721 | 2065 | 11.652841% |
| C | 17721 | 3545 | 20.004514% |
| D | 17722 | 1283 | 7.239589% |

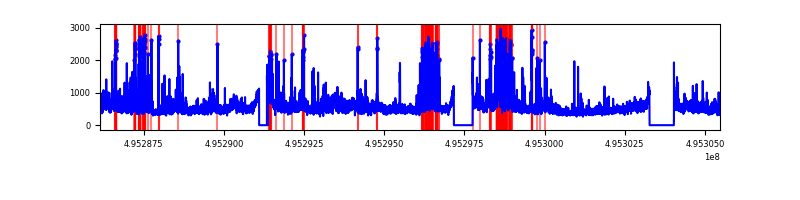

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19337 | 17726 | 346 | 346 | 1.79% | 1.95% |  |
| B | 19336 | 17725 | 1547 | 1547 | 8.00% | 8.73% |  |
| C | 19336 | 17725 | 3164 | 3164 | 16.36% | 17.85% |  |
| D | 19337 | 17726 | 1308 | 1308 | 6.76% | 7.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 1236678 | 2638.99 | 1907 | 1858 | 467.9 |
| A | 10 | 253 | 878234 | 1872.94 | 1907 | 1858 | 467.9 |
| A | 0 | 8 | 753436 | 1606.23 | 1907 | 1858 | 467.9 |
| B | 5 | 172 | 2489370 | 6481.36 | 1802 | 1740 | 383.8 |
| B | 0 | 213 | 1843067 | 4797.46 | 1802 | 1740 | 383.8 |
| B | 5 | 185 | 1509274 | 3927.78 | 1802 | 1740 | 383.8 |
| C | 15 | 224 | 8108431 | 17485.25 | 1694 | 1681 | 463.6 |
| C | 1 | 241 | 1716868 | 3699.45 | 1694 | 1681 | 463.6 |
| C | 12 | 2 | 1348374 | 2904.65 | 1694 | 1681 | 463.6 |
| D | 10 | 172 | 1853264 | 3600.08 | 1823 | 1749 | 514.3 |
| D | 3 | 12 | 1421338 | 2760.25 | 1823 | 1749 | 514.3 |
| D | 3 | 224 | 660592 | 1281.05 | 1823 | 1749 | 514.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

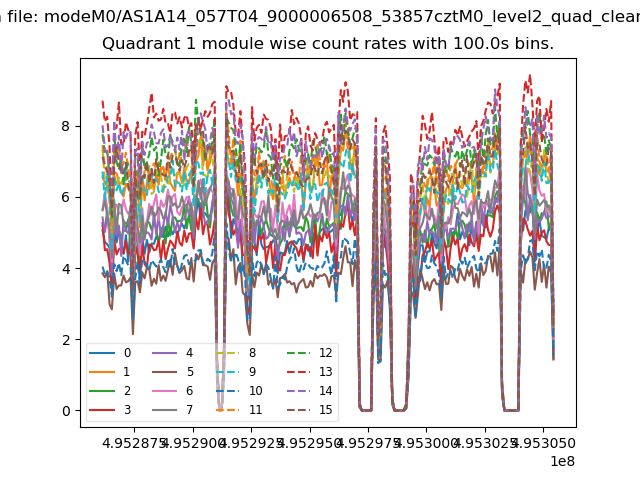

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

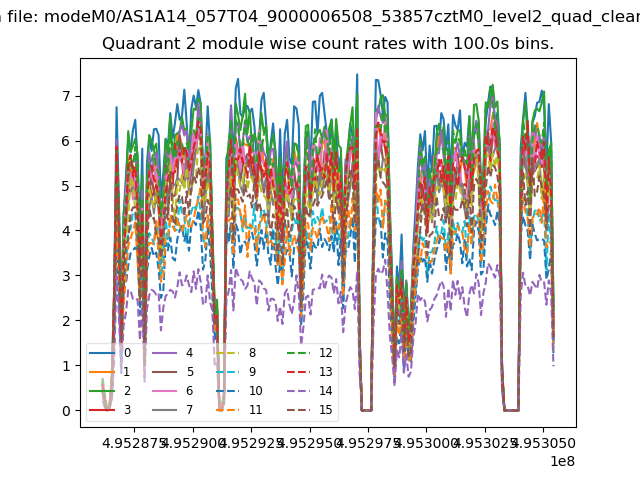

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

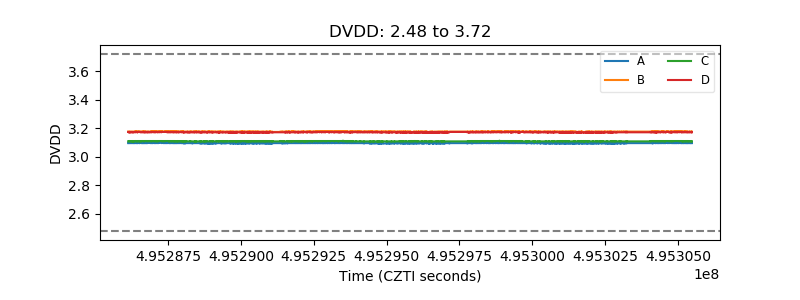

| D_VDD |  |
| Temperature 1 |  |

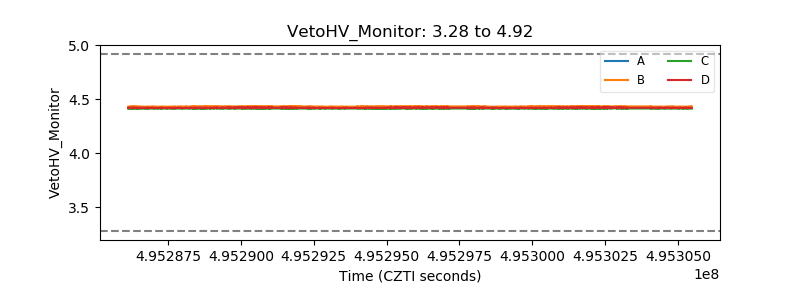

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

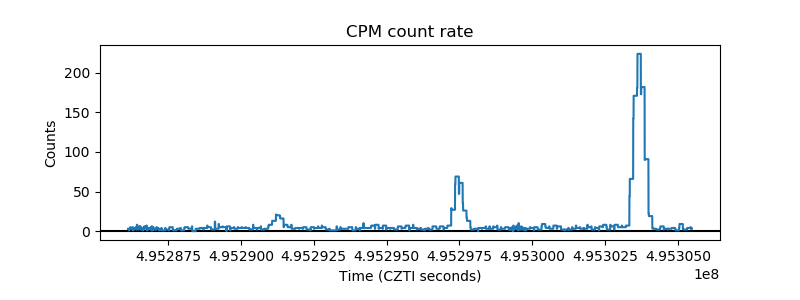

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

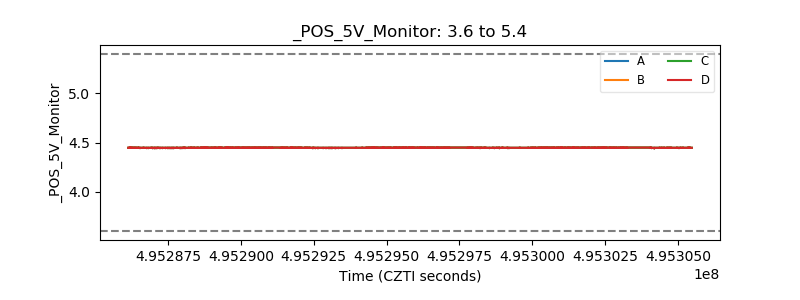

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

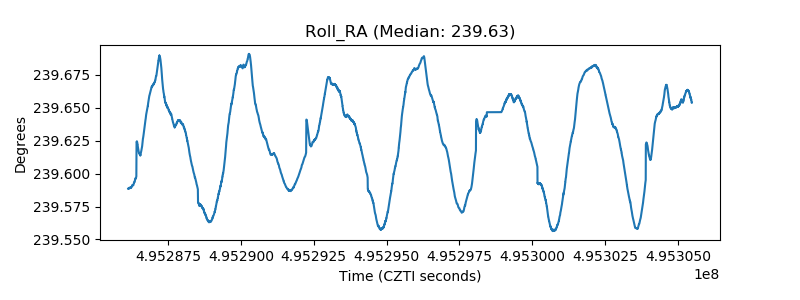

| _Roll_RA |  |
| Veto Counter |  |
