| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_057T04_9000006508_53883cztM0_level2.fits | modeM0/AS1A14_057T04_9000006508_53883cztM0_level2_quad_clean.evt |
| Size (bytes) | 715,616,640 | 83,738,880 |
| Size | 682.5 MB | 79.9 MB |
| Events in quadrant A | 5,742,945 | 543,702 |
| Events in quadrant B | 3,442,807 | 661,046 |
| Events in quadrant C | 6,958,270 | 494,097 |
| Events in quadrant D | 9,840,950 | 381,693 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22493 | 839 |
| B | 0 | 15096 | 399 |
| C | 0 | 26750 | 1699 |
| D | 0 | 35297 | 1613 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 135 | 3 |
| B | 0 | 134 | 6 |
| C | 0 | 137 | 5 |
| D | 0 | 138 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 1 |
| B | 1 | 1 | 1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6537 | 984 | 15.052777% |
| B | 6576 | 101 | 1.535888% |
| C | 6472 | 1245 | 19.236712% |
| D | 6470 | 2290 | 35.394127% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

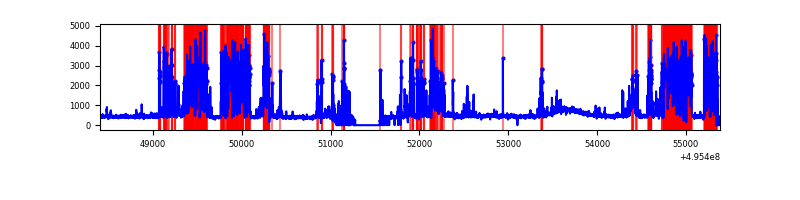

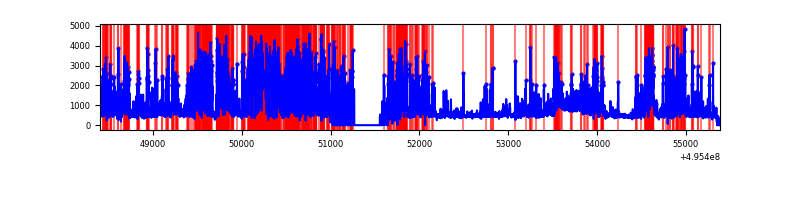

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6978 | 6615 | 787 | 787 | 11.28% | 11.90% |  |
| B | 6976 | 6653 | 25 | 25 | 0.36% | 0.38% |  |
| C | 6982 | 6555 | 936 | 936 | 13.41% | 14.28% |  |
| D | 6964 | 6560 | 1881 | 1881 | 27.01% | 28.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 2690251 | 16031.98 | 677 | 658 | 167.8 |
| A | 0 | 8 | 253200 | 1505.34 | 677 | 658 | 167.8 |
| A | 3 | 45 | 35968 | 210.47 | 677 | 658 | 167.8 |
| B | 7 | 0 | 231790 | 1478.96 | 721 | 698 | 156.3 |
| B | 5 | 185 | 106635 | 677.99 | 721 | 698 | 156.3 |
| B | 8 | 234 | 71240 | 451.46 | 721 | 698 | 156.3 |
| C | 15 | 224 | 3853215 | 22349.72 | 633 | 628 | 172.4 |
| C | 15 | 209 | 375223 | 2173.11 | 633 | 628 | 172.4 |
| C | 15 | 158 | 67604 | 388.54 | 633 | 628 | 172.4 |
| D | 8 | 176 | 5894681 | 35060.78 | 589 | 562 | 168.1 |
| D | 6 | 239 | 1130215 | 6719.67 | 589 | 562 | 168.1 |
| D | 13 | 153 | 116058 | 687.02 | 589 | 562 | 168.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

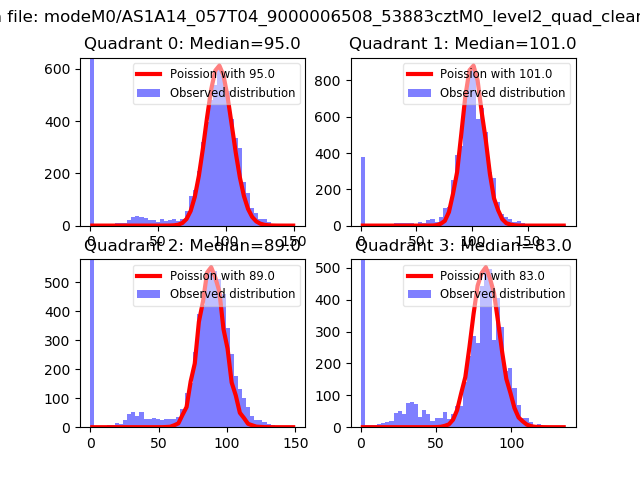

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

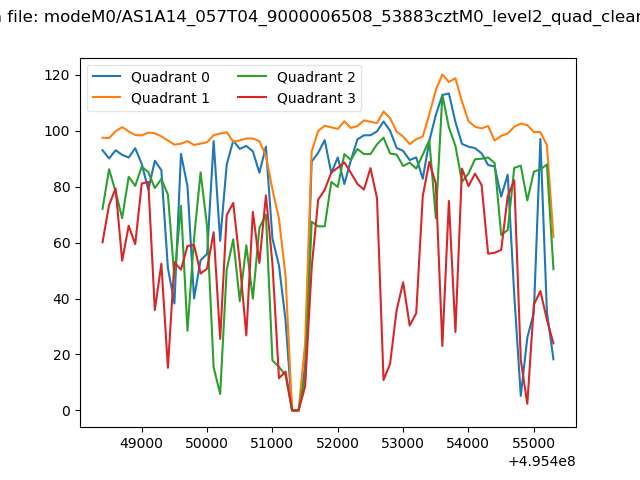

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

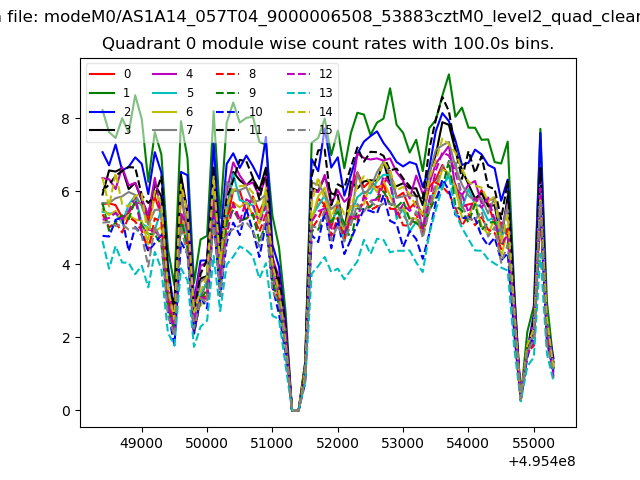

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

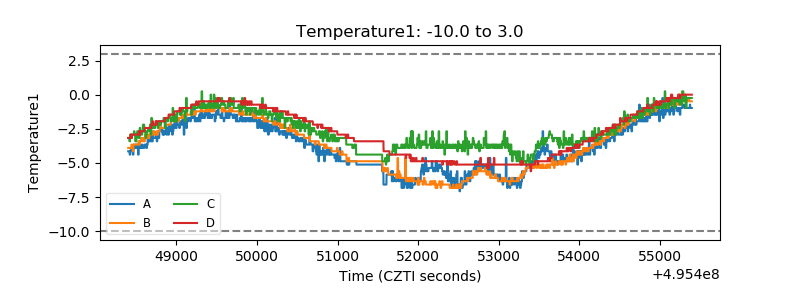

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

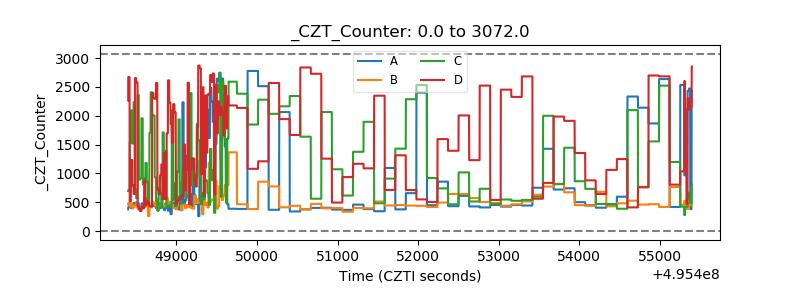

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

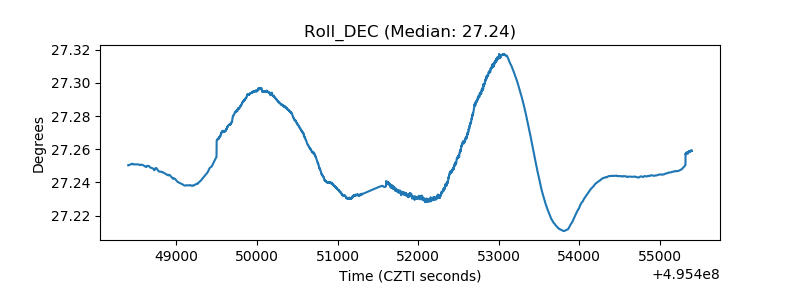

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
