| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_057T04_9000006508_53920cztM0_level2.fits | modeM0/AS1A14_057T04_9000006508_53920cztM0_level2_quad_clean.evt |
| Size (bytes) | 680,947,200 | 82,779,840 |
| Size | 649.4 MB | 78.9 MB |
| Events in quadrant A | 3,345,623 | 643,736 |
| Events in quadrant B | 3,481,682 | 684,554 |
| Events in quadrant C | 4,850,379 | 537,254 |
| Events in quadrant D | 13,034,667 | 197,382 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14419 | 2 |
| B | 0 | 14777 | 2 |
| C | 0 | 18976 | 2 |
| D | 0 | 43138 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6359 | 115 | 1.808460% |
| B | 6359 | 151 | 2.374587% |
| C | 6358 | 819 | 12.881409% |
| D | 6358 | 4300 | 67.631331% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6360 | 95 | 95 | 1.25% | 1.49% |  |
| B | 7574 | 6359 | 72 | 72 | 0.95% | 1.13% |  |
| C | 7573 | 6359 | 794 | 794 | 10.48% | 12.49% |  |
| D | 7572 | 6357 | 4111 | 4111 | 54.29% | 64.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 258147 | 1489.06 | 701 | 683 | 172.9 |
| A | 7 | 14 | 91654 | 526.14 | 701 | 683 | 172.9 |
| A | 0 | 8 | 64987 | 371.91 | 701 | 683 | 172.9 |
| B | 0 | 213 | 268592 | 1794.76 | 697 | 671 | 149.3 |
| B | 5 | 185 | 106146 | 706.56 | 697 | 671 | 149.3 |
| B | 5 | 172 | 95721 | 636.72 | 697 | 671 | 149.3 |
| C | 1 | 241 | 2110953 | 12054.84 | 636 | 633 | 175.1 |
| C | 15 | 230 | 49148 | 277.13 | 636 | 633 | 175.1 |
| C | 13 | 3 | 39461 | 221.8 | 636 | 633 | 175.1 |
| D | 8 | 176 | 11045140 | 103111.48 | 373 | 357 | 107.1 |
| D | 2 | 165 | 195640 | 1823.12 | 373 | 357 | 107.1 |
| D | 3 | 12 | 130335 | 1213.44 | 373 | 357 | 107.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

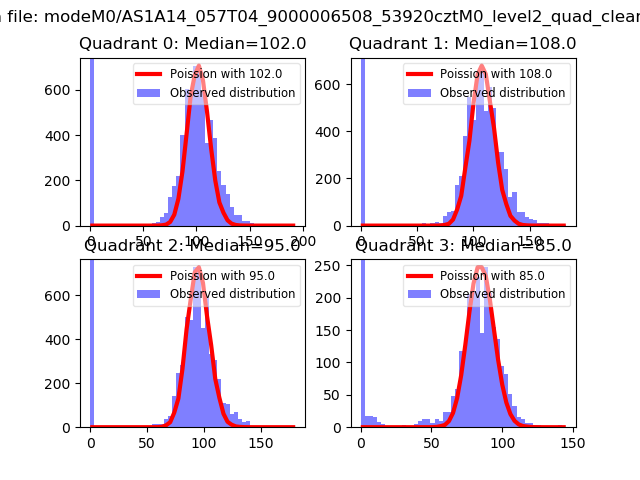

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
