| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_057T04_9000006508_53938cztM0_level2.fits | modeM0/AS1A14_057T04_9000006508_53938cztM0_level2_quad_clean.evt |
| Size (bytes) | 711,302,400 | 94,132,800 |
| Size | 678.4 MB | 89.8 MB |
| Events in quadrant A | 4,469,783 | 671,983 |
| Events in quadrant B | 4,036,380 | 710,944 |
| Events in quadrant C | 5,048,579 | 614,539 |
| Events in quadrant D | 12,210,605 | 346,510 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18224 | 2 |
| B | 0 | 17261 | 2 |
| C | 0 | 20153 | 2 |
| D | 0 | 41272 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7274 | 284 | 3.904317% |
| B | 7274 | 411 | 5.650261% |
| C | 7274 | 684 | 9.403354% |
| D | 7274 | 3438 | 47.264229% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

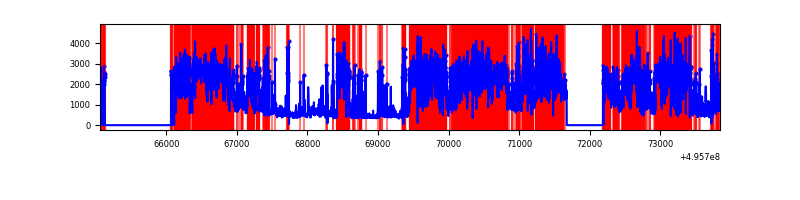

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8784 | 7278 | 60 | 60 | 0.68% | 0.82% |  |
| B | 8784 | 7278 | 103 | 103 | 1.17% | 1.42% |  |
| C | 8784 | 7278 | 567 | 567 | 6.45% | 7.79% |  |
| D | 8784 | 7278 | 3110 | 3110 | 35.41% | 42.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 414513 | 2069.68 | 816 | 794 | 199.9 |
| A | 12 | 115 | 271876 | 1356.12 | 816 | 794 | 199.9 |
| A | 0 | 8 | 241043 | 1201.87 | 816 | 794 | 199.9 |
| B | 0 | 213 | 525757 | 3020.12 | 805 | 778 | 173.8 |
| B | 5 | 236 | 103307 | 589.83 | 805 | 778 | 173.8 |
| B | 0 | 155 | 50601 | 286.62 | 805 | 778 | 173.8 |
| C | 1 | 241 | 1639959 | 7827.68 | 772 | 766 | 209.4 |
| C | 12 | 2 | 89658 | 424.49 | 772 | 766 | 209.4 |
| C | 12 | 252 | 66801 | 315.34 | 772 | 766 | 209.4 |
| D | 8 | 176 | 7279321 | 43290.3 | 589 | 563 | 168.1 |
| D | 0 | 129 | 876208 | 5207.88 | 589 | 563 | 168.1 |
| D | 10 | 172 | 826789 | 4913.97 | 589 | 563 | 168.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

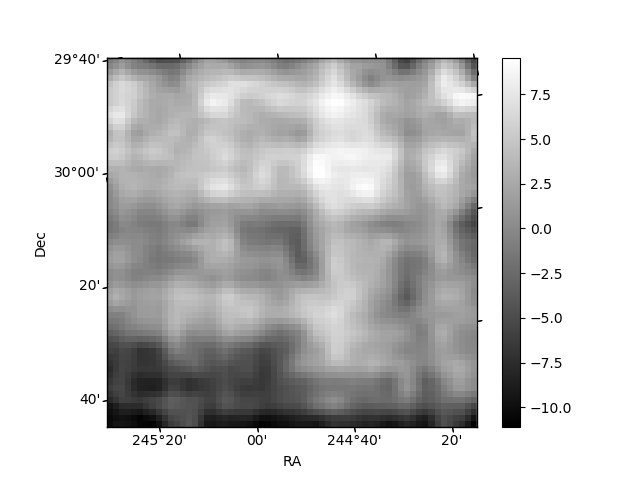

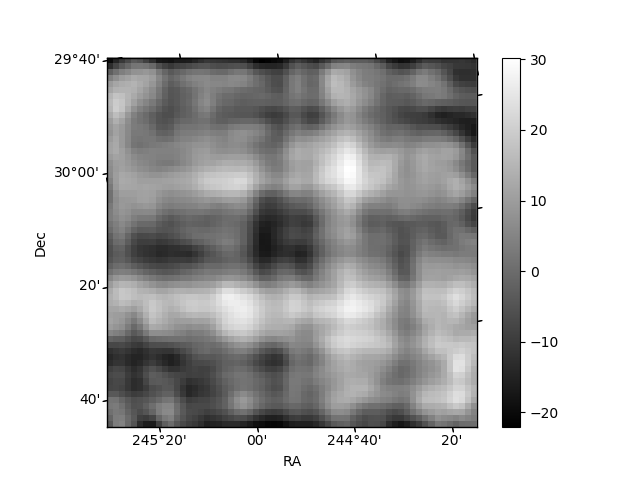

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

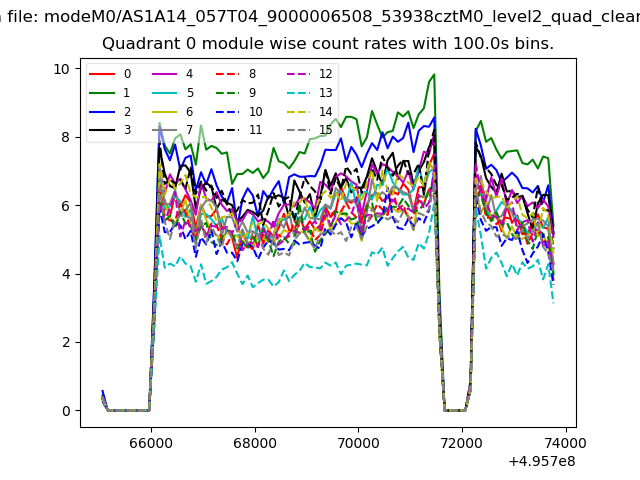

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

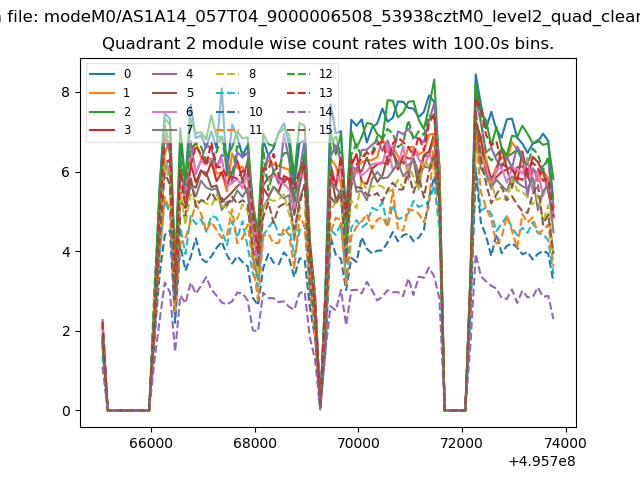

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

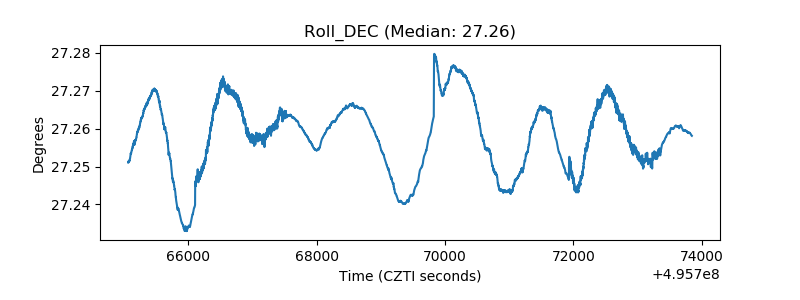

| _Roll_DEC |  |

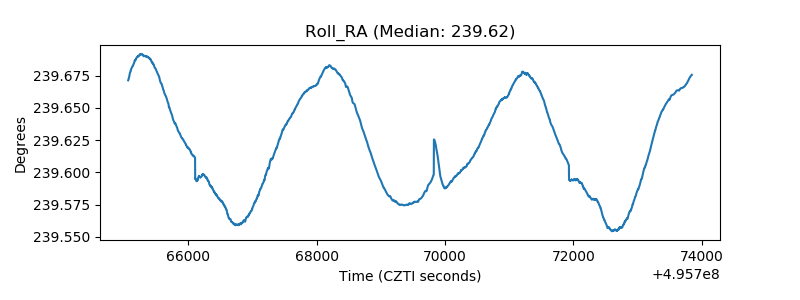

| _Roll_RA |  |

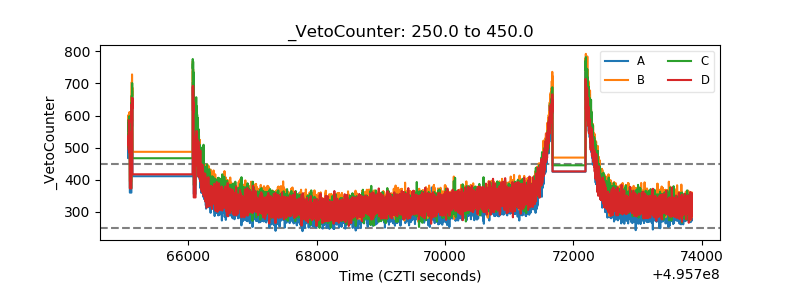

| Veto Counter |  |
