| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_057T04_9000006508_53953cztM0_level2.fits | modeM0/AS1A14_057T04_9000006508_53953cztM0_level2_quad_clean.evt |
| Size (bytes) | 844,666,560 | 86,912,640 |
| Size | 805.5 MB | 82.9 MB |
| Events in quadrant A | 4,091,053 | 690,518 |
| Events in quadrant B | 4,353,717 | 727,528 |
| Events in quadrant C | 7,146,282 | 578,839 |
| Events in quadrant D | 15,086,865 | 108,243 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17509 | 2 |
| B | 0 | 18260 | 2 |
| C | 0 | 26690 | 3 |
| D | 0 | 50073 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7569 | 375 | 4.954419% |
| B | 7569 | 474 | 6.262386% |
| C | 7568 | 1373 | 18.142178% |
| D | 7568 | 6417 | 84.791226% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

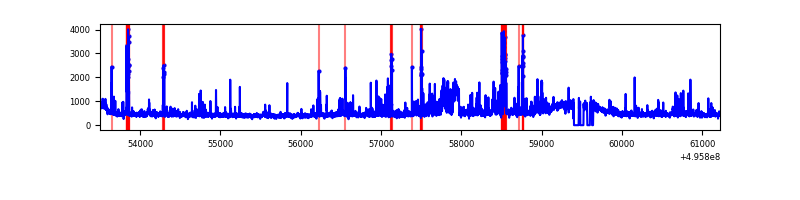

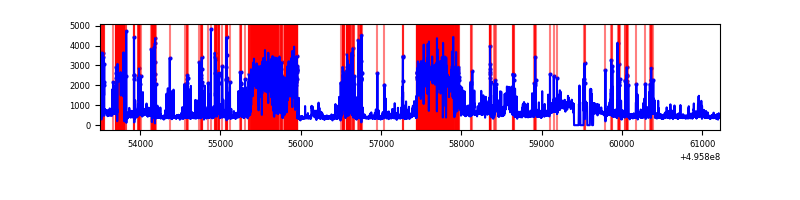

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7719 | 7573 | 50 | 50 | 0.65% | 0.66% |  |
| B | 7719 | 7573 | 72 | 72 | 0.93% | 0.95% |  |
| C | 7718 | 7572 | 1084 | 1084 | 14.05% | 14.32% |  |
| D | 7718 | 7570 | 4165 | 4165 | 53.96% | 55.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 289174 | 1389.07 | 852 | 830 | 207.6 |
| A | 12 | 115 | 146310 | 700.84 | 852 | 830 | 207.6 |
| A | 0 | 8 | 61246 | 291.05 | 852 | 830 | 207.6 |
| B | 0 | 213 | 508199 | 2783.86 | 846 | 814 | 182.3 |
| B | 4 | 171 | 142335 | 776.48 | 846 | 814 | 182.3 |
| B | 0 | 155 | 114106 | 621.6 | 846 | 814 | 182.3 |
| C | 1 | 241 | 2362948 | 10978.08 | 787 | 779 | 215.2 |
| C | 13 | 3 | 506309 | 2349.43 | 787 | 779 | 215.2 |
| C | 9 | 38 | 499468 | 2317.64 | 787 | 779 | 215.2 |
| D | 8 | 176 | 12782829 | 147554.57 | 298 | 284 | 86.6 |
| D | 5 | 113 | 480311 | 5541.16 | 298 | 284 | 86.6 |
| D | 6 | 239 | 127487 | 1468.36 | 298 | 284 | 86.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

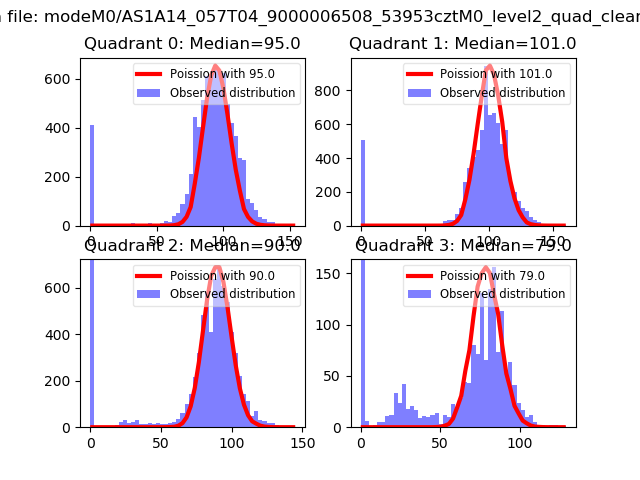

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

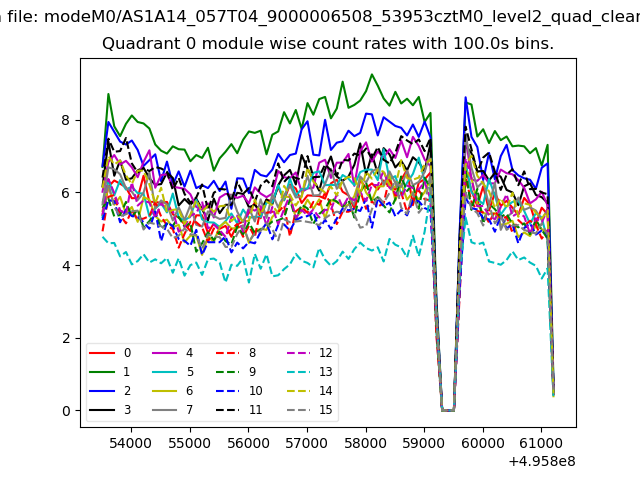

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

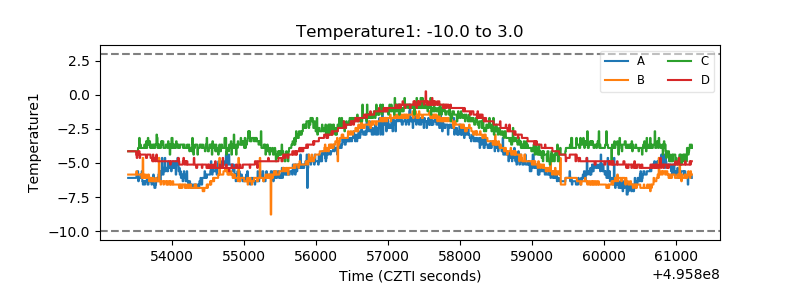

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

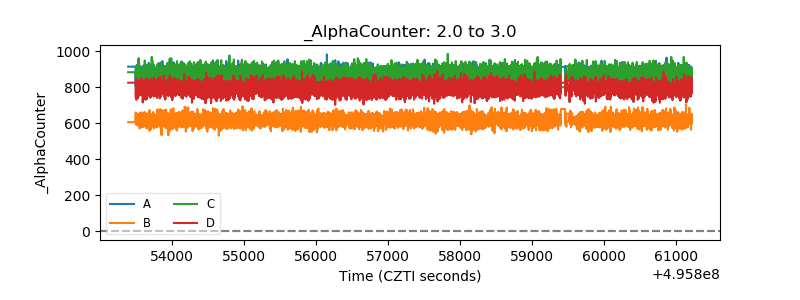

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

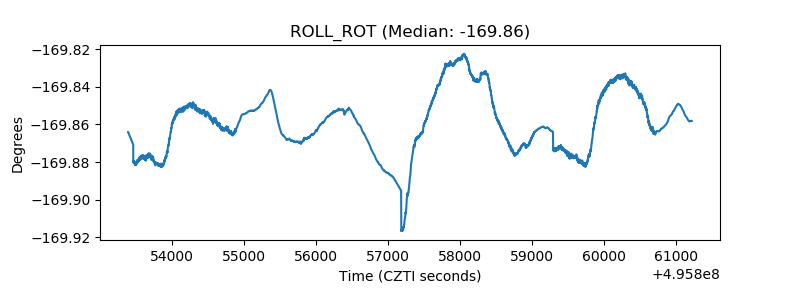

| _ROLL_ROT |  |
| _Roll_DEC |  |

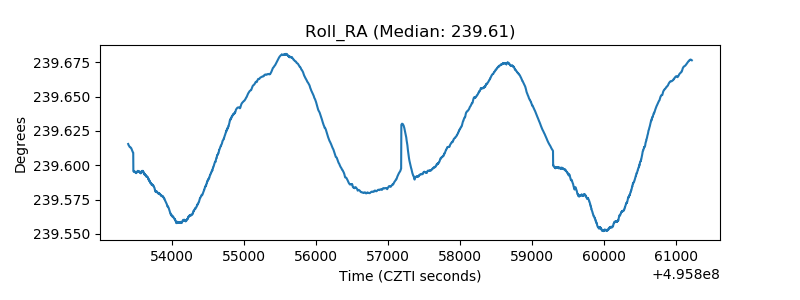

| _Roll_RA |  |
| Veto Counter |  |
