| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_041T01_9000006510_53993cztM0_level2.fits | modeM0/AS1A14_041T01_9000006510_53993cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,552,000 | 81,835,200 |
| Size | 684.3 MB | 78.0 MB |
| Events in quadrant A | 3,200,579 | 645,279 |
| Events in quadrant B | 8,431,940 | 479,430 |
| Events in quadrant C | 3,896,031 | 604,242 |
| Events in quadrant D | 10,541,936 | 307,128 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14204 | 2 |
| B | 0 | 29532 | 6 |
| C | 0 | 16076 | 2 |
| D | 0 | 35774 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6332 | 113 | 1.784586% |
| B | 6331 | 2280 | 36.013268% |
| C | 6331 | 272 | 4.296320% |
| D | 6331 | 2982 | 47.101564% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

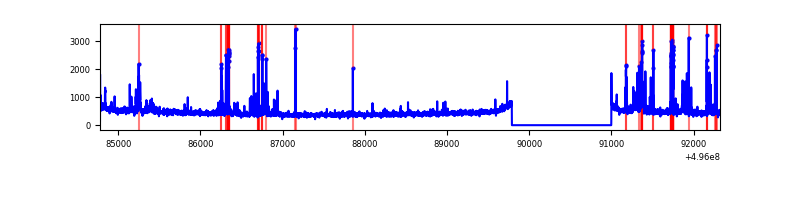

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

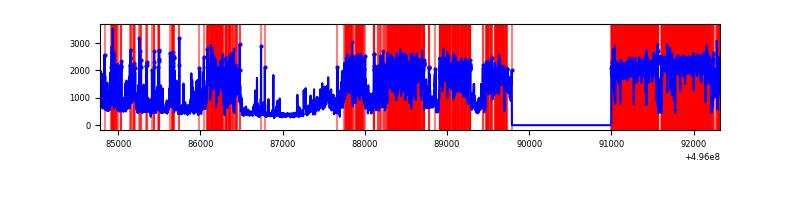

| A | 7542 | 6333 | 73 | 73 | 0.97% | 1.15% |  |
| B | 7541 | 6331 | 1546 | 1546 | 20.50% | 24.42% |  |

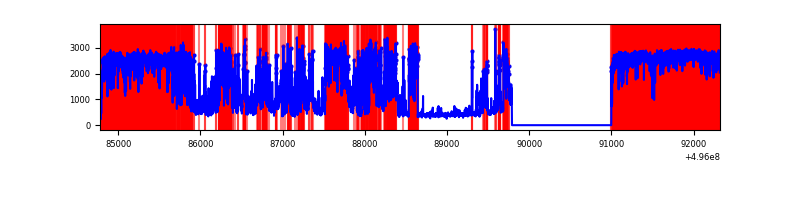

| C | 7541 | 6331 | 208 | 208 | 2.76% | 3.29% |  |
| D | 7540 | 6330 | 2868 | 2868 | 38.04% | 45.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 360651 | 2121.54 | 685 | 669 | 169.7 |
| A | 0 | 8 | 37104 | 214.73 | 685 | 669 | 169.7 |
| A | 8 | 6 | 33790 | 195.2 | 685 | 669 | 169.7 |
| B | 4 | 81 | 5342341 | 43398.5 | 584 | 565 | 123.1 |
| B | 0 | 213 | 334721 | 2714.8 | 584 | 565 | 123.1 |
| B | 0 | 155 | 207492 | 1681.15 | 584 | 565 | 123.1 |
| C | 1 | 241 | 436724 | 2354.2 | 673 | 666 | 185.2 |
| C | 14 | 80 | 225064 | 1211.49 | 673 | 666 | 185.2 |
| C | 12 | 2 | 142786 | 767.28 | 673 | 666 | 185.2 |
| D | 8 | 176 | 7412621 | 57748.96 | 448 | 429 | 128.4 |
| D | 6 | 239 | 682327 | 5312.72 | 448 | 429 | 128.4 |
| D | 2 | 165 | 244756 | 1903.57 | 448 | 429 | 128.4 |

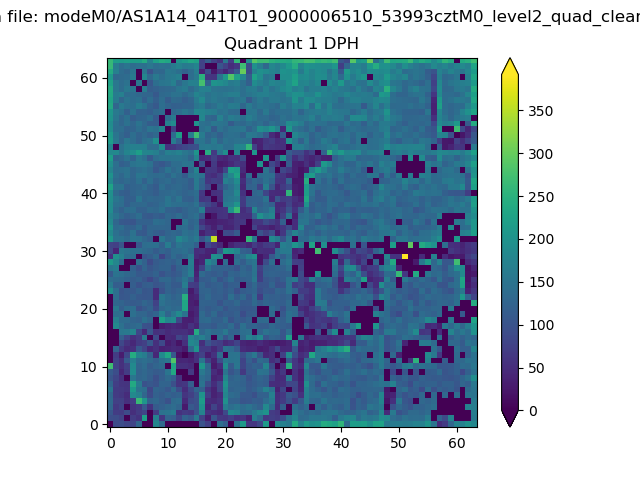

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

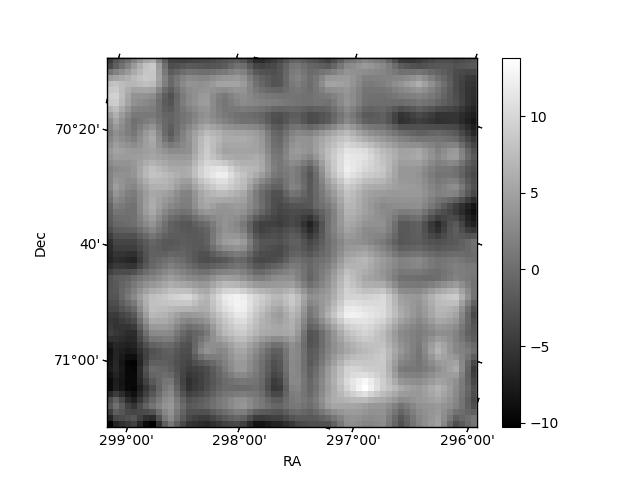

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

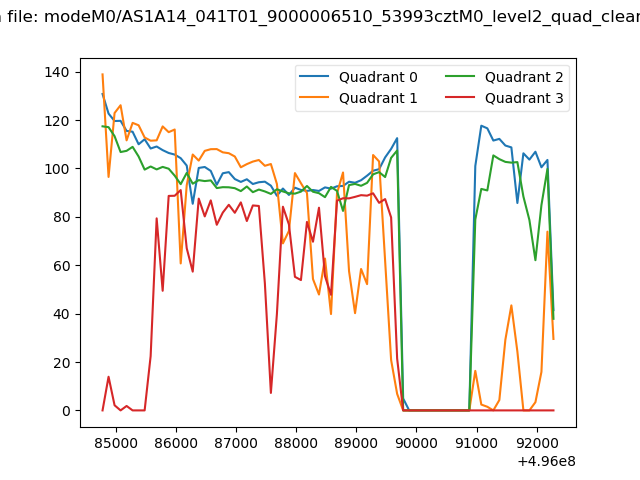

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

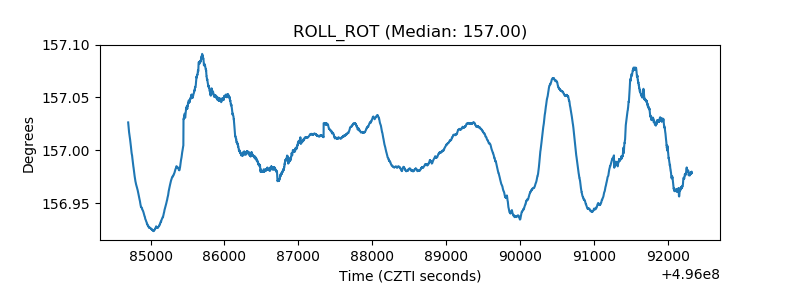

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

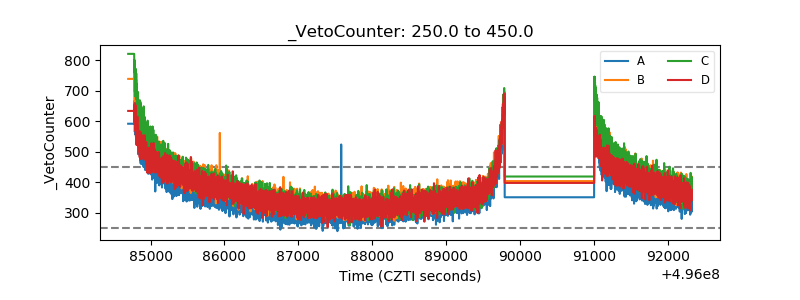

| Veto Counter |  |
