| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_041T01_9000006510_54005cztM0_level2.fits | modeM0/AS1A14_041T01_9000006510_54005cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,480,000 | 77,734,080 |
| Size | 675.7 MB | 74.1 MB |
| Events in quadrant A | 3,188,835 | 606,974 |
| Events in quadrant B | 7,337,903 | 511,852 |
| Events in quadrant C | 3,499,592 | 573,073 |
| Events in quadrant D | 11,708,419 | 220,559 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14213 | 1 |
| B | 0 | 26070 | 4 |
| C | 0 | 14893 | 1 |
| D | 0 | 39134 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6320 | 143 | 2.262658% |
| B | 6319 | 1604 | 25.383763% |
| C | 6320 | 97 | 1.534810% |
| D | 6320 | 4014 | 63.512658% |

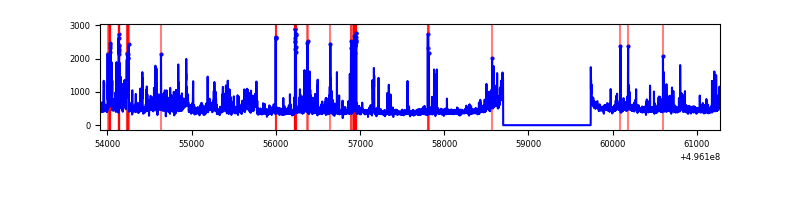

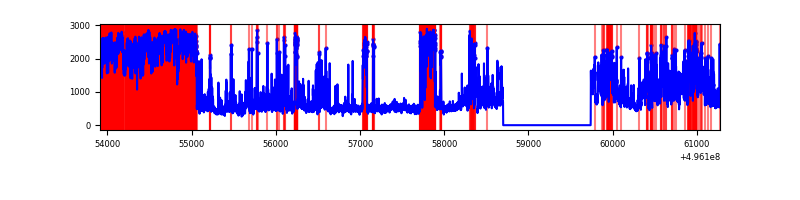

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7359 | 6319 | 108 | 108 | 1.47% | 1.71% |  |
| B | 7358 | 6318 | 1357 | 1357 | 18.44% | 21.48% |  |
| C | 7359 | 6319 | 74 | 74 | 1.01% | 1.17% |  |
| D | 7359 | 6319 | 3351 | 3351 | 45.54% | 53.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 384938 | 2337.27 | 665 | 648 | 164.4 |
| A | 0 | 8 | 119079 | 720.3 | 665 | 648 | 164.4 |
| A | 7 | 14 | 19375 | 113.9 | 665 | 648 | 164.4 |
| B | 5 | 250 | 2228407 | 17416.62 | 598 | 577 | 127.9 |
| B | 4 | 81 | 1519457 | 11874.22 | 598 | 577 | 127.9 |
| B | 2 | 249 | 491752 | 3839.88 | 598 | 577 | 127.9 |
| C | 12 | 250 | 426813 | 2394.83 | 646 | 638 | 178.0 |
| C | 9 | 53 | 171611 | 960.76 | 646 | 638 | 178.0 |
| C | 13 | 3 | 132955 | 743.54 | 646 | 638 | 178.0 |
| D | 8 | 176 | 9452849 | 85585.88 | 378 | 361 | 110.4 |
| D | 6 | 239 | 359397 | 3250.83 | 378 | 361 | 110.4 |
| D | 6 | 127 | 100041 | 902.53 | 378 | 361 | 110.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

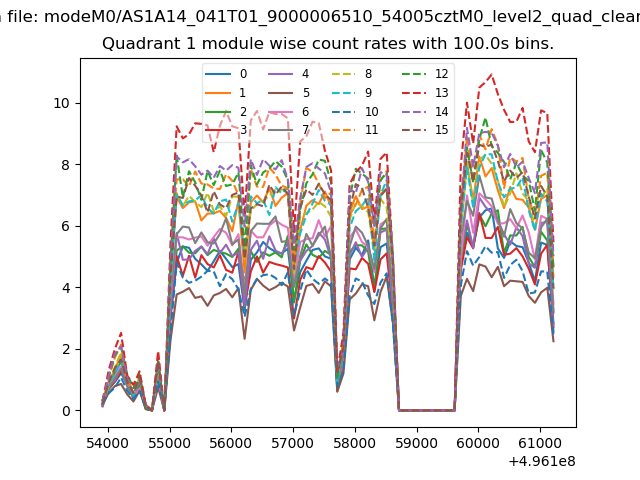

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

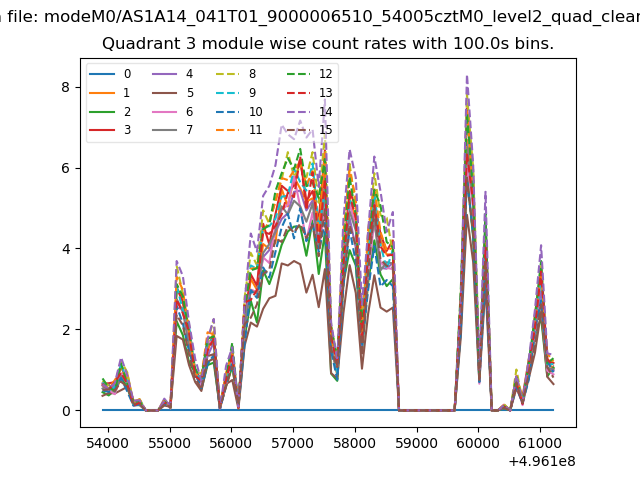

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

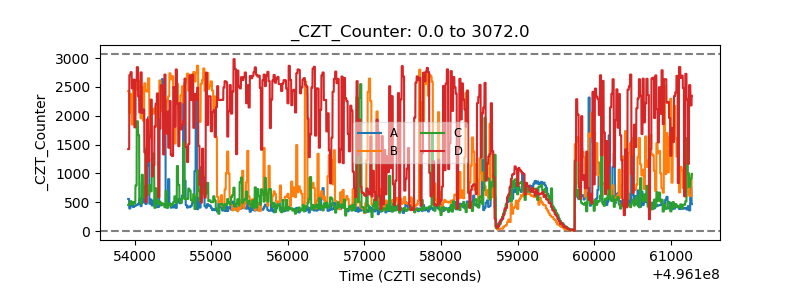

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

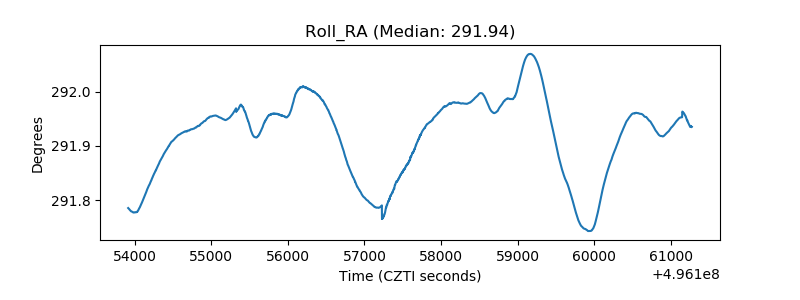

| _Roll_RA |  |
| Veto Counter |  |
