| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_041T01_9000006510_54032cztM0_level2.fits | modeM0/AS1A14_041T01_9000006510_54032cztM0_level2_quad_clean.evt |
| Size (bytes) | 700,637,760 | 93,939,840 |
| Size | 668.2 MB | 89.6 MB |
| Events in quadrant A | 4,025,597 | 662,809 |
| Events in quadrant B | 3,818,806 | 732,327 |
| Events in quadrant C | 5,897,289 | 561,864 |
| Events in quadrant D | 11,632,965 | 383,861 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17105 | 2 |
| B | 0 | 16233 | 2 |
| C | 0 | 22487 | 3 |
| D | 0 | 39579 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7224 | 343 | 4.748062% |
| B | 7224 | 247 | 3.419158% |
| C | 7224 | 1002 | 13.870432% |
| D | 7224 | 2935 | 40.628461% |

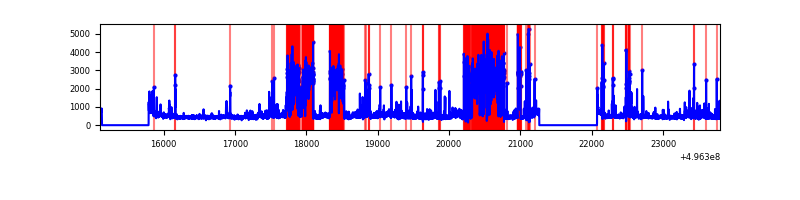

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8689 | 7225 | 215 | 215 | 2.47% | 2.98% |  |
| B | 8689 | 7226 | 92 | 92 | 1.06% | 1.27% |  |
| C | 8689 | 7226 | 843 | 843 | 9.70% | 11.67% |  |
| D | 8688 | 7225 | 2488 | 2488 | 28.64% | 34.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 807697 | 4290.59 | 766 | 746 | 188.1 |
| A | 0 | 8 | 100857 | 532.29 | 766 | 746 | 188.1 |
| A | 4 | 249 | 25771 | 133.06 | 766 | 746 | 188.1 |
| B | 5 | 236 | 310585 | 1898.93 | 762 | 734 | 163.2 |
| B | 0 | 213 | 125334 | 763.62 | 762 | 734 | 163.2 |
| B | 7 | 252 | 42324 | 254.89 | 762 | 734 | 163.2 |
| C | 4 | 5 | 1246506 | 6329.35 | 709 | 700 | 196.8 |
| C | 12 | 249 | 1189949 | 6042.01 | 709 | 700 | 196.8 |
| C | 9 | 53 | 216005 | 1093.86 | 709 | 700 | 196.8 |
| D | 8 | 176 | 7116152 | 43864.66 | 580 | 555 | 162.2 |
| D | 2 | 165 | 812331 | 5004.26 | 580 | 555 | 162.2 |
| D | 3 | 12 | 715353 | 4406.43 | 580 | 555 | 162.2 |

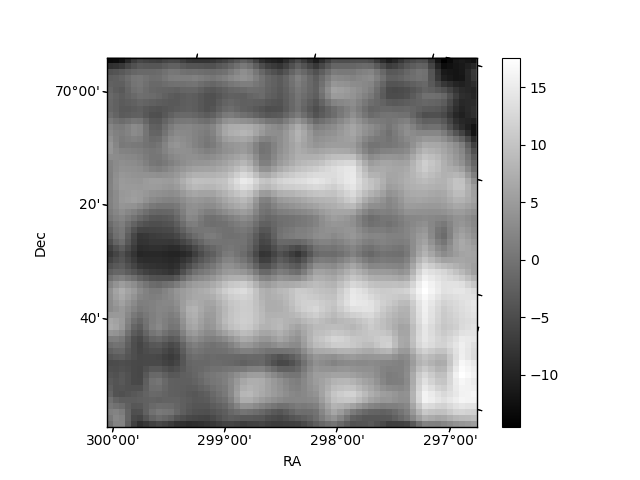

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

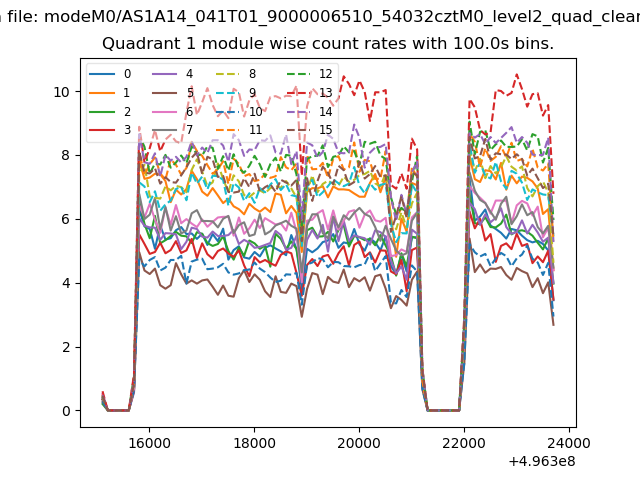

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

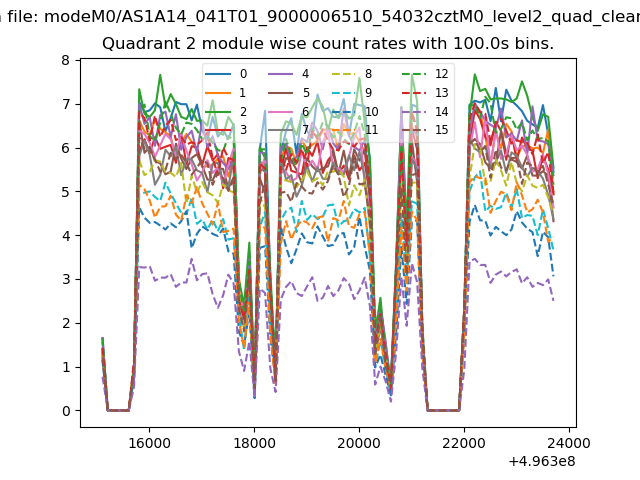

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

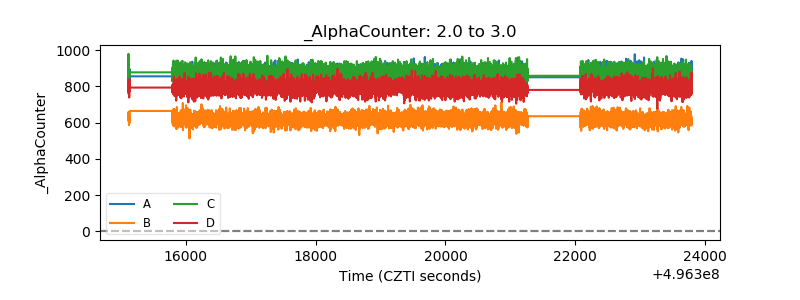

| Alpha Counter |  |
| _CPM_Rate |  |

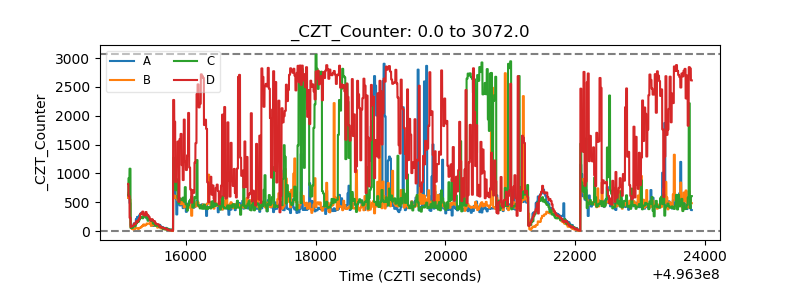

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

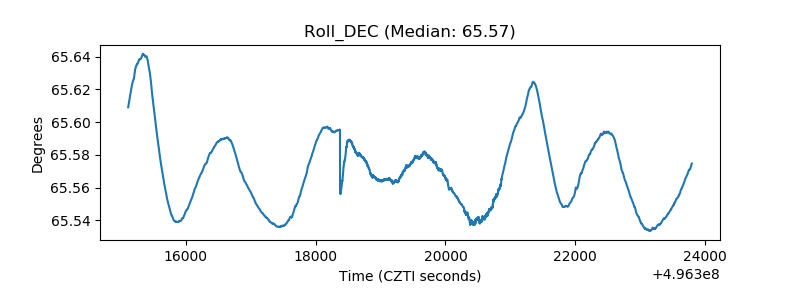

| _Roll_DEC |  |
| _Roll_RA |  |

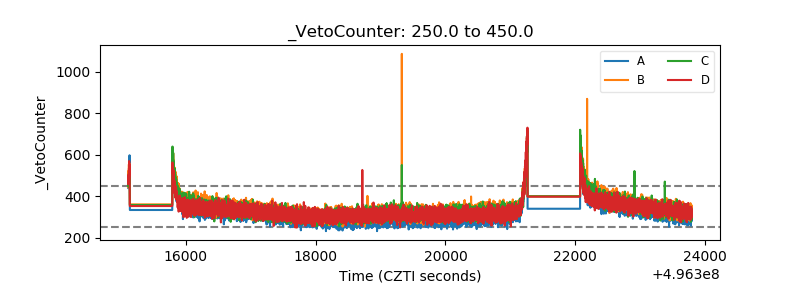

| Veto Counter |  |
