| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_041T01_9000006510_54049cztM0_level2.fits | modeM0/AS1A14_041T01_9000006510_54049cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,208,640 | 77,592,960 |
| Size | 513.3 MB | 74.0 MB |
| Events in quadrant A | 3,709,071 | 561,219 |
| Events in quadrant B | 3,144,368 | 612,391 |
| Events in quadrant C | 2,951,768 | 523,511 |
| Events in quadrant D | 9,662,139 | 243,433 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15212 | 1 |
| B | 0 | 13300 | 1 |
| C | 0 | 13208 | 1 |
| D | 0 | 32777 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5846 | 221 | 3.780363% |
| B | 5847 | 136 | 2.325979% |
| C | 5847 | 166 | 2.839063% |
| D | 5847 | 3241 | 55.430135% |

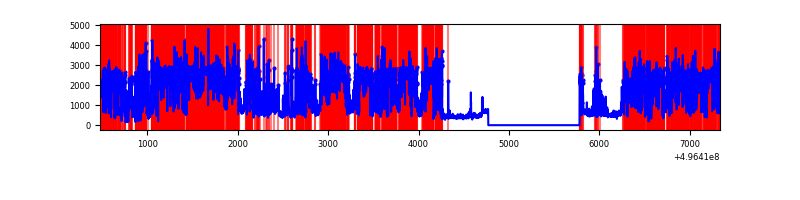

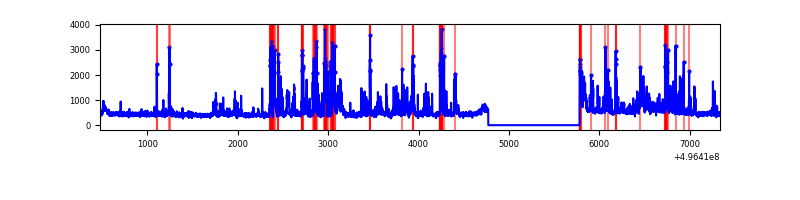

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6856 | 5847 | 132 | 132 | 1.93% | 2.26% |  |
| B | 6857 | 5848 | 55 | 55 | 0.80% | 0.94% |  |
| C | 6857 | 5848 | 114 | 114 | 1.66% | 1.95% |  |
| D | 6856 | 5847 | 2400 | 2400 | 35.01% | 41.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 533931 | 3475.92 | 614 | 597 | 153.4 |
| A | 15 | 174 | 337832 | 2197.88 | 614 | 597 | 153.4 |
| A | 12 | 115 | 314807 | 2047.82 | 614 | 597 | 153.4 |
| B | 15 | 20 | 188224 | 1433.1 | 613 | 590 | 130.9 |
| B | 5 | 236 | 161427 | 1228.43 | 613 | 590 | 130.9 |
| B | 0 | 213 | 82495 | 625.57 | 613 | 590 | 130.9 |
| C | 4 | 5 | 307222 | 1863.6 | 596 | 590 | 164.5 |
| C | 13 | 3 | 81028 | 488.87 | 596 | 590 | 164.5 |
| C | 14 | 254 | 69814 | 420.72 | 596 | 590 | 164.5 |
| D | 8 | 176 | 7738531 | 70733.61 | 379 | 361 | 109.4 |
| D | 2 | 62 | 227931 | 2080.19 | 379 | 361 | 109.4 |
| D | 3 | 12 | 97410 | 887.11 | 379 | 361 | 109.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

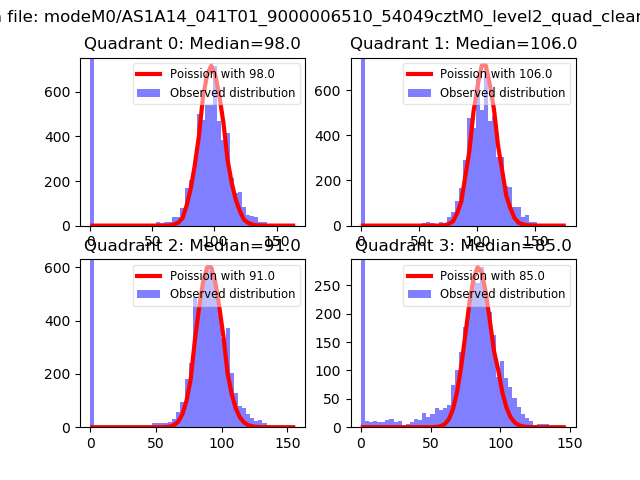

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

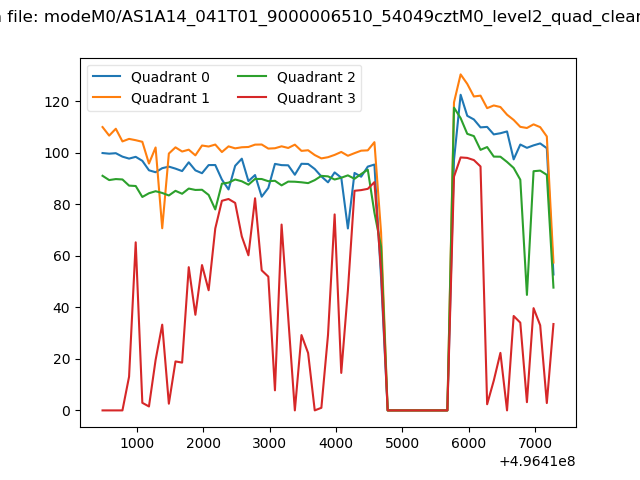

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

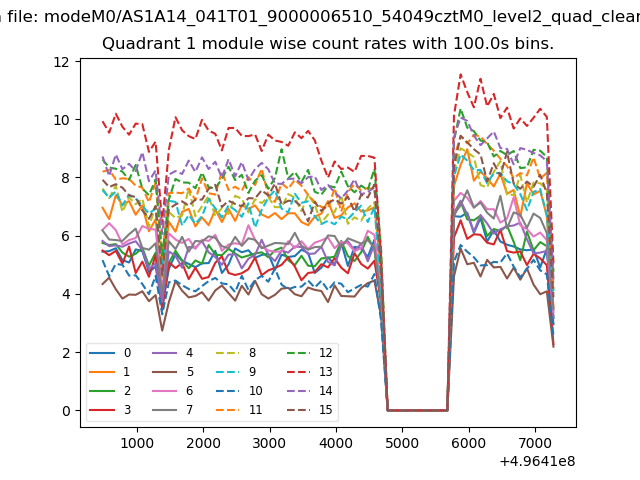

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

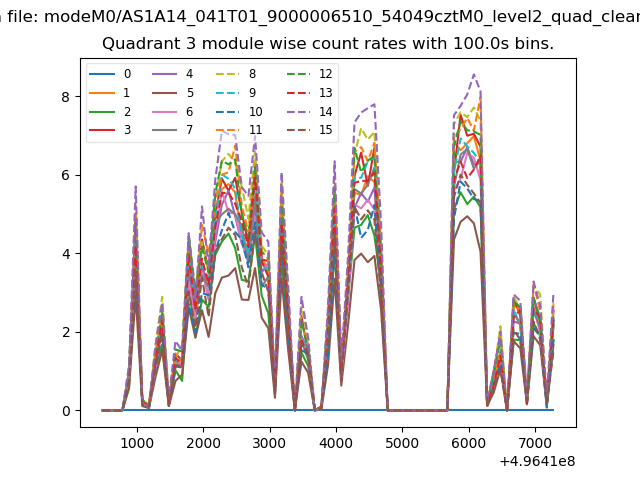

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

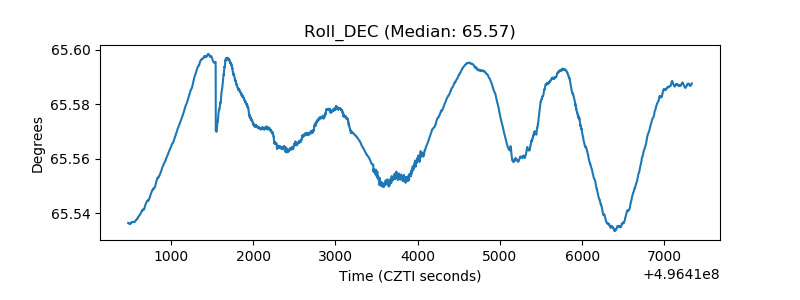

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
