| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_041T01_9000006510_54063cztM0_level2.fits | modeM0/AS1A14_041T01_9000006510_54063cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,343,680 | 94,106,880 |
| Size | 612.6 MB | 89.7 MB |
| Events in quadrant A | 3,801,175 | 639,625 |
| Events in quadrant B | 8,405,803 | 603,764 |
| Events in quadrant C | 3,597,454 | 609,330 |
| Events in quadrant D | 7,445,821 | 521,842 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16138 | 1 |
| B | 0 | 29687 | 1 |
| C | 0 | 15763 | 2 |
| D | 0 | 26883 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6805 | 292 | 4.290963% |
| B | 6806 | 1435 | 21.084337% |
| C | 6805 | 115 | 1.689934% |
| D | 6805 | 842 | 12.373255% |

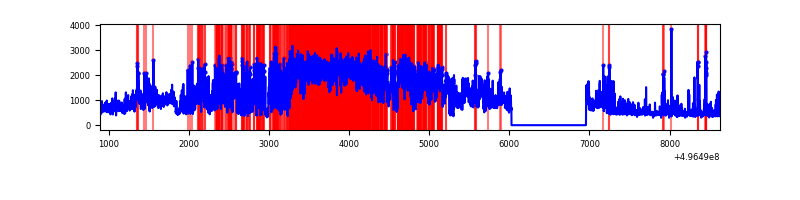

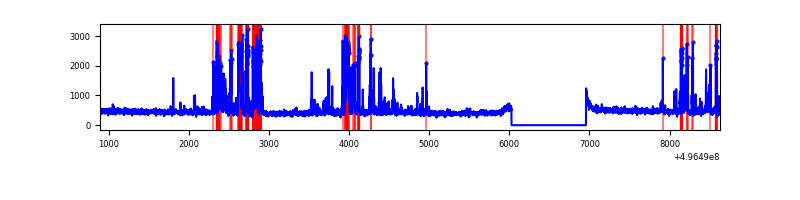

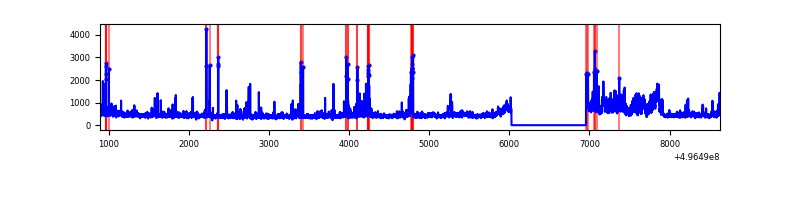

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6805 | 181 | 181 | 2.34% | 2.66% |  |
| B | 7736 | 6806 | 1181 | 1181 | 15.27% | 17.35% |  |
| C | 7735 | 6805 | 44 | 44 | 0.57% | 0.65% |  |
| D | 7735 | 6805 | 820 | 820 | 10.60% | 12.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 885258 | 4900.1 | 724 | 702 | 180.5 |
| A | 3 | 14 | 32690 | 177.2 | 724 | 702 | 180.5 |
| A | 4 | 3 | 24839 | 133.71 | 724 | 702 | 180.5 |
| B | 15 | 20 | 4384146 | 29948.33 | 691 | 667 | 146.4 |
| B | 4 | 81 | 900974 | 6150.98 | 691 | 667 | 146.4 |
| B | 0 | 213 | 133628 | 908.4 | 691 | 667 | 146.4 |
| C | 9 | 53 | 394090 | 2056.93 | 702 | 694 | 191.3 |
| C | 12 | 2 | 86473 | 448.51 | 702 | 694 | 191.3 |
| C | 9 | 38 | 83408 | 432.48 | 702 | 694 | 191.3 |
| D | 10 | 172 | 3228306 | 16607.13 | 677 | 645 | 194.4 |
| D | 8 | 176 | 426097 | 2189.06 | 677 | 645 | 194.4 |
| D | 14 | 20 | 324792 | 1667.82 | 677 | 645 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

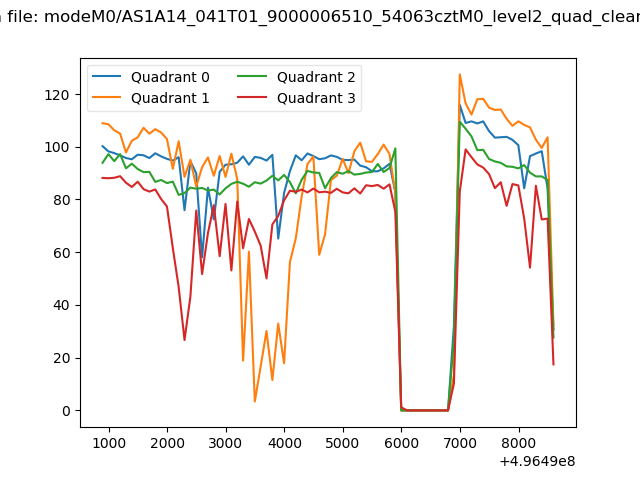

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

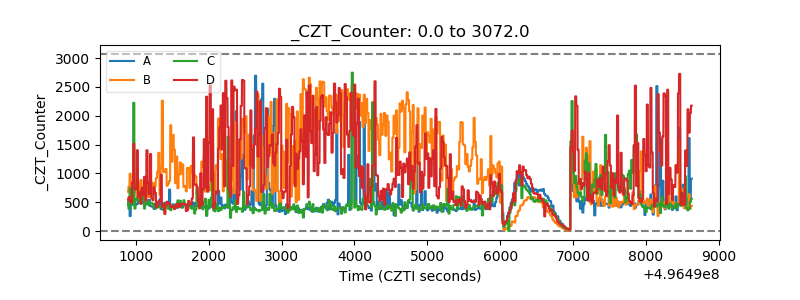

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

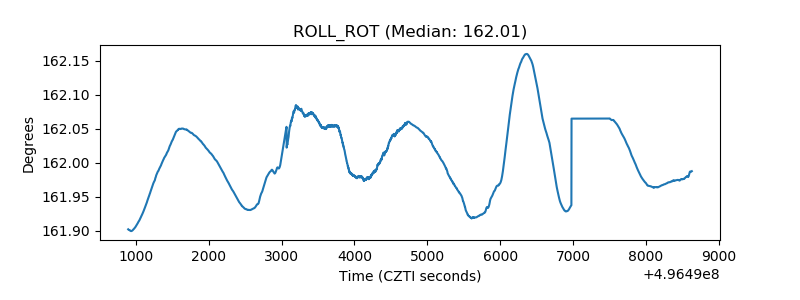

| _ROLL_ROT |  |

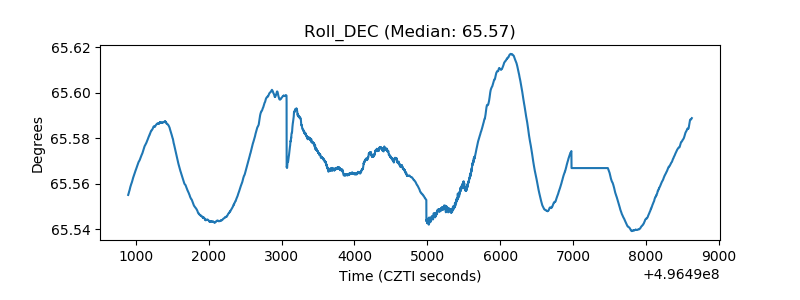

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
