| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_041T01_9000006510_54076cztM0_level2.fits | modeM0/AS1A14_041T01_9000006510_54076cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,941,760 | 85,296,960 |
| Size | 447.2 MB | 81.3 MB |
| Events in quadrant A | 3,030,881 | 578,461 |
| Events in quadrant B | 3,091,976 | 627,509 |
| Events in quadrant C | 4,087,214 | 516,084 |
| Events in quadrant D | 6,672,639 | 433,358 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13470 | 1 |
| B | 0 | 13451 | 1 |
| C | 0 | 16645 | 1 |
| D | 0 | 24103 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6119 | 136 | 2.222585% |
| B | 6119 | 146 | 2.386011% |
| C | 6120 | 422 | 6.895425% |
| D | 6120 | 1128 | 18.431373% |

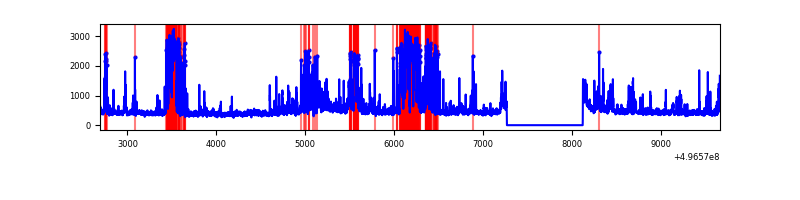

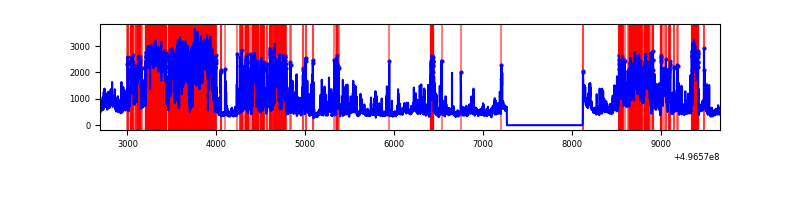

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6974 | 6120 | 54 | 54 | 0.77% | 0.88% |  |
| B | 6974 | 6120 | 50 | 50 | 0.72% | 0.82% |  |
| C | 6975 | 6121 | 367 | 367 | 5.26% | 6.00% |  |
| D | 6975 | 6121 | 1095 | 1095 | 15.70% | 17.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 302620 | 1870.98 | 652 | 635 | 161.4 |
| A | 14 | 235 | 95313 | 586.59 | 652 | 635 | 161.4 |
| A | 0 | 8 | 16756 | 99.88 | 652 | 635 | 161.4 |
| B | 0 | 213 | 126440 | 906.17 | 644 | 623 | 138.8 |
| B | 4 | 81 | 83284 | 595.35 | 644 | 623 | 138.8 |
| B | 5 | 236 | 74818 | 534.37 | 644 | 623 | 138.8 |
| C | 15 | 233 | 929789 | 5479.97 | 616 | 609 | 169.6 |
| C | 9 | 38 | 204577 | 1202.93 | 616 | 609 | 169.6 |
| C | 15 | 147 | 120951 | 709.73 | 616 | 609 | 169.6 |
| D | 8 | 176 | 3574932 | 21786.44 | 572 | 546 | 164.1 |
| D | 2 | 172 | 461404 | 2809.0 | 572 | 546 | 164.1 |
| D | 3 | 12 | 105525 | 639.86 | 572 | 546 | 164.1 |

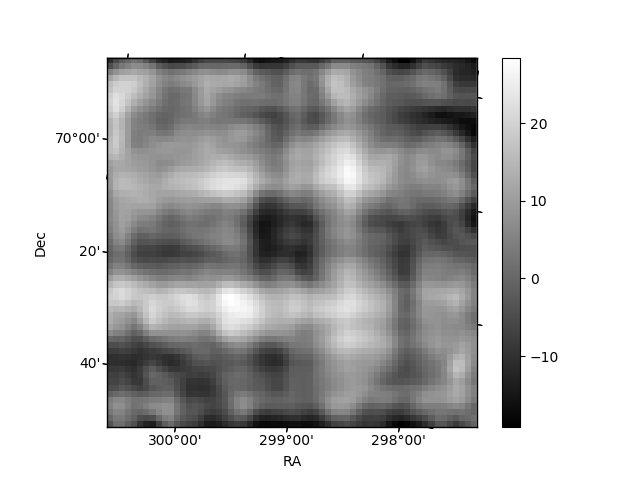

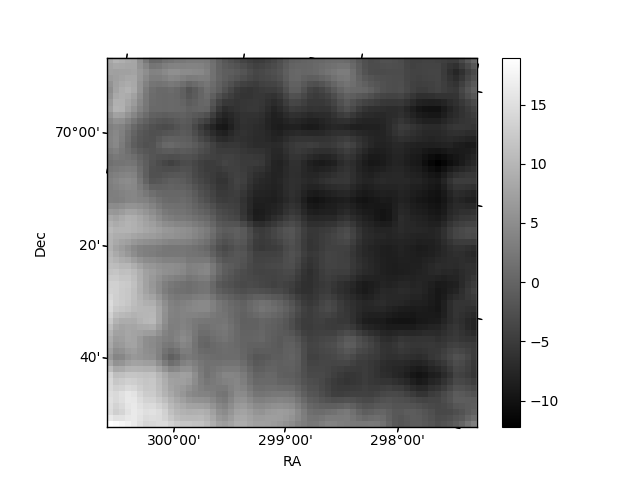

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

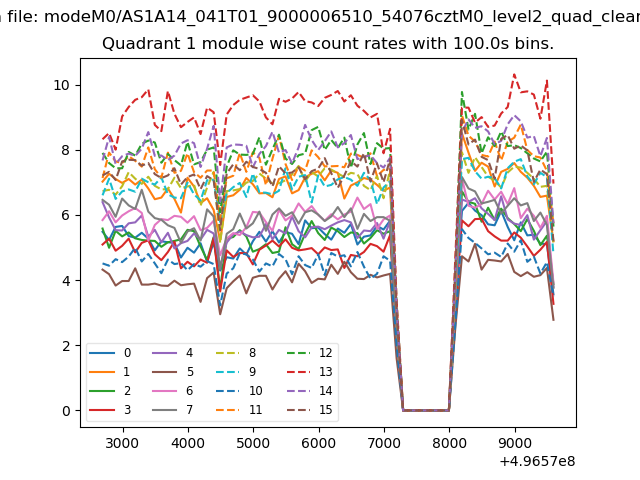

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

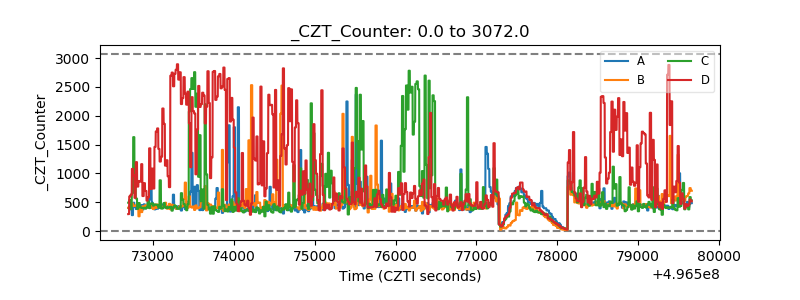

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

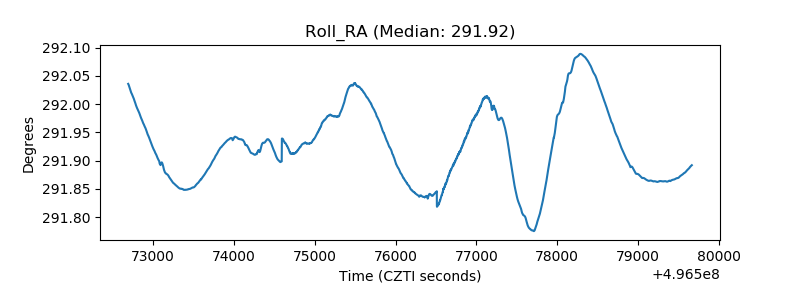

| _Roll_RA |  |

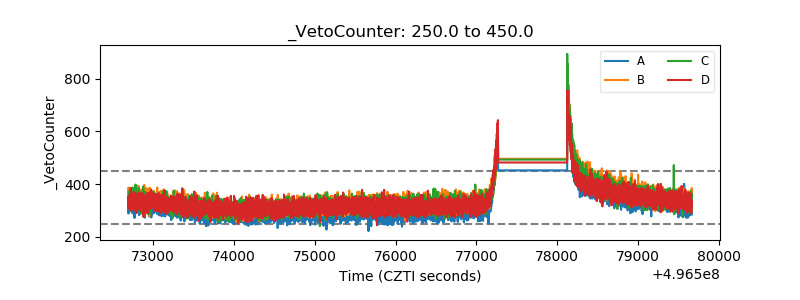

| Veto Counter |  |
