| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54112cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54112cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,498,880 | 100,658,880 |
| Size | 463.0 MB | 96.0 MB |
| Events in quadrant A | 3,248,434 | 664,890 |
| Events in quadrant B | 5,423,984 | 670,874 |
| Events in quadrant C | 3,296,335 | 637,241 |
| Events in quadrant D | 5,459,234 | 587,901 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14991 | 2 |
| B | 0 | 20888 | 2 |
| C | 0 | 15305 | 2 |
| D | 0 | 21039 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6995 | 112 | 1.601144% |
| B | 6995 | 637 | 9.106505% |
| C | 6994 | 145 | 2.073206% |
| D | 6994 | 255 | 3.645982% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

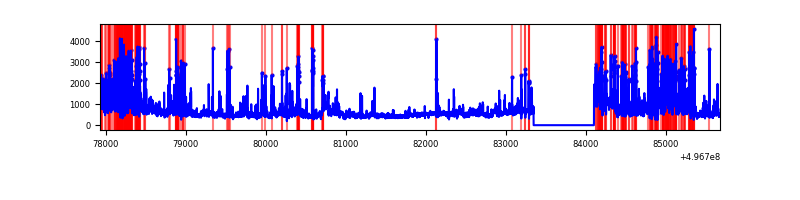

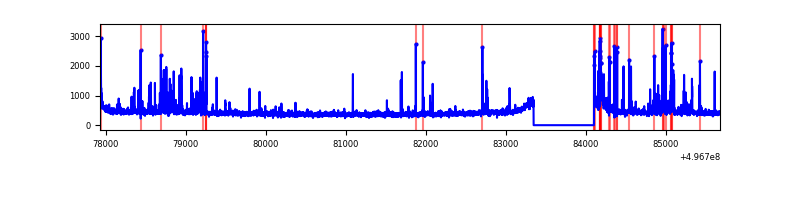

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7750 | 6996 | 29 | 29 | 0.37% | 0.41% |  |
| B | 7750 | 6996 | 341 | 341 | 4.40% | 4.87% |  |
| C | 7749 | 6995 | 37 | 37 | 0.48% | 0.53% |  |
| D | 7749 | 6995 | 157 | 157 | 2.03% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 114611 | 627.28 | 735 | 717 | 181.6 |
| A | 15 | 174 | 104773 | 573.09 | 735 | 717 | 181.6 |
| A | 8 | 246 | 34470 | 185.9 | 735 | 717 | 181.6 |
| B | 5 | 236 | 1291825 | 8619.78 | 709 | 684 | 149.8 |
| B | 14 | 167 | 355987 | 2372.04 | 709 | 684 | 149.8 |
| B | 0 | 213 | 235296 | 1566.29 | 709 | 684 | 149.8 |
| C | 15 | 157 | 143735 | 719.86 | 724 | 718 | 198.7 |
| C | 15 | 147 | 137539 | 688.68 | 724 | 718 | 198.7 |
| C | 12 | 250 | 39256 | 193.98 | 724 | 718 | 198.7 |
| D | 10 | 181 | 775847 | 3791.66 | 717 | 684 | 204.4 |
| D | 2 | 172 | 675628 | 3301.44 | 717 | 684 | 204.4 |
| D | 2 | 165 | 465282 | 2272.55 | 717 | 684 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

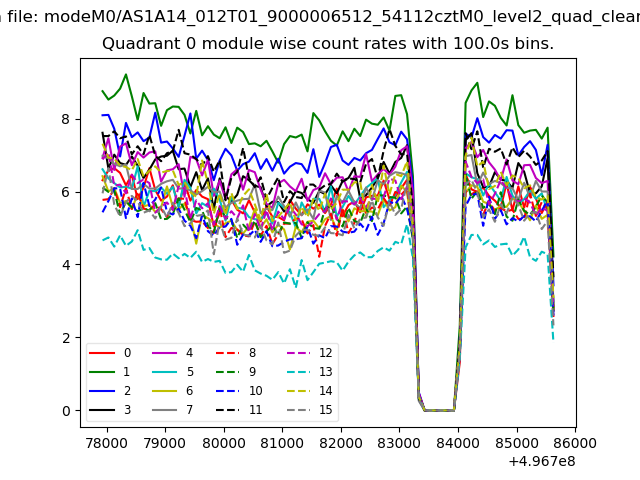

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

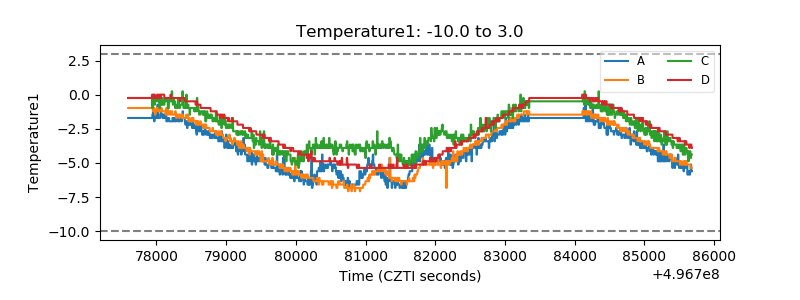

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

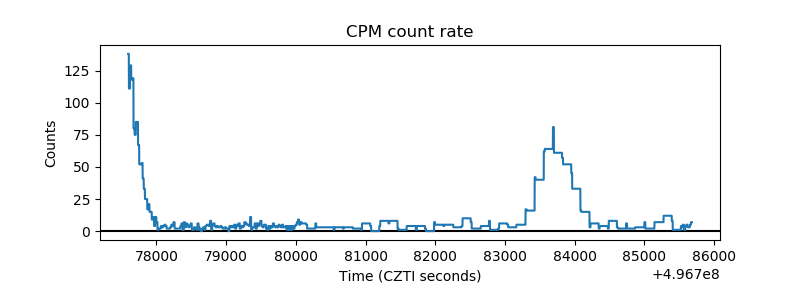

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

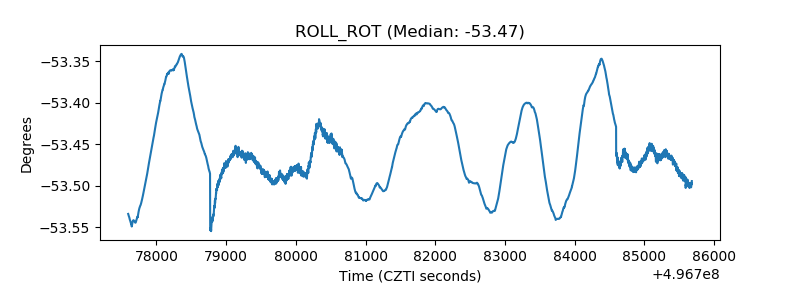

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
