| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54125cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54125cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,475,520 | 93,323,520 |
| Size | 476.3 MB | 89.0 MB |
| Events in quadrant A | 3,290,127 | 624,868 |
| Events in quadrant B | 3,658,557 | 666,054 |
| Events in quadrant C | 3,155,329 | 589,397 |
| Events in quadrant D | 7,885,324 | 496,706 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14433 | 1 |
| B | 0 | 15324 | 1 |
| C | 0 | 14309 | 1 |
| D | 0 | 27973 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6435 | 117 | 1.818182% |
| B | 6435 | 142 | 2.206682% |
| C | 6436 | 166 | 2.579242% |
| D | 6436 | 967 | 15.024860% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7520 | 6436 | 69 | 69 | 0.92% | 1.07% |  |
| B | 7520 | 6436 | 79 | 79 | 1.05% | 1.23% |  |
| C | 7521 | 6437 | 139 | 139 | 1.85% | 2.16% |  |
| D | 7521 | 6436 | 907 | 907 | 12.06% | 14.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 303147 | 1793.14 | 681 | 664 | 168.7 |
| A | 8 | 246 | 110890 | 653.43 | 681 | 664 | 168.7 |
| A | 0 | 8 | 88590 | 521.23 | 681 | 664 | 168.7 |
| B | 5 | 185 | 288752 | 2020.07 | 672 | 649 | 142.6 |
| B | 14 | 167 | 203452 | 1421.98 | 672 | 649 | 142.6 |
| B | 15 | 20 | 127216 | 887.44 | 672 | 649 | 142.6 |
| C | 1 | 241 | 372683 | 2052.92 | 662 | 656 | 181.2 |
| C | 14 | 254 | 54512 | 297.19 | 662 | 656 | 181.2 |
| C | 12 | 252 | 29170 | 157.35 | 662 | 656 | 181.2 |
| D | 7 | 70 | 3293639 | 18282.04 | 631 | 603 | 180.1 |
| D | 8 | 176 | 923833 | 5125.52 | 631 | 603 | 180.1 |
| D | 4 | 7 | 239268 | 1325.0 | 631 | 603 | 180.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

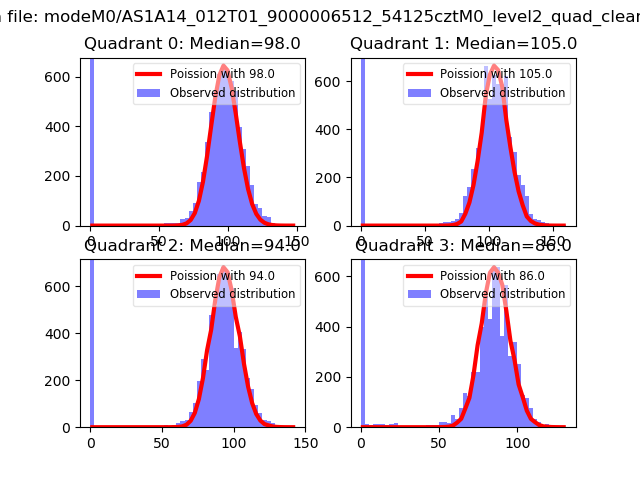

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

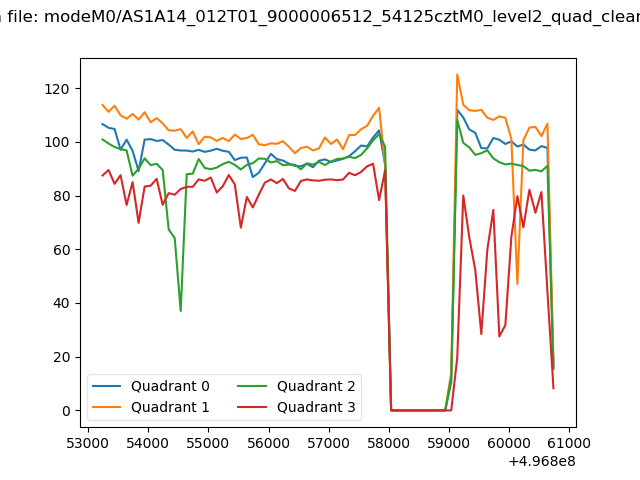

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

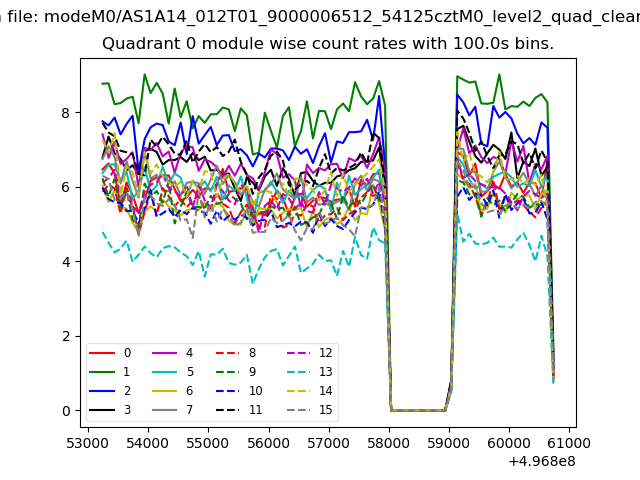

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

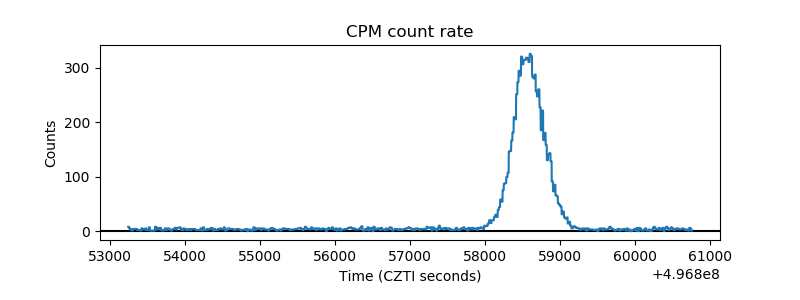

| _CPM_Rate |  |

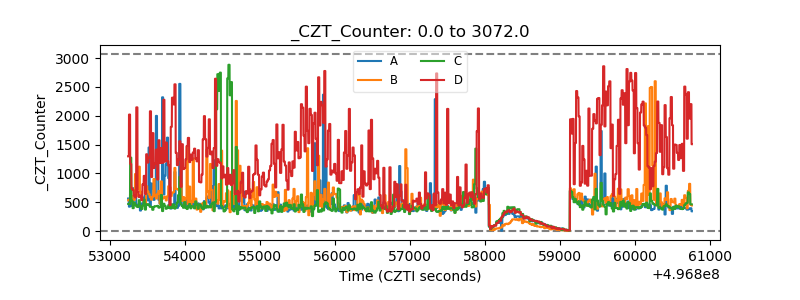

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
