| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54137cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54137cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,999,360 | 88,925,760 |
| Size | 447.3 MB | 84.8 MB |
| Events in quadrant A | 3,539,514 | 597,509 |
| Events in quadrant B | 4,064,653 | 629,862 |
| Events in quadrant C | 4,187,246 | 537,315 |
| Events in quadrant D | 5,093,020 | 499,725 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14471 | 2 |
| B | 0 | 16217 | 1 |
| C | 0 | 16950 | 1 |
| D | 0 | 19264 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6131 | 107 | 1.745229% |
| B | 6132 | 207 | 3.375734% |
| C | 6132 | 454 | 7.403783% |
| D | 6132 | 517 | 8.431181% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

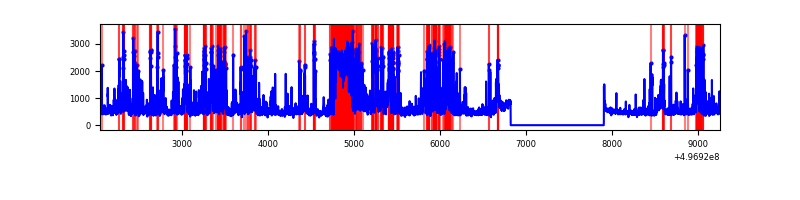

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7216 | 6131 | 56 | 56 | 0.78% | 0.91% |  |
| B | 7217 | 6132 | 122 | 122 | 1.69% | 1.99% |  |
| C | 7217 | 6133 | 430 | 430 | 5.96% | 7.01% |  |
| D | 7217 | 6132 | 535 | 535 | 7.41% | 8.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 158 | 299339 | 1849.45 | 648 | 631 | 161.5 |
| A | 15 | 174 | 270500 | 1670.89 | 648 | 631 | 161.5 |
| A | 3 | 14 | 251184 | 1551.3 | 648 | 631 | 161.5 |
| B | 15 | 20 | 555445 | 4107.8 | 633 | 611 | 135.1 |
| B | 0 | 213 | 283958 | 2097.81 | 633 | 611 | 135.1 |
| B | 5 | 236 | 208953 | 1542.49 | 633 | 611 | 135.1 |
| C | 13 | 3 | 1384193 | 8236.88 | 609 | 602 | 168.0 |
| C | 1 | 241 | 134146 | 795.02 | 609 | 602 | 168.0 |
| C | 9 | 237 | 92317 | 546.0 | 609 | 602 | 168.0 |
| D | 8 | 176 | 1634678 | 9352.48 | 611 | 584 | 174.7 |
| D | 7 | 70 | 584092 | 3339.61 | 611 | 584 | 174.7 |
| D | 10 | 181 | 189884 | 1083.43 | 611 | 584 | 174.7 |

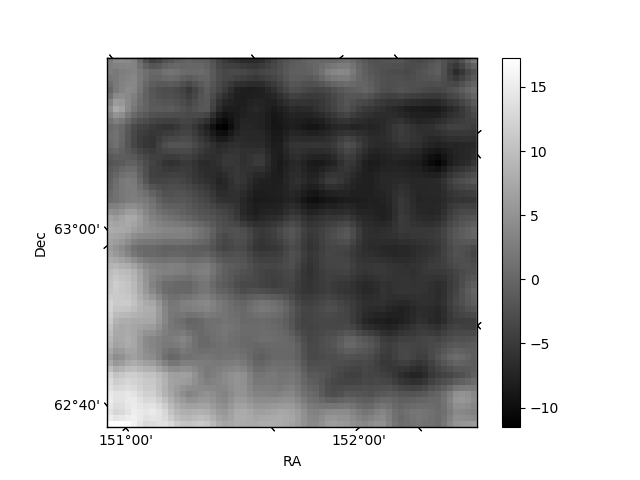

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

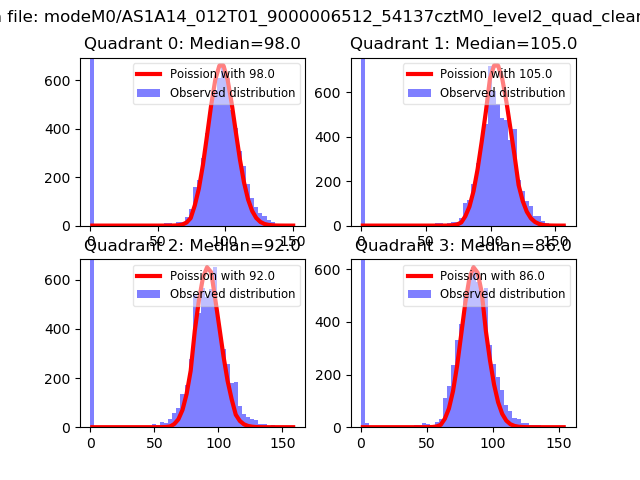

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

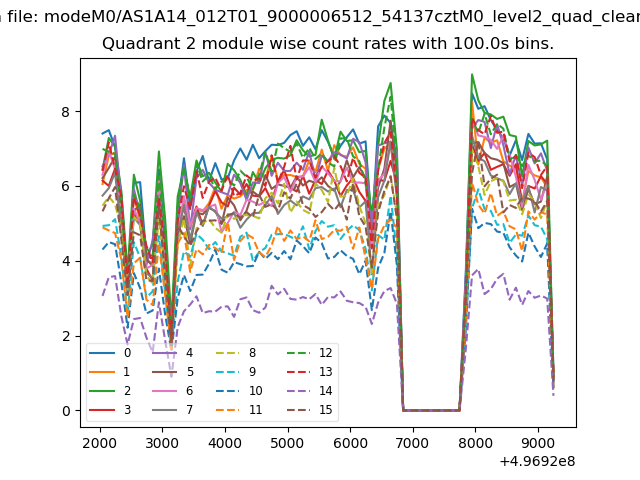

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

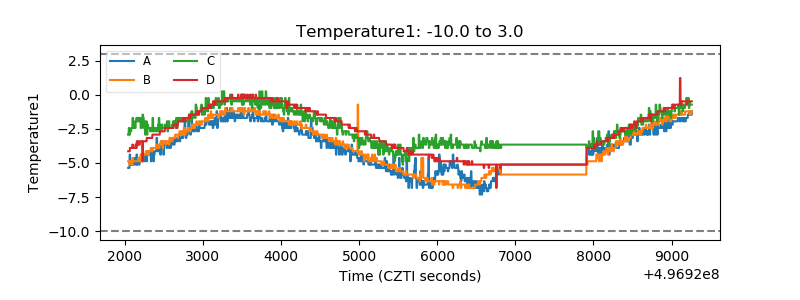

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

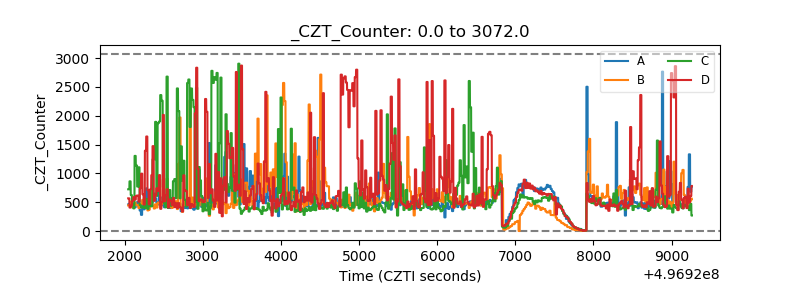

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

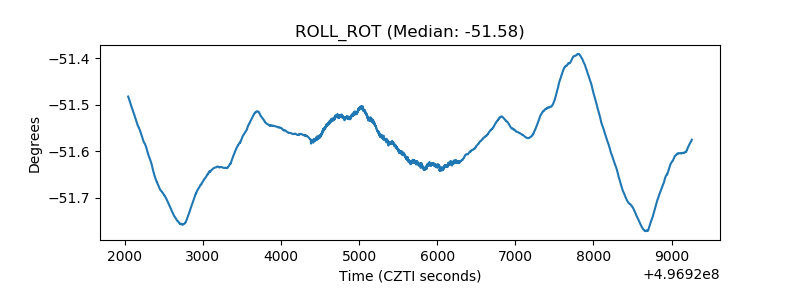

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

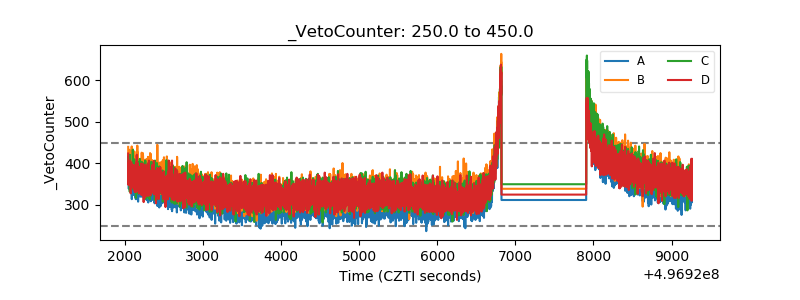

| Veto Counter |  |
